UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.71
17,51,550 in stock
TIDatasheet (PDF)

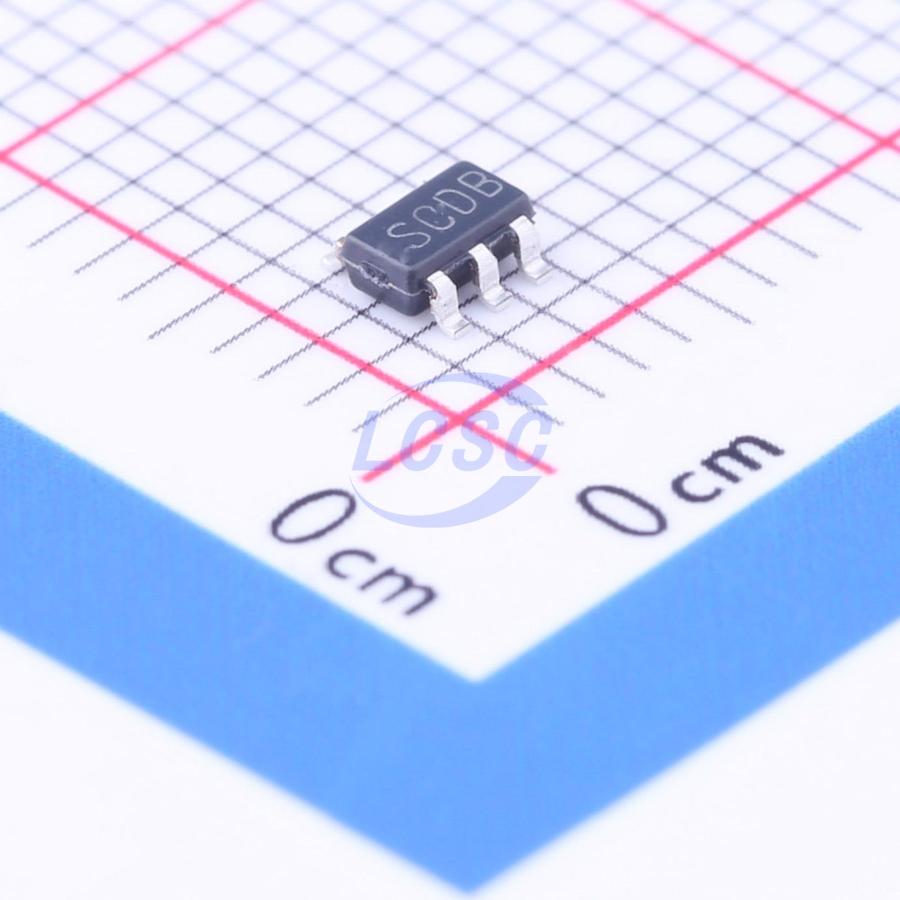

LP3990MFX-1.2/NOPB
1.2V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150mA, low IQ, low dropout regulator with enable functionality and low output voltage
- Manufacturer
- TI
- Manufacturer part #
- LP3990MFX-1.2/NOPB
- Store part #
- C205896
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C205896
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.84 | ₹74.84 |
| 10+ | ₹60.43 | ₹604.30 |
| 30+ | ₹53.14 | ₹1,594.20 |
| 100+ | ₹46.04 | ₹4,604.00 |
| 500+ | ₹39.15 | ₹19,575.00 |
| 1,000+ | ₹36.91 | ₹36,910.00 |
1 × ₹74.84
₹74.84
excl. GST
₹88.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3990MFX-1.2/NOPB
₹74.84 for 1 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 43uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 6V
- Features
- Enable control;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The LP3990 regulator is designed to meet the requirements of portable, battery-powered systems providing an accurate output voltage, low-noise, and low-quiescent current. The LP3990 will provide a 0.8-V output from the low input voltage of 2V at up to a 150-mA load current. When switched into shutdown mode via a logic signal at the enable pin (EN), the power consumption is reduced to virtually zero. The LP3990 is designed to be stable with spacesaving ceramic capacitors with values as low as 1 μF. Performance is specified for a -40°C to 125°C junction temperature range.
Applications
- Cellular Handsets
- Hand-Held Information Appliances
Key features
- 1% Voltage Accuracy at Room Temperature
- Stable with Ceramic Capacitor
- Logic Controlled Enable
- No Noise Bypass Capacitor Required
- Thermal-Overload and Short-Circuit Protection
- Input Voltage Range, 2V to 6V
- Output Voltage Range, 0.8V to 3.3V
- Output Current, 150 mA
- Output Stable - Capacitors, 1 μF
- Virtually Zero IQ (Disabled), <10 nA
- Very Low IQ (Enabled), 43 μA
- Low Output Noise, 150 μV RMS
- PSRR, 55 dB at 1 kHz
- Fast Start-Up, 105 μs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS79912DDCR#C2862206TI · SOT-23-5 | TI | SOT-23-5 | 6 | ₹67.58 · 6 in stock | View |
 | MIC5504-1.2YM5-TR-MS#C30197547MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,690 | ₹30.46 · 2,690 in stock | View |
 | XC6219B122MR-MS#C7473141MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,070 | ₹8.55 · 2,070 in stock | View |
 | XC6210B122MR-G#C793245TOREX · SOT-25 | TOREX | SOT-25 | 910 | ₹51.76 · 910 in stock | View |
 | ETA5050V12S2F#C6269867etasolution · SOT-23-5 | etasolution | SOT-23-5 | 4,910 | ₹9.71 · 4,910 in stock | View |
