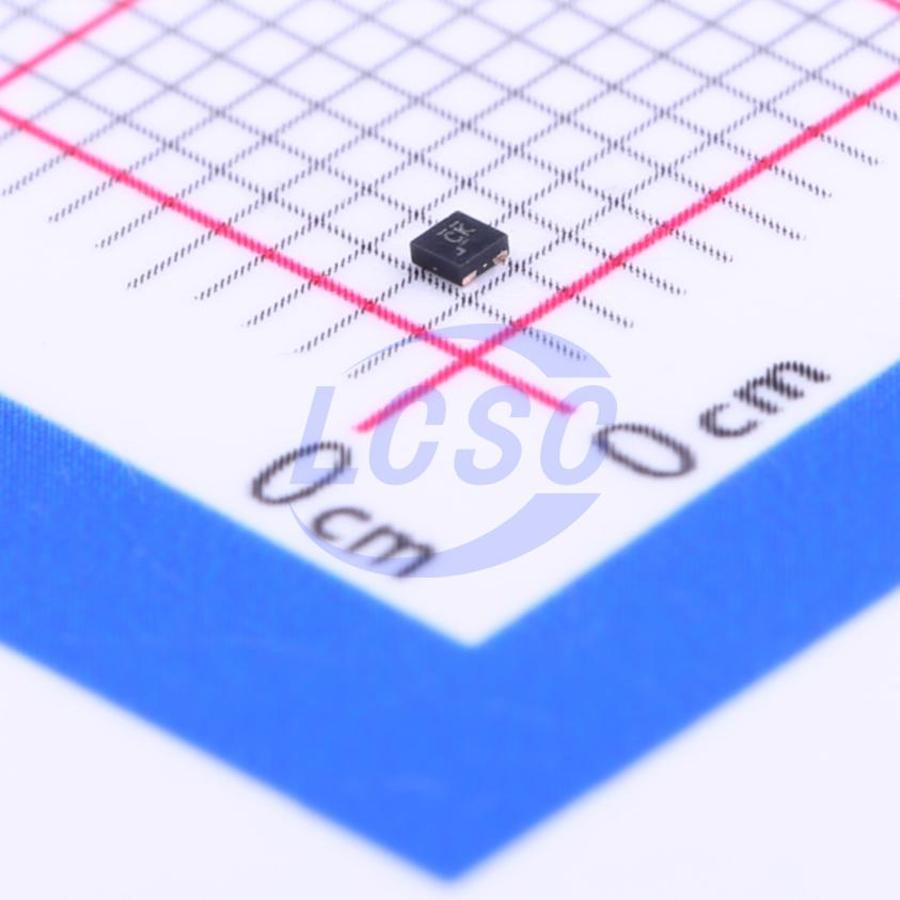

LP5907SNX-3.0/NOPB

3V Positive Fixed X2-SON-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

X2-SON-4-EP(1x1)ROHS3 CompliantActive

250mA, low noise, high PSRR, ultra-low dropout regulator with low IQ and enable functionality

Manufacturer: TI
Manufacturer part #: LP5907SNX-3.0/NOPB
Store part #: C182423
Package / case: X2-SON-4-EP(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,945 in stock

#C182423

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
5+	₹22.04	₹110.20
50+	₹16.60	₹830.00
150+	₹13.89	₹2,083.50
500+	₹11.85	₹5,925.00
3,000+	₹10.21	₹30,630.00
6,000+	₹9.41	₹56,460.00

Quantity (min 5, multiples of 5)

5 × ₹22.04

₹110.20

excl. GST

₹130.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP5907SNX-3.0/NOPB

₹110.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 12uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 250mA
Features: Enable control;Output discharge;Thermal shutdown;Short Circuit Protection;Input under-voltage protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.018 g

Overview

The LP5907 is a low-noise LDO that can supply up to 250 mA output current. Designed to meet the requirements of RF and analog circuits, the LP5907 device provides low noise, high PSRR, low quiescent current, and low line or load transient response figures. Using new innovative design techniques, the LP5907 offers class-leading noise performance without a noise bypass capacitor and the ability for remote output capacitor placement.

Applications

Mobile Phones, Tablets
Digital Cameras and Audio Devices
Portable and Battery-Powered Equipment
Portable Medical Equipment
Smart Meters and Field Transmitters
RF, PLL, VCO, and Clock Power Supplies
IP Cameras
Drones

Key features

Input Voltage Range: 2.2 V to 5.5 V
Output Voltage Range: 1.2 V to 4.5 V
Stable With 1 μF Ceramic Input and Output Capacitors
No Noise Bypass Capacitor Required
Remote Output Capacitor Placement
Thermal-Overload and Short-Circuit Protection
-40°C to 125°C Operating Junction Temperature
Low Output Voltage Noise: <6.5 μV RMS
PSRR: 82 dB at 1 kHz
Output Voltage Tolerance: ±2%
Very Low IQ (Enabled): 12 μA
Low Dropout: 120 mV (typical)
Create a Custom Design Using the LP5907 With the WEBENCH Power Designer

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
NCP163AMX300TBG#C603653onsemi · XDFN-4-EP(1x1)	onsemi	XDFN-4-EP(1x1)	70	₹41.81 · 70 in stock	View
MD57E30WB6#C920550Mingda Microelectronics · XDFN-4-EP(1x1)	Mingda Microelectronics	XDFN-4-EP(1x1)	8,070	₹10.57 · 8,070 in stock	View
LW5430N11E#C51953164Lewa Micro · DFN-4L(1x1)	Lewa Micro	DFN-4L(1x1)	10,000	₹44.19 · 10,000 in stock	View
LW5730N11E#C53426699Lewa Micro · DFN-4L(1x1)	Lewa Micro	DFN-4L(1x1)	9,990	₹35.96 · 9,990 in stock	View
XC6232B302DR(UMW)#C53463885UMW · DFN-4(1x1)	UMW	DFN-4(1x1)	6,470	₹6.28 · 6,470 in stock	View
