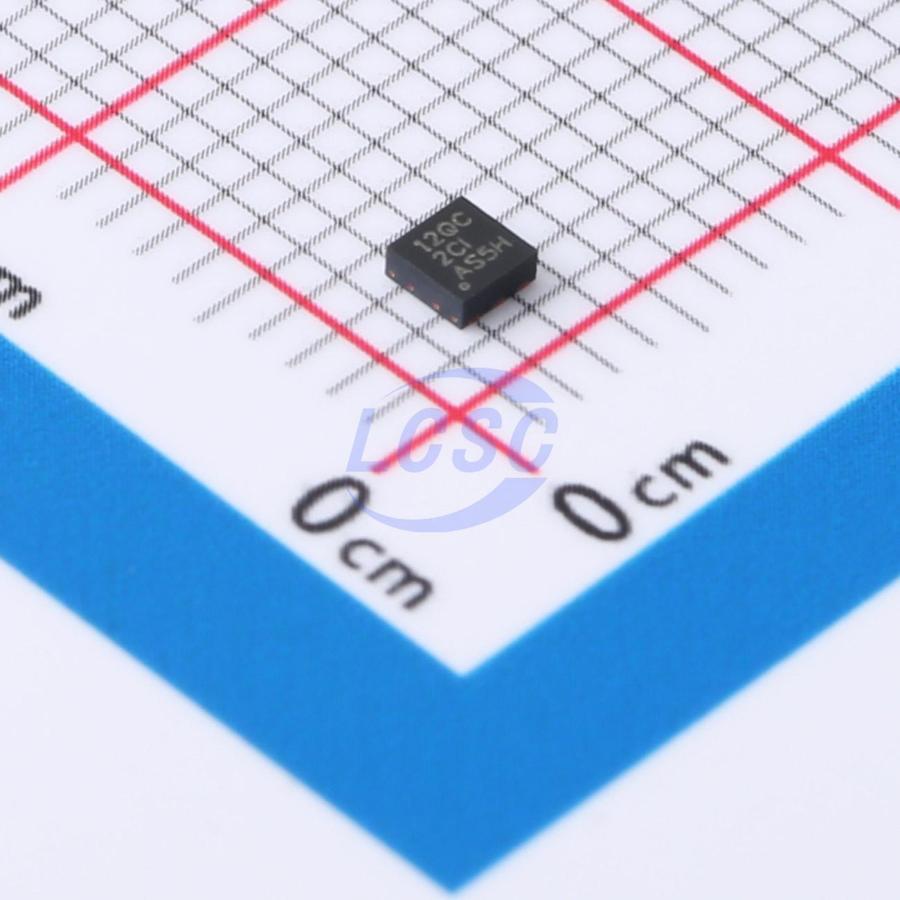

LP5912Q1.5DRVRQ1

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA WSON-6(2x2)

WSON-6(2x2)ROHS3 CompliantActive

Automotive 500mA, low-noise, low IQ, low-dropout regulator with reverse current protection

Manufacturer: TI
Manufacturer part #: LP5912Q1.5DRVRQ1
Store part #: C5220611
Package / case: WSON-6(2x2)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

18 in stock

#C5220611

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹265.02	₹265.02
10+	₹233.39	₹2,333.90
30+	₹210.99	₹6,329.70
100+	₹190.66	₹19,066.00
500+	₹181.21	₹90,605.00
1,000+	₹177.51	₹1,77,510.00

Quantity (min 1)

1 × ₹265.02

₹265.02

excl. GST

₹312.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP5912Q1.5DRVRQ1

₹265.02 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 30uA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 6.5V
Output Type: Fixed
Features: Enable control;Built-in soft-start;Operating status indication;Reverse-polarity current protection;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.02 g

Overview

LP5912-Q1 is a low-noise LDO capable of delivering up to 500mA output current. Designed to meet the requirements of RF and analog circuits, the LP5912-Q1 features low noise, high PSRR, low quiescent current, and low line/load transient response. The LP5912-Q1 delivers excellent noise performance without a noise bypass capacitor and supports remote placement of the output capacitor. This device is optimized for use with 1μF input and 1μF output ceramic capacitors (no separate noise bypass capacitor required). Fixed output voltage ranges from 0.8V to 5.5V in 25mV increments.

Applications

Automotive infotainment
In-vehicle communication systems
ADAS cameras and radar
Navigation systems

Key features

Automotive electronics applications, AEC-Q100 qualified with the following results: Device Temperature Grade 1: ambient operating temperature range –40°C to +125°C; Device HBM classification Level 2; Device CDM classification Level C6
Input voltage range: 1.6V to 6.5V
Output voltage range: 0.8V to 5.5V
Output current up to 500mA
Low output voltage noise: 12μVRMS typical
PSRR at 1kHz: 75dB (typical)
Output voltage tolerance (VOUT ≥ 3.3V): ±2%
Low IQ (enabled, no load): 30μA (typical)
Low dropout (VOUT ≥ 3.3V): 95mV typical at 500mA load
Stable with 1μF ceramic input and output capacitors
Thermal overload protection and short-circuit protection
Reverse current protection
No noise bypass capacitor required
Automatic output discharge for fast turn-off
Power-good output with 140μs typical delay
Internal soft-start limits inrush current
Operating junction temperature range: –40°C to +125°C
