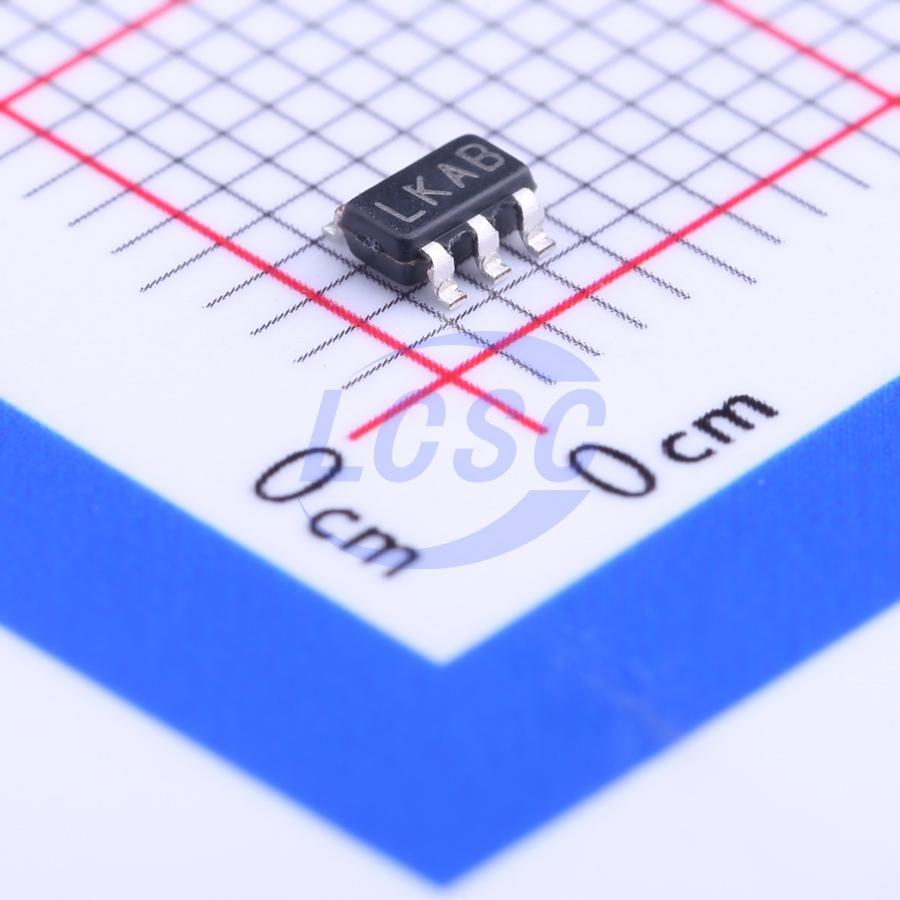

LP5951MF-1.5/NOPB

1.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

150mA, low IQ, low dropout voltage regulator with enable function

Manufacturer: TI
Manufacturer part #: LP5951MF-1.5/NOPB
Store part #: C130191
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2 in stock

#C130191

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹241.38	₹241.38
10+	₹214.47	₹2,144.70
30+	₹195.74	₹5,872.20
100+	₹178.51	₹17,851.00
500+	₹170.55	₹85,275.00
1,000+	₹167.31	₹1,67,310.00

Quantity (min 1)

1 × ₹241.38

₹241.38

excl. GST

₹284.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

LP5951MF-1.5/NOPB

₹241.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 29uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 150mA
Features: Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The LP5951 regulator is designed to meet the requirements of portable battery-powered systems providing a regulated output voltage and low quiescent current. When switched to shutdown mode via a logic signal at the Enable (EN) pin, the power consumption is reduced to virtually zero. The LP5951 is designed to be stable with small 1-μF ceramic capacitors. The device also features internal protection against short-circuit currents and overtemperature conditions. Performance is specified for a -40°C to 125°C temperature range. The device is available in fixed output voltages in the range of 1.3 V to 3.7 V.

Key features

Input Voltage Range: 1.8 V to 5.5 V
Output Voltage Range: 1.3 V to 3.7 V
Excellent Line Transient Response: ±2 mV (typical)
Excellent PSRR: –60 dB at 1 kHz typical
Low Quiescent Current of 29 μA typical
Small SC70-5 and SOT-23-5 Packages
Fast Turnon Time of 30 μs typ.
Typical <1 nA Quiescent Current in Shutdown
Ensured 150-mA Output Current
Logic Controlled Enable 0.4 V/0.9 V
Good Load Transient Response of 50 mVpp (typical)
Thermal Overload and Short-Circuit Protection
-40°C to 125°C Junction Temperature Range

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
H7211-15M5R#C411014Siproin · SOT-23-5	Siproin	SOT-23-5	2,190	₹8.15 · 2,190 in stock	View
ADP121-AUJZ15R7#C658717ADI · TSOT-5	ADI	TSOT-5	82	₹150.37 · 82 in stock	View
RY6212-15M5R#C48580215RYCHIP Semiconductor Inc. · SOT-23-5	RYCHIP Semiconductor Inc.	SOT-23-5	2,800	₹3.63 · 2,800 in stock	View
TLV70015DDCR#C2865100TI · SOT-23-5	TI	SOT-23-5	145	₹32.28 · 145 in stock	View
TLV70015DDCT#C2865565TI · TSOT-23-5	TI	TSOT-23-5	190	₹21.46 · 190 in stock	View
