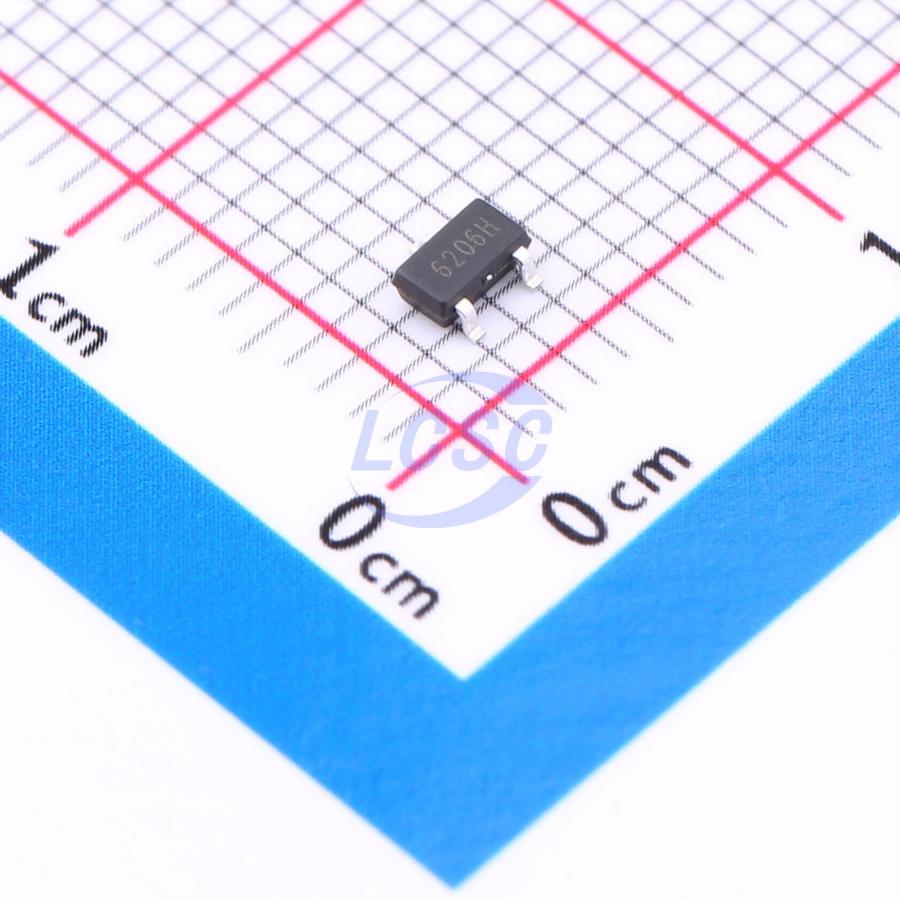

LR6206A-T36

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L

SOT-23-3LROHS CompliantActive

Low-power linear voltage regulator

Manufacturer: LR
Manufacturer part #: LR6206A-T36
Store part #: C5260333
Package / case: SOT-23-3L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,830 in stock

#C5260333

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹5.95	₹59.50
100+	₹4.75	₹475.00
300+	₹4.14	₹1,242.00
3,000+	₹3.52	₹10,560.00
6,000+	₹3.16	₹18,960.00
9,000+	₹2.98	₹26,820.00

Quantity (min 10, multiples of 10)

10 × ₹5.95

₹59.50

excl. GST

₹70.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LR6206A-T36

₹59.50 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.6V
Number of Outputs: 1
Operating Temperature: -10℃~+85℃
Supply Current (Iq): 8uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 6.5V
Features: Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.047 g

Overview

The LR6206A series is a low-power linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages in the range of 1.2V to 5.0V. An integrated short-circuit protection circuit ensures safe operation and extended service life.
