DIODESDatasheet (PDF)

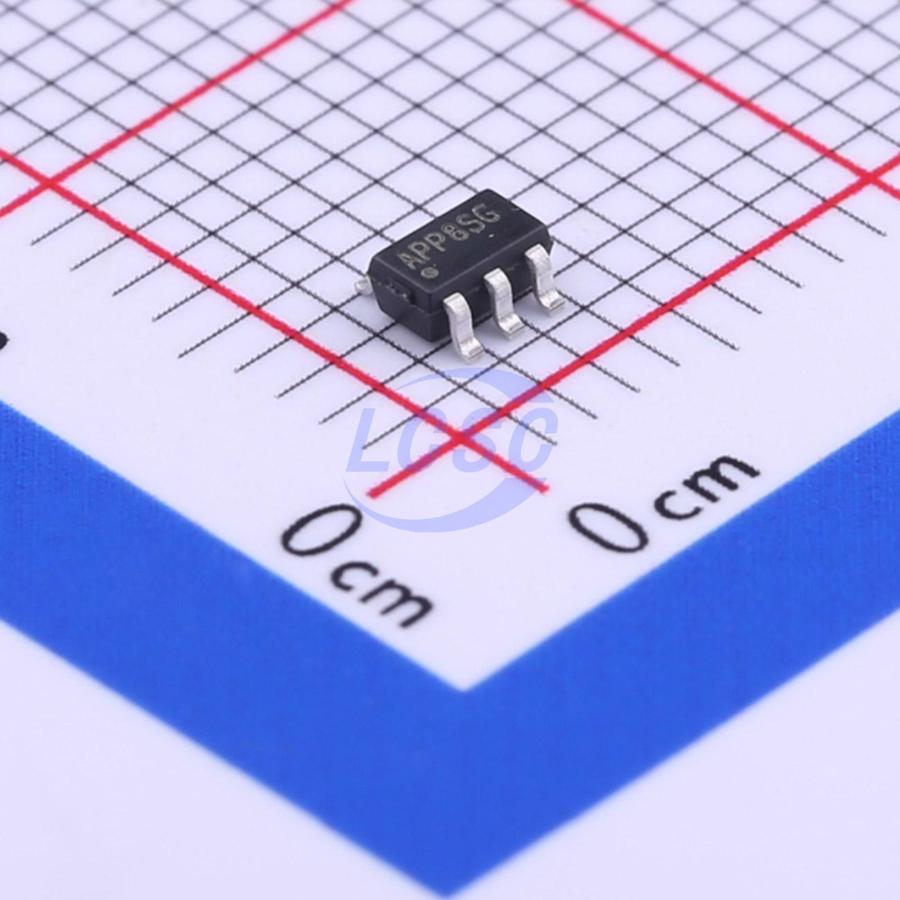

LSP2015CAAD150
1.5V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantDiscontinued
300mA CMOS LDO
- Manufacturer
- DIODES
- Manufacturer part #
- LSP2015CAAD150
- Store part #
- C388243
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C388243
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.21 | ₹61.05 |
| 50+ | ₹9.76 | ₹488.00 |
| 150+ | ₹8.55 | ₹1,282.50 |
| 500+ | ₹7.63 | ₹3,815.00 |
| 3,000+ | ₹6.89 | ₹20,670.00 |
| 6,000+ | ₹6.54 | ₹39,240.00 |
5 × ₹12.21
₹61.05
excl. GST
₹72.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LSP2015CAAD150
₹61.05 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The LSP2015 is a low dropout linear regulator (LDO) family with 300mA output current. The output voltage can be fixed or adjustable, and are stable with 1.0uF or higher value ceramic capacitors. The LSP2015 family provides several protections, such as over current protection (OCP), short circuit protection (SCP) and over temperature protection (OTP) to protect themselves from fault application conditions. This family of LDOs have many different packages and pin assignments.
Applications
- Portable Electronics
- Wireless Applications
- Battery Power Devices
Key features
- Operating Input Voltage: 2.2V~5.5V
- Has Fixed Output Voltage (Fixed-VOUT) And Adjustable Output Voltage (Adj-VOUT) Options
- Fixed Output voltage range: 1.0V to 4.1V by 0.1V steps
- Output current is up to 300 mA
- Built-in Over Current Protection (OCP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP)
- Package: SOT23-3L, SOT23-5L, SC82-4L, SC70-5L, SOT89-3L and TO92-3L Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6219B152MR-MS#C7434200MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 1,560 | ₹4.70 · 1,560 in stock | View |
 | LP3984-15B5F#C517242LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 440 | ₹7.89 · 440 in stock | View |
 | TPL730F15-5TR#C392265373PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 85 | ₹22.93 · 85 in stock | View |
 | NCP115ASN150T2G#C892049onsemi · TSOP-5 | onsemi | TSOP-5 | 495 | ₹14.47 · 495 in stock | View |
 | TMI6030-15#C883394TMI · SOT-23-5 | TMI | SOT-23-5 | 3,005 | ₹3.85 · 3,005 in stock | View |
