ADI

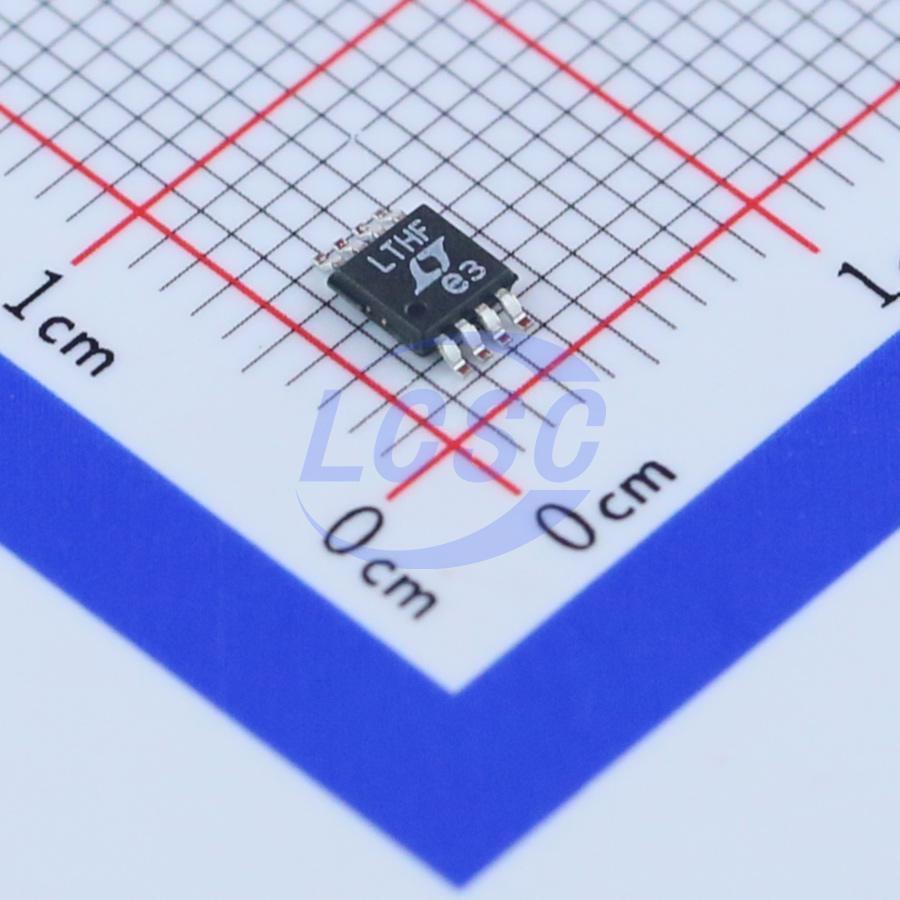

LT1762EMS8#PBF

1.22V~20V Positive Adjustable MSOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

MSOP-8ROHS3 CompliantActive

ADJ Input 20V Output 1.22V~20V 150mA

Manufacturer: ADI
Manufacturer part #: LT1762EMS8#PBF
Store part #: C107749
Package / case: MSOP-8
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11 in stock

#C107749

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹745.40	₹745.40
10+	₹646.58	₹6,465.80
50+	₹552.75	₹27,637.50
100+	₹493.24	₹49,324.00
500+	₹465.88	₹2,32,940.00
1,000+	₹453.50	₹4,53,500.00

Quantity (min 1)

1 × ₹745.40

₹745.40

excl. GST

₹879.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

LT1762EMS8#PBF

₹745.40 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.22V~20V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 25uA
Output Configuration: Positive
Operating Voltage: 20V
Output Current: 150mA
Features: Noise bypass terminal;Reverse polarity voltage protection;Reverse-polarity current protection;Over Current Protection;Thermal shutdown
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.16 g

Overview

The LT1762 series are micropower, low noise, low dropout regulators. The devices are capable of supplying 150mA of output current with a dropout voltage of 270mV. Designed for use in battery-powered systems, the low 25µA quiescent current makes them an ideal choice. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. A key feature of the LT1762 regulators is low output noise. With the addition of an external 0.01µF bypass capacitor, output noise drops to 20µVRMS over a 10Hz to 100kHz bandwidth. The LT1762 regulators are stable with output capacitors as low as 2.2µF. Small ceramic capacitors can be used without the series resistance required by other regulators. Internal protection circuitry includes reverse battery protection, current limiting, thermal limiting and reverse current protection. The parts come in fixed output voltages of 2.5V, 3V, 3.3V and 5V, and as an adjustable device with a 1.22V reference voltage. The LT1762 regulators are available in the 8 - lead MSOP package.

Applications

Cellular Phones
Battery - Powered Systems
Frequency Synthesizers
Noise - Sensitive Instrumentation Systems

Key features

Low Noise: 2µVRMS (10Hz to 100kHz)
Low Quiescent Current: 25µA
Wide Input Voltage Range: 1.8V to 20V
Output Current: 150mA
Very Low Shutdown Current: < 1µA
Low Dropout Voltage: 270mV
No Protection Diodes Needed
Fixed Output Voltages: 2.5V, 3V, 3.3V, 5V
Adjustable Output from 1.22V to 20V
Stable with 2.2µF Output Capacitor
Stable with Aluminum, Tantalum or Ceramic Capacitors
Reverse Battery Protection
No Reverse Current
Overcurrent and Overtemperature Protected
8 - Lead MSOP Package

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LT1962EMS8#PBF#C136801ADI · MSOP-8	ADI	MSOP-8	52	₹1,133.97 · 52 in stock	View
LT1962IMS8#PBF#C665668ADI · MSOP-8	ADI	MSOP-8	9	₹734.41 · 9 in stock	View
LT1962IMS8#TRPBF#C665669ADI · MSOP-8	ADI	MSOP-8	22	₹909.76 · 22 in stock	View
GM1400ARHZ-R7#C22358803GONGMOSEMI · MSOP-8	GONGMOSEMI	MSOP-8	1,674	₹305.04 · 1,674 in stock	View
LT1762EMS8#TRPBF#C579840ADI · MSOP-8	ADI	MSOP-8	On request	₹503.94 · 0 in stock	View
