ADIDatasheet (PDF)

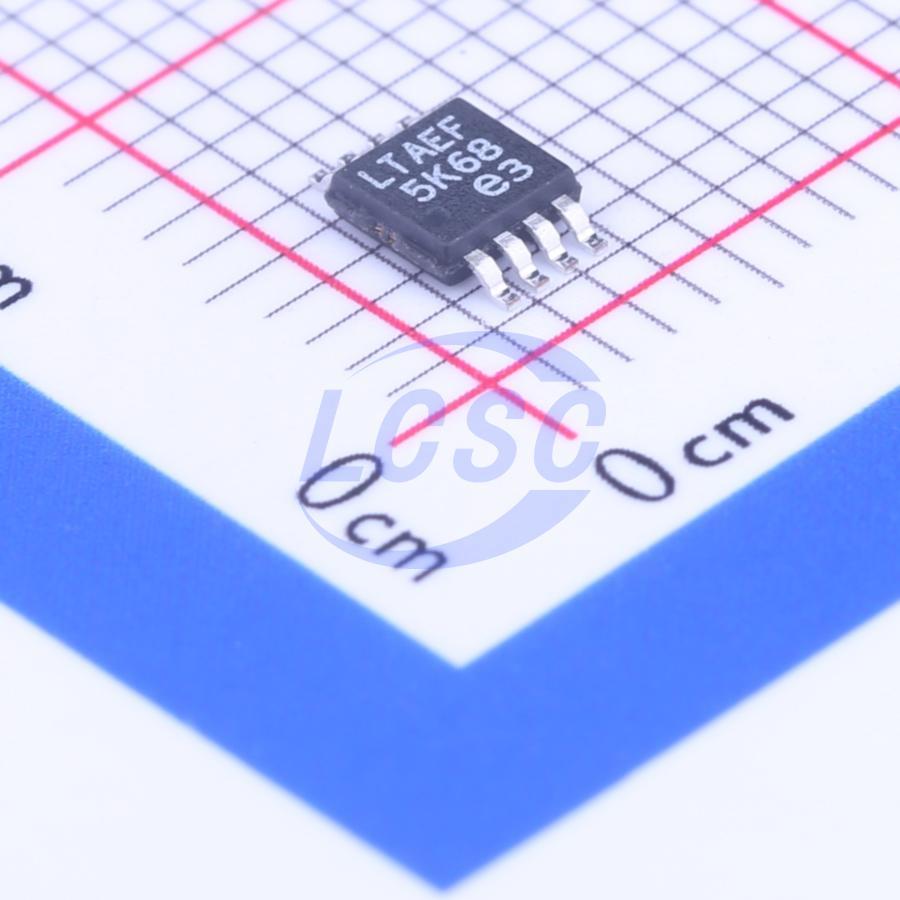

LT3010EMS8E-5#PBF
5V Positive Fixed MSOP-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
MSOP-8-EPROHS3 CompliantActive
Input 80V Output 5V 50mA
- Manufacturer
- ADI
- Manufacturer part #
- LT3010EMS8E-5#PBF
- Store part #
- C117343
- Package / case
- MSOP-8-EP
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C117343
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹724.05 | ₹724.05 |
| 10+ | ₹707.53 | ₹7,075.30 |
| 50+ | ₹696.65 | ₹34,832.50 |
| 100+ | ₹685.57 | ₹68,557.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
Specifications
- Output Voltage
- 5V
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Operating Voltage
- 80V
- Output Current
- 50mA
- Features
- Reverse polarity voltage protection;Reverse-polarity current protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.333 g
Overview
The ±300 is a high voltage, micropower low dropout linear regulator. The device is capable of supplying 50mA output current with a dropout voltage of 300mV. Designed for use in battery-powered or high voltage systems, the low quiescent current (30μA operating and 1μA in shutdown) makes the LT3010 an ideal choice. Quiescent current is also well controlled in dropout.
Applications
- Low Current High Voltage Regulators
- Regulator for Battery - Powered Systems
- Telecom Applications
- Automotive Applications
Key features
- Wide Input Voltage Range: 3V to 80V
- Low Quiescent Current: 30µA
- Low Dropout Voltage: 300mV
- Output Current: 50mA
- Thermally Enhanced 8-Lead MSOP Package
- No Protection Diodes Needed
- Fixed Output Voltage: 5V (LT3010 - 5)
- Adjustable Output from 1.275V to 60V (LT3010)
- 1µA Quiescent Current in Shutdown
- Stable with 1µF Output Capacitor
- Stable with Aluminum, Tantalum or Ceramic Capacitors
- Reverse-Battery Protection
- No Reverse Current Flow from Output
- Thermal Limiting
- The ability to operate with very small output capacitors
- Internal protection circuitry includes reverse - battery protection, current limiting, thermal limiting and reverse current protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT3010EMS8E-5#TRPBF#C579991ADI · MSOP-8-EP | ADI | MSOP-8-EP | 6 | ₹803.88 · 6 in stock | View |
 | MIC5282-5.0YMME-TR#C628204MICROCHIP · MSOP-8-EP | MICROCHIP | MSOP-8-EP | 7 | ₹501.09 · 7 in stock | View |
 | LT3010HMS8E-5#PBF#C117296ADI · MSOP-8-EP | ADI | MSOP-8-EP | On request | ₹359.38 · 0 in stock | View |
 | LT3010MPMS8E-5#PBF#C579993ADI · MSOP-8-EP | ADI | MSOP-8-EP | On request | ₹922.53 · 0 in stock | View |
| LT3010MPMS8E-5#TRPBF#C666215ADI · MSOP-8-EP | ADI | MSOP-8-EP | On request | ₹1,124.54 · 0 in stock | View | |
