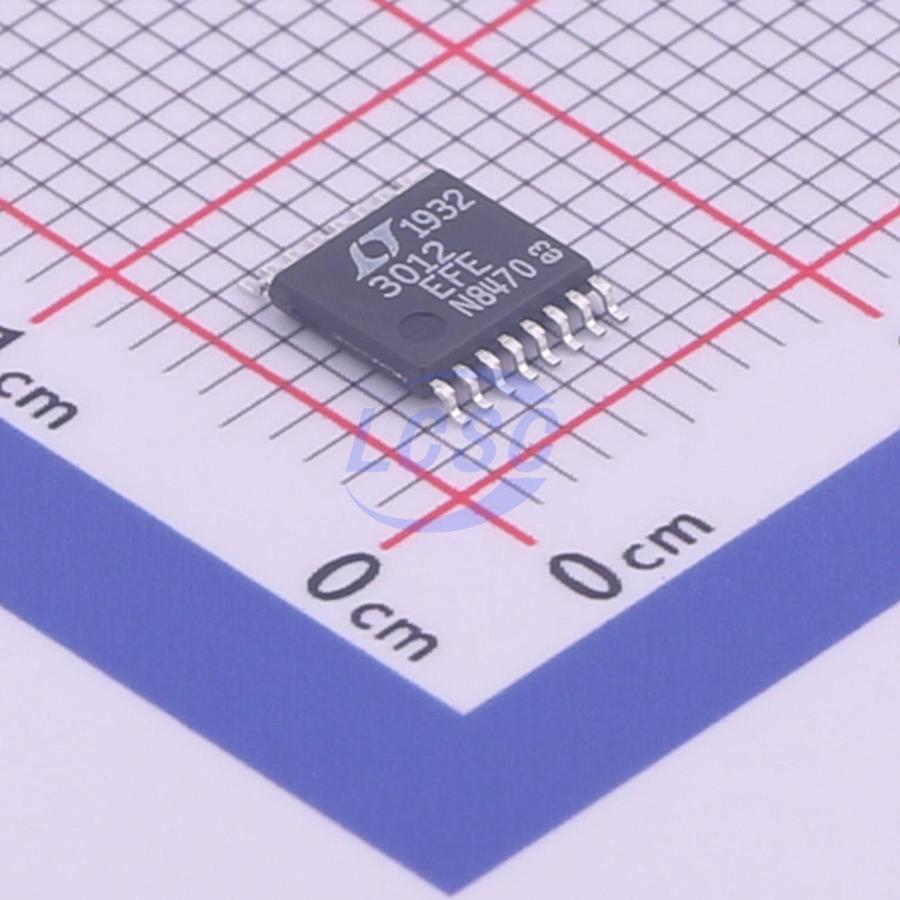

LT3012EFE#TRPBF

The ±3012 is a high voltage, micropower low dropout linear regulator. The device is capable of supplying 250mA of output current with a dropout voltage of 400mV. Designed for use in battery-powered or high voltage systems, the low quiescent current (40μA operating and 1μA in shutdown) makes the LT3012 an ideal choice. Quiescent current is also well controlled in dropout. Other features of the LT3012 include the ability to operate with very small output capacitors. The regulator is stable with only 3.3μF on the output while most older devices require between 10μF and 100μF for stability. Small ceramic capacitors can be used without any need for series resistance (ESR) as is common with other regulators. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting and reverse current protection. The device is available with an adjustable output with a 1.24V reference voltage. The LT3012 regulator is available in the 16-lead TSSOP and 12 pin low profile (0.75mm) (4mm×3mm) DFN packages with an exposed pad for enhanced thermal handling capability.

Applications

• Low Current High Voltage Regulators
• Regulator for Battery-Powered Systems
• Telecom Applications
• Automotive Applications

Key features

• Wide Input Voltage Range: 4V to 80V
• Low Quiescent Current: 40μA
• Low Dropout Voltage: 400mV
• Output Current: 250mA
• No Protection Diodes Needed
• Adjustable Output from 1.24V to 60V
• 1μA Quiescent Current in Shutdown
• Stable with 3.3μF Output Capacitor
• Stable with Aluminum, Tantalum or Ceramic Capacitors
• Reverse-Battery Protection
• No Reverse Current Flow from Output to Input
• Thermal Limiting
• Thermally Enhanced 16-Lead TSSOP and 12-Pin (4mm×3mm) DFN Packages
