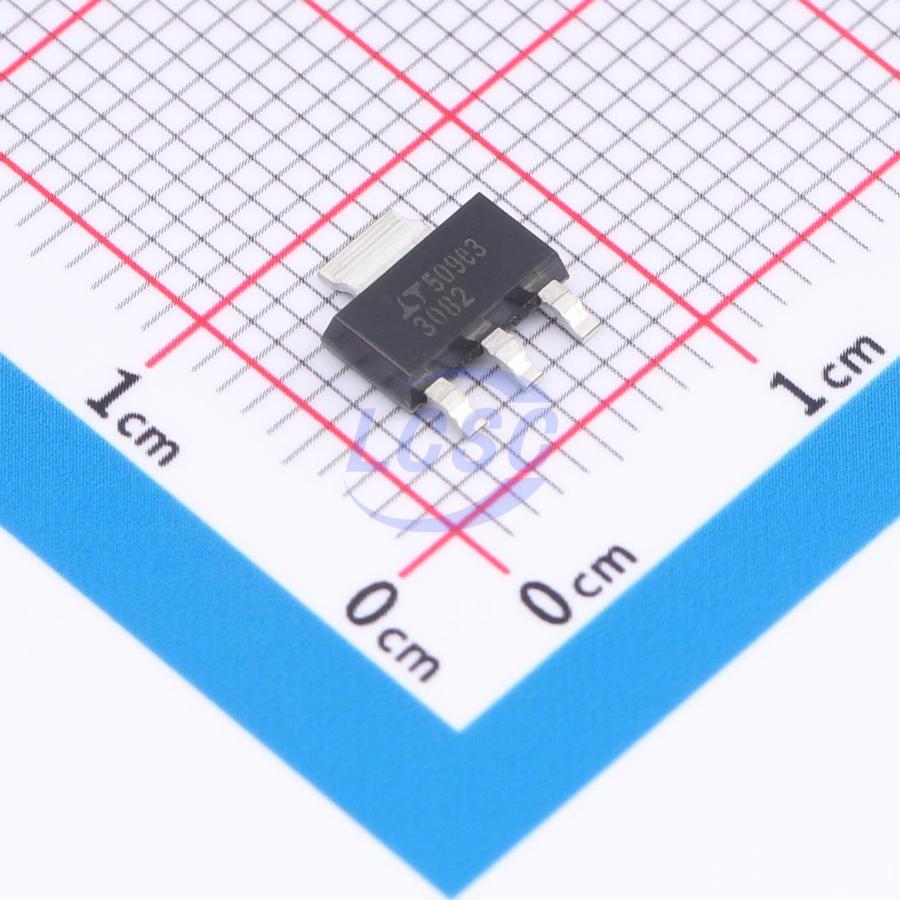

LT3082IST#PBF
0V~38.5V Positive Adjustable SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS3 CompliantActive
200mA Single Resistor Low Dropout Linear Regulator
- Manufacturer
- ADI
- Manufacturer part #
- LT3082IST#PBF
- Store part #
- C670343
- Package / case
- SOT-223-4
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C670343
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹923.08 | ₹923.08 |
| 10+ | ₹901.57 | ₹9,015.70 |
| 30+ | ₹887.01 | ₹26,610.30 |
| 100+ | ₹872.66 | ₹87,266.00 |
1 × ₹923.08
₹923.08
excl. GST
₹1,089.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 78 per tube
LT3082IST#PBF
₹923.08 for 1 + GST
Specifications
- Output Voltage
- 0V~38.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 40V
- Features
- Reverse polarity voltage protection;Reverse-polarity current protection;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 78 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The ±Γ⊖3082 is a 200mA low dropout linear regulator that can be paralleled to increase output current or spread heat in surface mounted boards. Architected as a precision current source and voltage follower, this regulator benefits many applications requiring high current, adjustability to zero and no heat sink. The LT3082 withstands reverse input voltages and reverse output-to-input voltages without reverse-current flow.
Applications
- All-Surface Mount Power Supply Post Regulator for Switching Supplies
- Low Parts Count Variable Voltage Supply
- Low Output Voltage Supply
- Battery Powered Regulator
Key features
- Outputs May Be Paralleled for Higher Output Current or Heat Spreading
- Maximum Output Current: 200mA
- Wide Input Voltage Range: 1.2V to 40V
- Output Adjustable to 0V
- Stable with Minimum 2.2μF Ceramic Capacitors
- Single Resistor Sets Output Voltage
- Initial Set Pin Current Accuracy: 1%
- Low Output Noise: 33μVRMS (10Hz to 100kHz)
- Reverse-Battery Protection
- Reverse-Current Protection
- <1mV Load Regulation Typical
- <0.001 %/V Line Regulation Typical
- Current Limit and Thermal Shutdown Protection
- Available in 8-Lead SOT-23, 3-Lead SOT-223 and 8-Lead 3mm × 3mm DFN Packages
