ADIDatasheet (PDF)

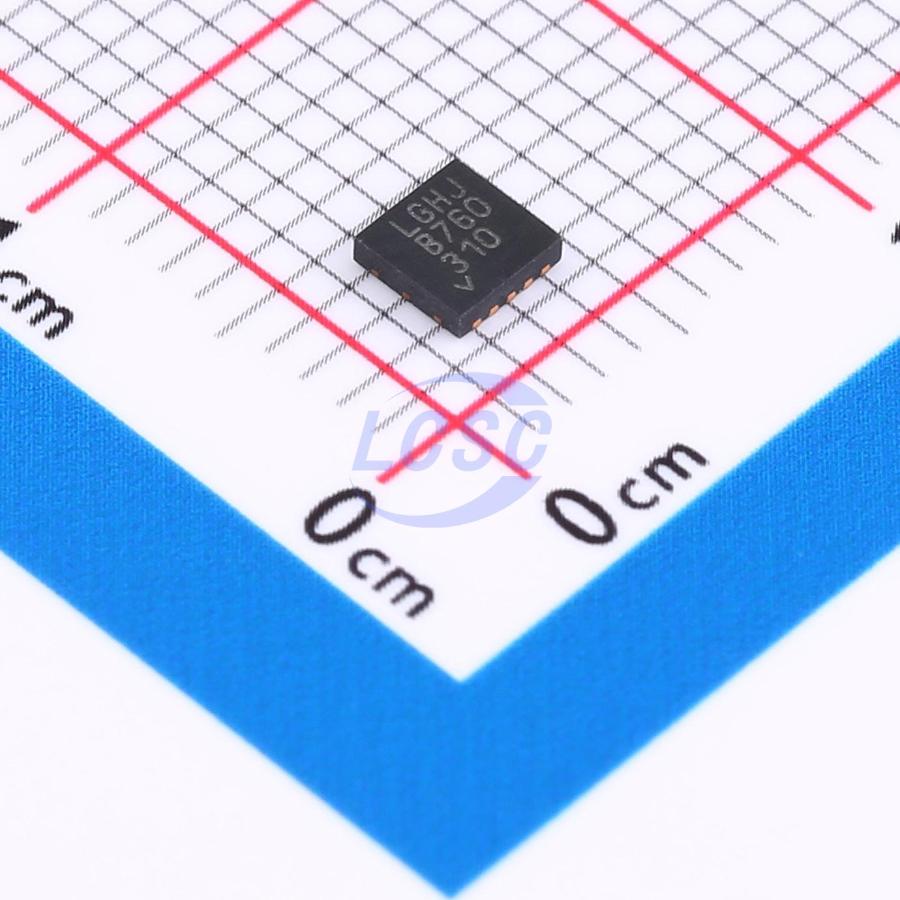

LT3090HDD#PBF
0V~32V Negative Adjustable DFN-10-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-10-EP(3x3)ROHS3 CompliantActive
36V, 600mA negative linear regulator with programmable current limit
- Manufacturer
- ADI
- Manufacturer part #
- LT3090HDD#PBF
- Store part #
- C670433
- Package / case
- DFN-10-EP(3x3)
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C670433
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹680.91 | ₹680.91 |
| 10+ | ₹664.93 | ₹6,649.30 |
| 30+ | ₹654.36 | ₹19,630.80 |
| 100+ | ₹643.56 | ₹64,356.00 |
1 × ₹680.91
₹680.91
excl. GST
₹803.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 121 per tube
LT3090HDD#PBF
₹680.91 for 1 + GST
Specifications
- Output Voltage
- 0V~32V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 1mA
- Output Configuration
- Negative
- Operating Voltage
- 36V
- Output Current
- 600mA
- Features
- Adjustable current limiting;Short Circuit Protection;Thermal shutdown;Input under-voltage protection;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 121 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
The LT3090 is a 600mA, low dropout negative linear regulator that is easily parallelable to increase output current or spread heat on surface mounted boards. Designed with a precision current reference followed by a high performance rail-to-rail voltage buffer, this regulator finds use in applications requiring precision output, high current with no heat sink, output adjustability to zero and low dropout voltage. The device can also be configured as a 3-terminal floating regulator.
Applications
- Post Regulator for Switching Supplies
- Low Noise Instrumentation and RF Supplies
- Rugged Industrial Supplies
- Precision Power Supplies
Key features
- Output Current: 600mA
- Single Resistor Sets Output Voltage
- 50µA SET Pin Current: ±1% Initial Accuracy
- Programmable Current Limit
- Positive or Negative Output Current Monitor
- Parallelable for Higher Current and Heat Spreading
- Low Dropout Voltage: 300mV
- Low Output Noise: 18µVRMS (10Hz to 100kHz)
- Configurable as 3-Terminal Floating Regulator
- Wide Input Voltage Range: –1.5V to –36V
- Rail-to-Rail Output Voltage Range: 0V to –32V
- Positive/Negative Shutdown Logic or UVLO
- Programmable Cable Drop Compensation
- Load Regulation: 1.2mV (1mA to 600mA)
- Stable with 4.7µF Minimum Output Capacitor
- Stable with Ceramic or Tantalum Capacitors
- Thermally Enhanced 12-Lead MSOP and 10-Lead 0.75mm × 3mm × 3mm DFN Packages
