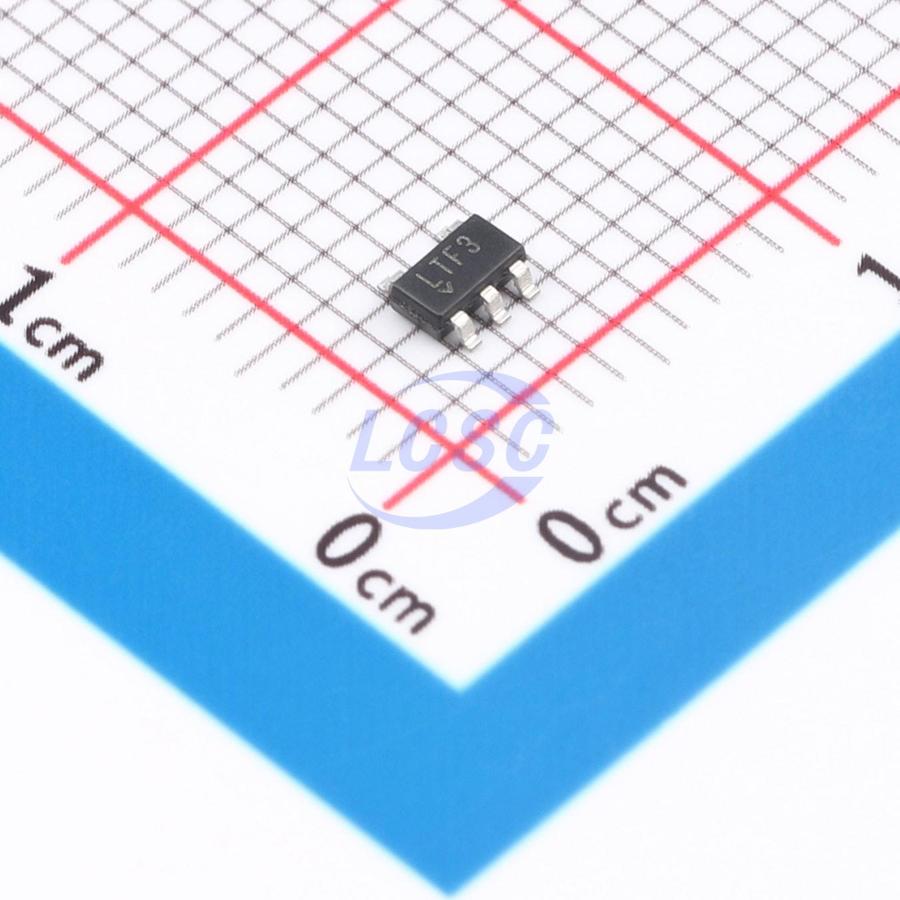

LTC1844ES5-2.5#TRMPBF

The LTC1844 Series are low noise VLDO (very low dropout) linear regulators designed for low power/portable applications. These regulators can operate from input voltages as low as 1.6V. Typical output noise is only 30µVRMS and typical dropout for the LTC1844-3.3 is just 90mV at the maximum load current of 150mA, reducing to 30mV at 50mA. The internal P-channel MOSFET pass transistor requires no base current, allowing the device to draw only 35µA during normal operation, independent of the dropout voltage and load current. The quiescent current falls to a negligible 10nA during shutdown. Other features include high output voltage accuracy, excellent transient response, stability with ultralow ESR ceramic capacitors as small as 1µF, reverse-battery and reverse-current protection, short-circuit and thermal overload protection and output current limiting. The LTC1844 regulators are available in a low profile (1mm) SOT-23 (ThinSOT) package.

Applications

• Portable Instruments and Battery-Powered Systems
• Bluetooth/802.11 Cards
• Cellular Phones
• PDAs and Notebook Computers

Key features

• Very Low Dropout: 90mV at 150mA 30mV at 50mA (LTC1844-3.3)
• Wide Input Voltage Range: 1.6V to 6.5V
• Low 35µA Supply Current, Even in Dropout
• Low Noise: 30µVRMS (10Hz to 100kHz)
• ±1.75% Voltage Accuracy Over Temperature, Voltage and Current Ranges
• Fast Transient Response
• 10nA Supply Current in Shutdown
• Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 2.8V, 3.3V
• Adjustable Output Voltage: 1.25V to 6V
• Output Current Limit
• Reverse-Battery and Reverse-Current Protection
• No Protection Diodes Needed
• Stable with 1µF Output Capacitor
• Stable with Ceramic Capacitors
• Short-Circuit and Thermal Overload Protection
• Low Profile (1mm) SOT-23 Package
