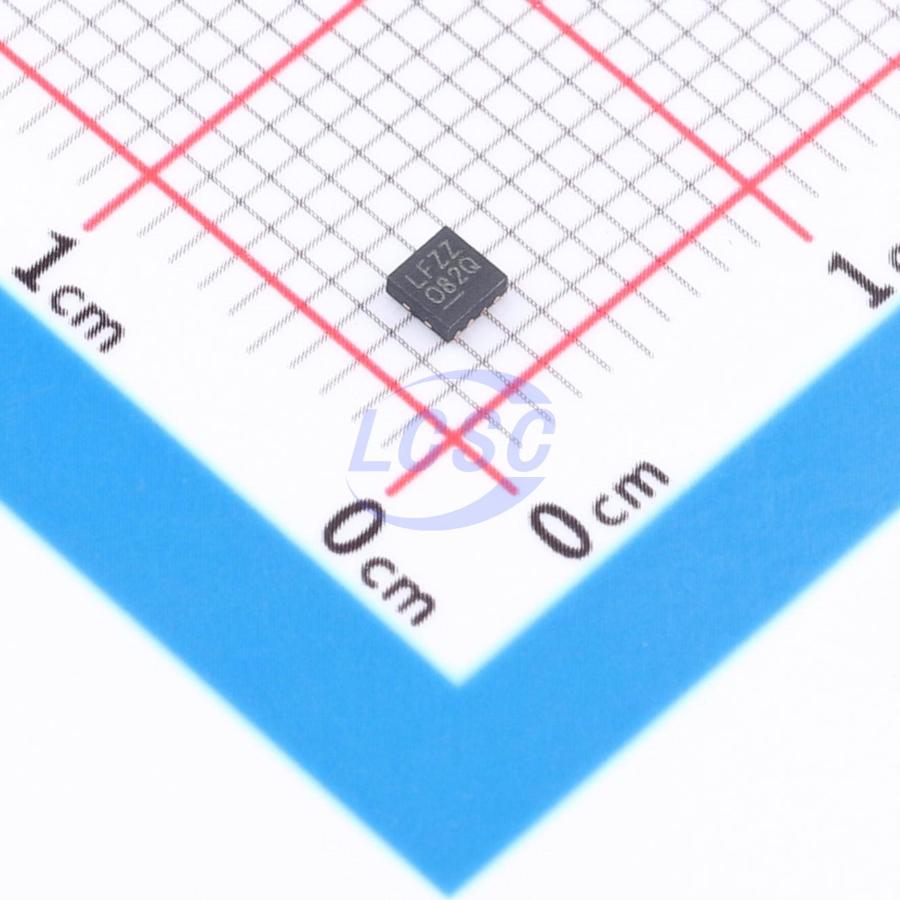

LTC2960IDC-1#TRMPBF
Active Low 2 DFN-8-EP(2x2) Supervisors RoHS
36V Nano-Current Two-Input Voltage Monitor
- Manufacturer
- ADI
- Manufacturer part #
- LTC2960IDC-1#TRMPBF
- Store part #
- C683846
- Package / case
- DFN-8-EP(2x2)
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C683846
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,207.22 | ₹1,207.22 |
| 10+ | ₹1,176.87 | ₹11,768.70 |
| 30+ | ₹1,156.71 | ₹34,701.30 |
| 100+ | ₹1,136.55 | ₹1,13,655.00 |
1 × ₹1,207.22
₹1,207.22
excl. GST
₹1,424.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
LTC2960IDC-1#TRMPBF
₹1,207.22 for 1 + GST
Specifications
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Active Level
- Active Low
- ChipType
- Voltage monitor
- Number of Voltages Monitored
- 2
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.55 g
Overview
The LTC2960 is a nano-current, high voltage two-input voltage monitor, ideally suited for multicell battery applications. External resistive dividers configure custom comparator thresholds. The supervisory circuit monitors the ADJ input and pulls the RST output low when the input drops below threshold. A reset timeout period delays the return of the RST output to a high state when the input rises above the threshold. The spare comparator allows voltage conditions to be detected with either a non-inverting input, IN+(LTC2960-1/LTC2960-3) or an inverting input, IN– (LTC2960-2/LTC2960-4). A manual reset (MR) input is provided for external activation of the reset output. Other options provided on the LTC2960-1/LTC2960-2 include a reset timeout period select pin, RT, to select between 15ms or 200ms reset timeout periods. The LTC2960-3/ LTC2960-4 have a fixed 200ms reset timeout period. The RST and OUT outputs are available with active pull-up circuits to an output logic supply pin (LTC2960-3/LTC2960-4) or 36V open-drain outputs (LTC2960-1/LTC2960-2).
Applications
- Portable Equipment
- Battery Powered Equipment
- Security Systems
- Automotive Systems
Key features
- 850nA Quiescent Current
- Operating Range: 2.5V < VCC < 36V
- 1.5% (Max) Accuracy Over Temperature
- Adjustable Reset Threshold
- Wide Temperature Range (-40°C to 125°C)
- Adjustable N+/N- Threshold
- Manual Reset Input
- Compact 2mm×2mm 8-lead DFN and TSOT-23 (ThinSOT) Packages
