ADIDatasheet (PDF)

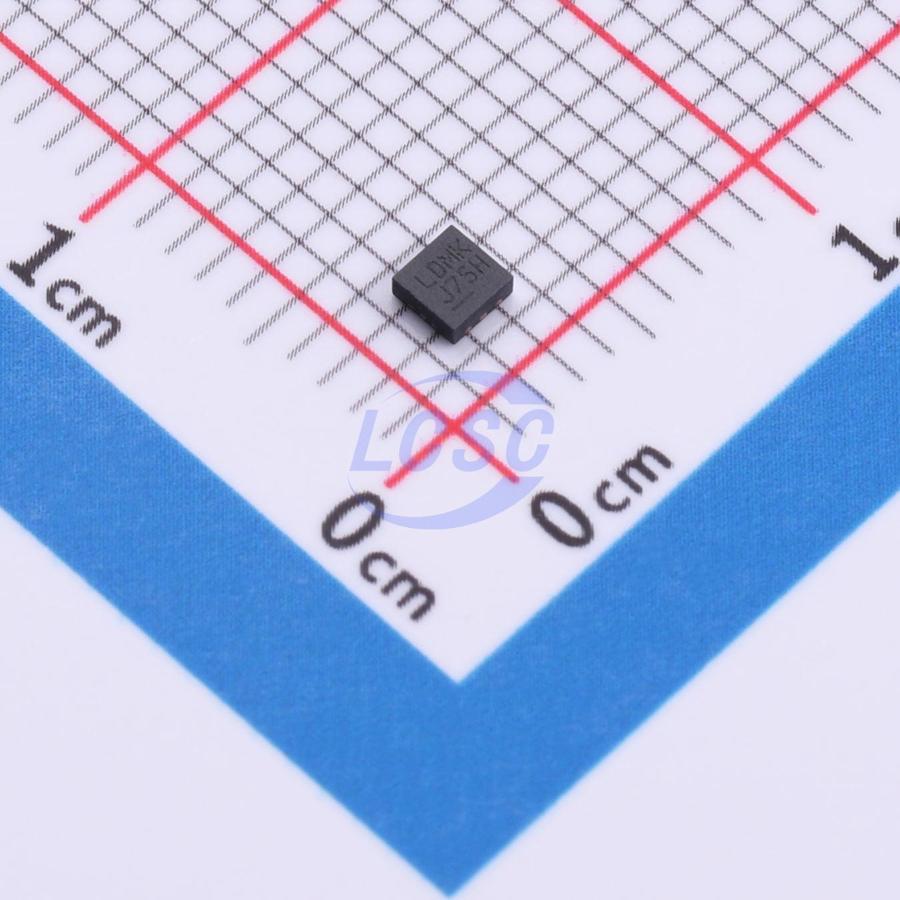

LTC3025IDC-2#TRMPBF
1.2V Positive Fixed DFN-6-EP(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-6-EP(2x2)ROHS3 CompliantActive
500mA Micropower VLDO Linear Regulators
- Manufacturer
- ADI
- Manufacturer part #
- LTC3025IDC-2#TRMPBF
- Store part #
- C683987
- Package / case
- DFN-6-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C683987
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹572.04 | ₹572.04 |
| 10+ | ₹557.08 | ₹5,570.80 |
| 30+ | ₹547.02 | ₹16,410.60 |
| 100+ | ₹537.19 | ₹53,719.00 |
1 × ₹572.04
₹572.04
excl. GST
₹675.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
LTC3025IDC-2#TRMPBF
₹572.04 for 1 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Built-in soft-start;Short Circuit Protection;Over Current Protection;Thermal shutdown;Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.167 g
Overview
The LTC3025-X is a micropower, VLDO (very low dropout) linear regulator which operates from input voltages as low as 0.9V. The device is capable of supplying 500mA of output current with a typical dropout voltage of only 85mV. A BIAS supply is required to run the internal reference and LDO circuitry while output current comes directly from the IN supply for high efficiency regulation. The LTC3025-1 features an adjustable output with a low 0.4V reference while the LTC3025-2, LTC3025-3, and LTC3025-4 have fixed 1.2V, 1.5V and 1.8V output voltages respectively. The LTC3025-X’s low quiescent current makes it an ideal choice for use in battery-powered systems. For 3-cell NiMH and single cell Li-Ion applications, the BIAS voltage can be supplied directly from the battery while the input can come from a high efficiency buck regulator, providing a high efficiency, low noise output. Other features include high output voltage accuracy, excellent transient response, stability with ultralow ESR ceramic capacitors as small as 1µF, short-circuit and thermal overload protection and output current limiting. The LTC3025-X is available in a tiny, low profile (0.75mm) 6-lead DFN (2mm×2mm) package.
Applications
- Low Power Handheld Devices
- Low Voltage Logic Supplies
- DSP Power Supplies
- Cellular Phones
- Portable Electronic Equipment
- Handheld Medical Instruments
- Post Regulator for Switching Supply Noise Rejection
Key features
- Wide Input Voltage Range: 0.9V to 5.5V
- Stable with Ceramic Capacitors
- Very Low Dropout: 85mV at 500mA
- Adjustable Output Range: 0.4V to 3.6V (LTC3025-1)
- Fixed Output: 1.2V (LTC3025-2), 1.5V (LTC3025-3), 1.8V (LTC3025-4)
- ±2% Voltage Accuracy over Temperature, Supply and Load
- Low Noise: 80µVRMS (10Hz to 100kHz)
- BIAS Voltage Range: 2.5V to 5.5V
- Fast Transient Recovery
- Shutdown Disconnects Load from VIN and VBIAS
- Low Operating Current: IIN = 4µA, IBias = 50µA Typ
- Low Shutdown Current: IIN = 1µA, IBias = 0.01µA Typ
- Output Current Limit
- Thermal Overload Protection
- Available in 6-Lead (2mm×2mm) DFN Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV75512PDRVR#C2866903TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | 1,845 | ₹38.16 · 1,845 in stock | View |
| NCV8135AMT120TBG#C893086onsemi · WDFN-6(2x2) | onsemi | WDFN-6(2x2) | 94 | ₹66.51 · 94 in stock | View | |
 | NCV8705MT12TCG#C893275onsemi · WDFN-6(2x2) | onsemi | WDFN-6(2x2) | 65 | ₹73.60 · 65 in stock | View |
 | LP5912Q1.2DRVRQ1#C2861898TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | 2 | ₹79.75 · 2 in stock | View |
 | LP5912-1.2DRVR#C2876233TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | 31 | ₹109.07 · 31 in stock | View |
