ADIDatasheet (PDF)

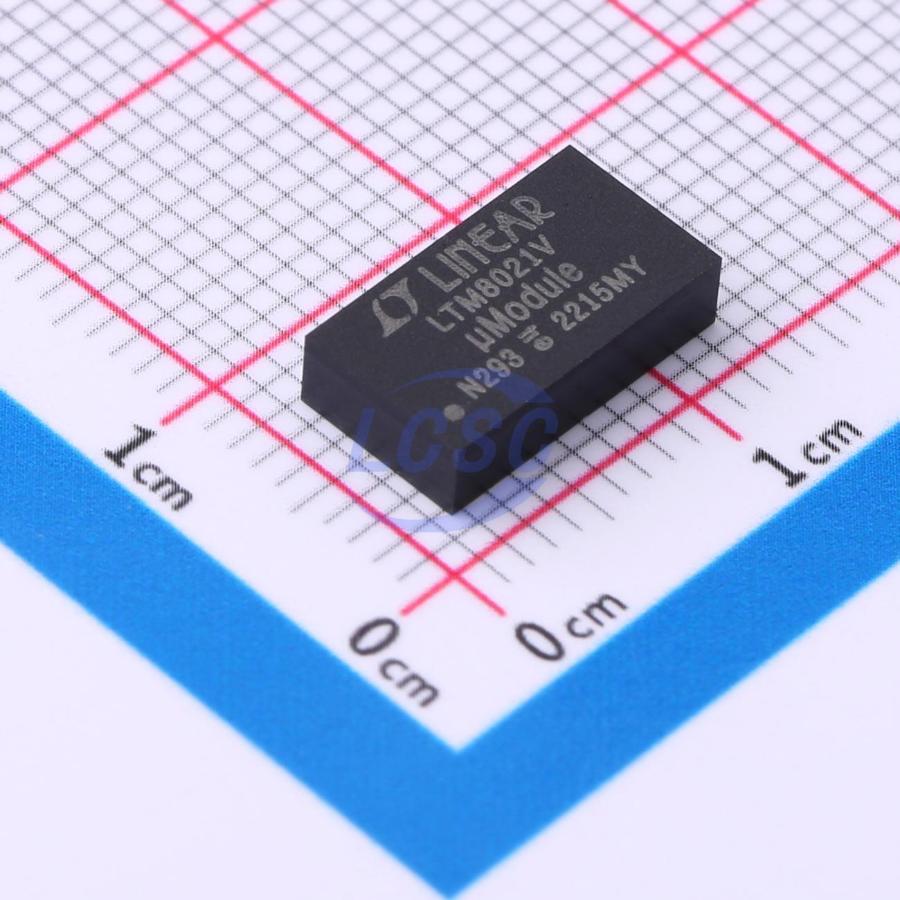

LTM8021IV#PBF
Step-down type 800mV~5V 3V~36V LGA-35(6.2x11.2) DC DC Converters RoHS
LGA-35(6.2x11.2)ROHS3 CompliantActive
36VIN, 500mA Step-Down DC/DC μModule
- Manufacturer
- ADI
- Manufacturer part #
- LTM8021IV#PBF
- Store part #
- C581171
- Package / case
- LGA-35(6.2x11.2)
- Category
- DC DC Converters
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C581171
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,842.47 | ₹2,842.47 |
| 10+ | ₹2,708.83 | ₹27,088.30 |
| 30+ | ₹2,477.41 | ₹74,322.30 |
| 100+ | ₹2,275.53 | ₹2,27,553.00 |
1 × ₹2,842.47
₹2,842.47
excl. GST
₹3,354.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 273 per tray
LTM8021IV#PBF
₹2,842.47 for 1 + GST
Specifications
- Function
- Step-down type
- Output Voltage
- 800mV~5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 1.5mA
- Voltage - Supply
- 3V~36V
- Number of Outputs
- 1
- Iout
- 500mA
- Height
- 2.82mm
- Frequency - Switching
- 1.1MHz
- Features
- Programmable soft start;Programmable output voltage;Over Current Protection;Short Circuit Protection;Overload protection;Light load efficient mode
- Length
- 11.25mm
- Width
- 6.25mm
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 273 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
The LTM8021 is a 36VIN 500mA, step-down DC/DC µModule. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3V to 36V, the LTM8021 supports an output voltage range of 0.8V to 5V, set by a single resistor. Only an output and bulk input capacitor are needed to finish the design. The low profile package (2.82mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation. A built-in soft-start timer is adjustable with just a resistor and capacitor. The LTM8021 is packaged in a thermally enhanced, compact (11.25mm×6.25mm) and low profile (2.82mm) overmolded land grid array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM8021 is RoHS compliant.
Applications
- Automotive Battery Regulation
- Power for Portable Products
- Distributed Supply Regulation
- Industrial Supplies
- Wall Transformer Regulation
Key features
- Complete Switch Mode Power Supply
- Wide Input Voltage Range: 3V to 36V
- 500mA Output Current
- 0.8V to 5V Output Voltage
- Fixed 1.1MHz Switching Frequency
- Current Mode Control
- RoHS Compliant Package with Gold Pad Finish
- Programmable Soft-Start
- Tiny, Low Profile (11.25mm×6.25mm×2.82mm)
- Surface Mount LGA Package
