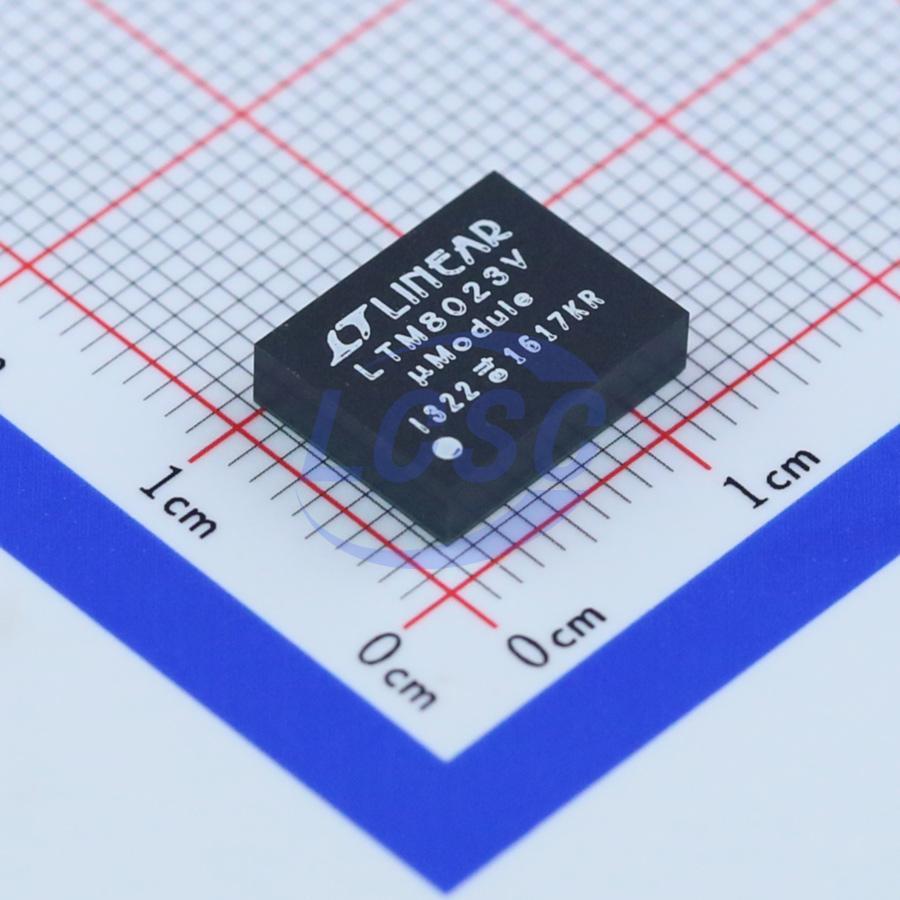

ADI

LTM8023EV#PBF

Step-down type 800mV~10V 3.6V~36V LGA-50(9x11.2) DC DC Converters RoHS

LGA-50(9x11.2)ROHS3 CompliantActive

2A, 36V DC/DC Step-Down μModule Regulator

Manufacturer: ADI
Manufacturer part #: LTM8023EV#PBF
Store part #: C108022
Package / case: LGA-50(9x11.2)
Category: DC DC Converters
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C108022

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹2,618.97	₹2,618.97
10+	₹2,539.64	₹25,396.40

Quantity (min 1)

1 × ₹2,618.97

₹2,618.97

excl. GST

₹3,090.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 210 per tray

LTM8023EV#PBF

₹2,618.97 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Step-down type
Number of Outputs: 1
Iout: 2A
Output Voltage: 800mV~10V
Height: 2.82mm
Frequency - Switching: 325kHz
Operating Temperature: -40℃~+85℃
Features: Programmable soft start;Programmable output voltage;Light load efficient mode;External clock synchronization
Voltage - Supply: 3.6V~36V
Length: 9mm
Width: 11.25mm

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tray
Standard pack: 210 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 3.2 g

Overview

The LTM8023 is a complete 2A, DC/DC step-down power supply. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.6V to 36V, the LTM8023 supports an output voltage range of 0.8V to 10V, and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design. The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The LTM8023 is packaged in a thermally enhanced, compact and low profile over-molded land grid array (LGA) and ball grid array (BGA) packages suitable for automated assembly by standard surface mount equipment. The LTM8023 is available with SnPb (BGA) or RoHS compliant terminal finish.

Applications

Automotive Battery Regulation
Power for Portable Products
Distributed Supply Regulation
Industrial Supplies
Wall Transformer Regulation

Key features

Complete Step-Down Switch Mode Power Supply
Wide Input Voltage Range: 3.6V to 36V
2A Output Current
0.8V to 10V Output Voltage
Selectable Switching Frequency: 200kHz to 2.4MHz
Current Mode Control
Programmable Soft-Start
SnPb (BGA) or RoHS Compliant Finish
Tiny, Low Profile, Surface Mount LGA (9mm×11.25mm×2.82mm) and BGA (9mm×11.25mm×3.42mm) Packages
