ADI

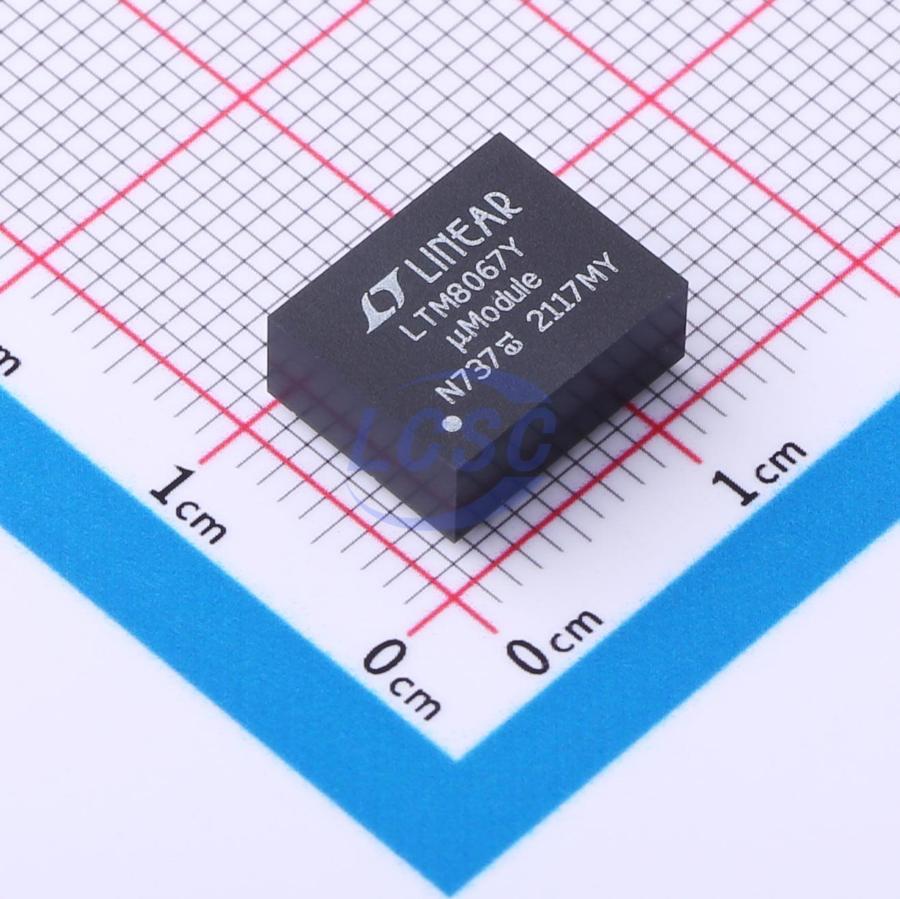

LTM8067IY#PBF

2.5V~24V 2.8V~40V BGA-38 DC DC Converters RoHS

BGA-38ROHS3 CompliantActive

2.8V IN to 40V IN Isolated uModule DC/DC Converter

Manufacturer: ADI
Manufacturer part #: LTM8067IY#PBF
Store part #: C690763
Package / case: BGA-38
Category: DC DC Converters
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

19 in stock

#C690763

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹2,516.52	₹2,516.52
10+	₹2,247.42	₹22,474.20

Quantity (min 1)

1 × ₹2,516.52

₹2,516.52

excl. GST

₹2,969.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 168 per tray

LTM8067IY#PBF

₹2,516.52 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Ripple: 30mV
Iout: 450mA
Output Voltage: 2.5V~24V
Isolation voltage: 2kV
Operating Temperature: -40℃~+125℃
Voltage - Supply: 2.8V~40V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tray
Standard pack: 168 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.2 g

Overview

The LTM8067 is a 2kVAC isolated flyback µModule (power module) DC/DC converter. Included in the package are the switching controller, power switches, transformer, and all support components. Operating over an input voltage range of 2.8V to 40V, the LTM8067 supports an output voltage range of 2.5V to 24V, set by a single resistor. Only output and input capacitors are needed to finish the design. The LTM8067 is packaged in a thermally enhanced, compact (9mm×11.25mm×4.92mm) overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8067 is available with SnPb or RoHS compliant terminal finish.
