VBsemi ElecDatasheet (PDF)

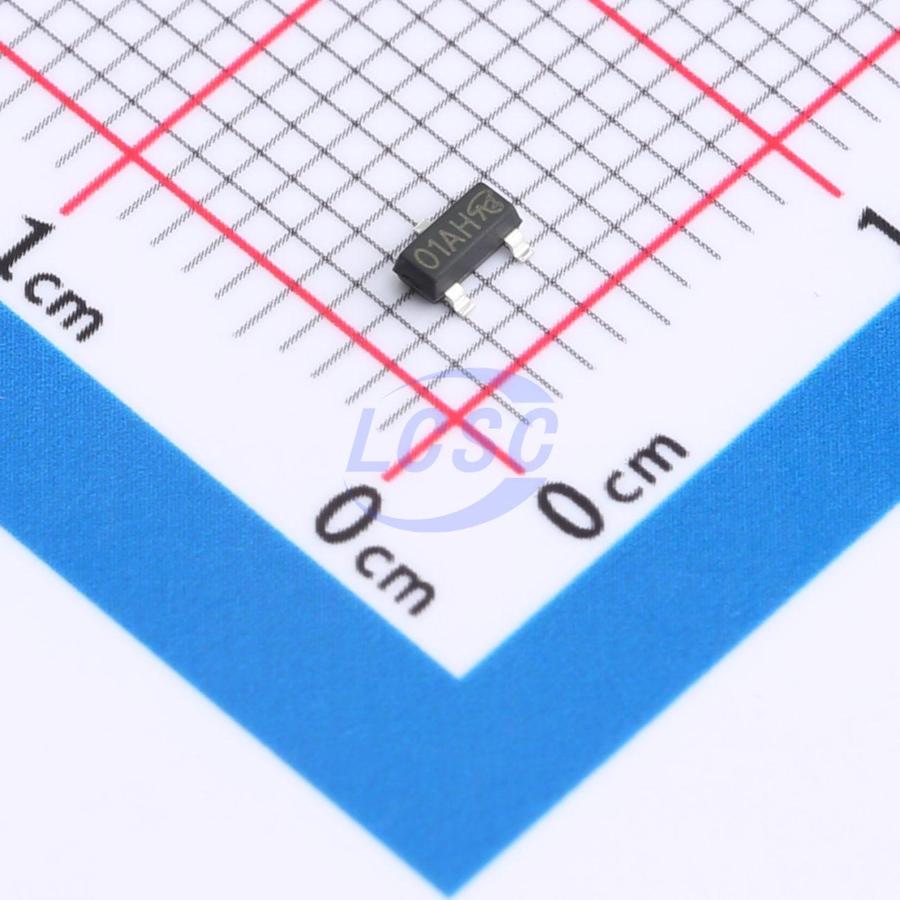

M01X-VB
P-Channel 20V 4A 1.6W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 20V 4A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- M01X-VB
- Store part #
- C41370339
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C41370339
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.48 | ₹84.80 |
| 100+ | ₹6.67 | ₹667.00 |
| 300+ | ₹5.76 | ₹1,728.00 |
| 3,000+ | ₹5.08 | ₹15,240.00 |
| 6,000+ | ₹4.52 | ₹27,120.00 |
| 9,000+ | ₹4.26 | ₹38,340.00 |
10 × ₹8.48
₹84.80
excl. GST
₹100.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
M01X-VB
₹84.80 for 10 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 835pF
- Pd - Power Dissipation
- 1.6W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 80mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.019 g
Overview
Applications
- Load switch
- Power amplifier (PA) switch
- DC/DC converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS215P H6327-VB#C19188116VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹9.10 · 100 in stock | View |
 | SI2315DS-T1-E3-VB#C19190114VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹8.94 · 100 in stock | View |
 | SSF2301-VB#C20417444VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹9.10 · 100 in stock | View |
 | SQ2301ES-T1-GE3-VB#C22388975VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹9.00 · 100 in stock | View |
 | PJ2301MR-VB#C22389379VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹8.67 · 50 in stock | View |
