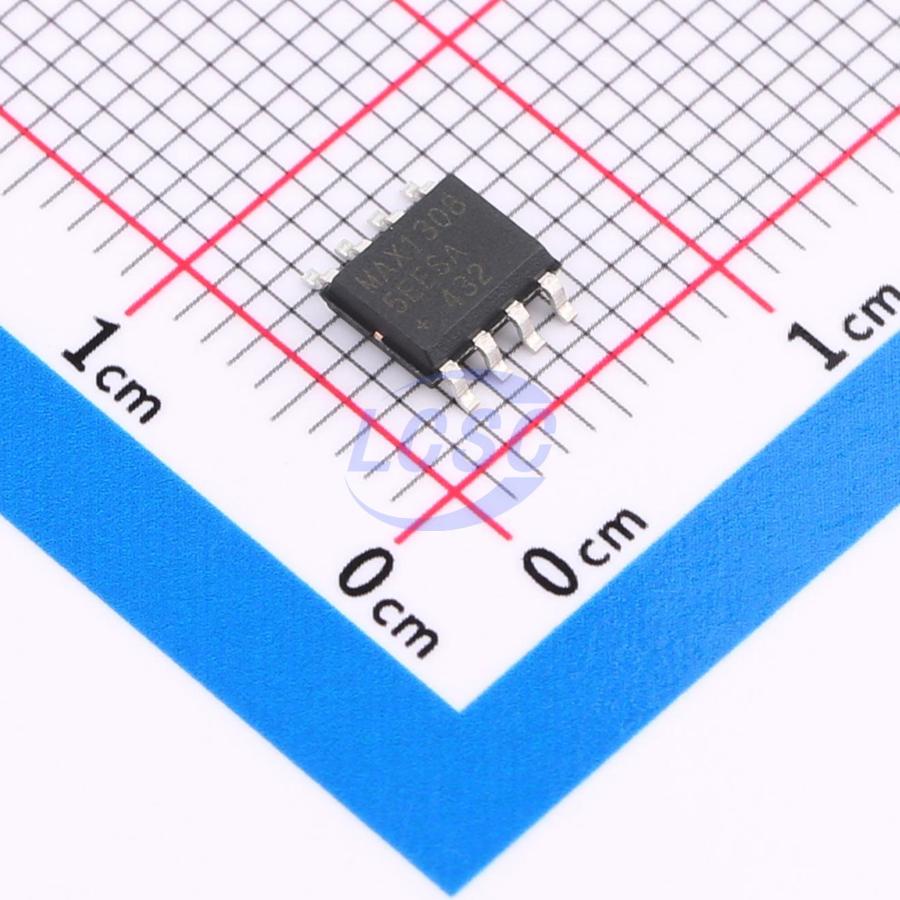

MAX13085EESA+T

The MAX13085E +5.0V ±15kV ESD- protected,RS- 485/ RS- 422 transceiver features one driver and one receiver. The device includes fail- safe circuitry, guaranteeing a logic- high receiver output when receiver inputs are open or shorted. The receiver outputs a logic- high if all transmitters on a terminated bus are disabled (high impedance). The MAX13085E includes a hot- swap capability to eliminate false transitions on the bus during power- up or hot insertion. The MAX13085E features reduced slew- rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error- free data transmission up to 500kbps. The MAX13085E is ideal for half- duplex communications and it draws 1.2mA of supply current when unloaded or when fully loaded with the drivers disabled. The MAX13085E has a 1/8- unit load receiver input impedance, allowing up to 256 transceivers on the bus. The MAX13085E is available in an 8- pin SO and PDIP packages. +5.0V Operation Extended ESD Protection for RS- 485/RS- 422 I/O Pins ±15kV Human Body Model • True Fail- Safe Receiver While Maintaining EIA/TIA- 485 Compatibility • Hot- Swap Input Structures on DE and RE • Enhanced Slew- Rate Limiting Facilitates Error- Free Data Transmission • Low- Current Shutdown Mode • Allow Up to 256 Transceivers on the Bus • Available in Industry- Standard 8- Pin SO and PDIP Packages

Applications

• Utility Meters
• Lighting Systems
• Industrial Control
• Telecom
• Security Systems
• Instrumentation
• Profibus
