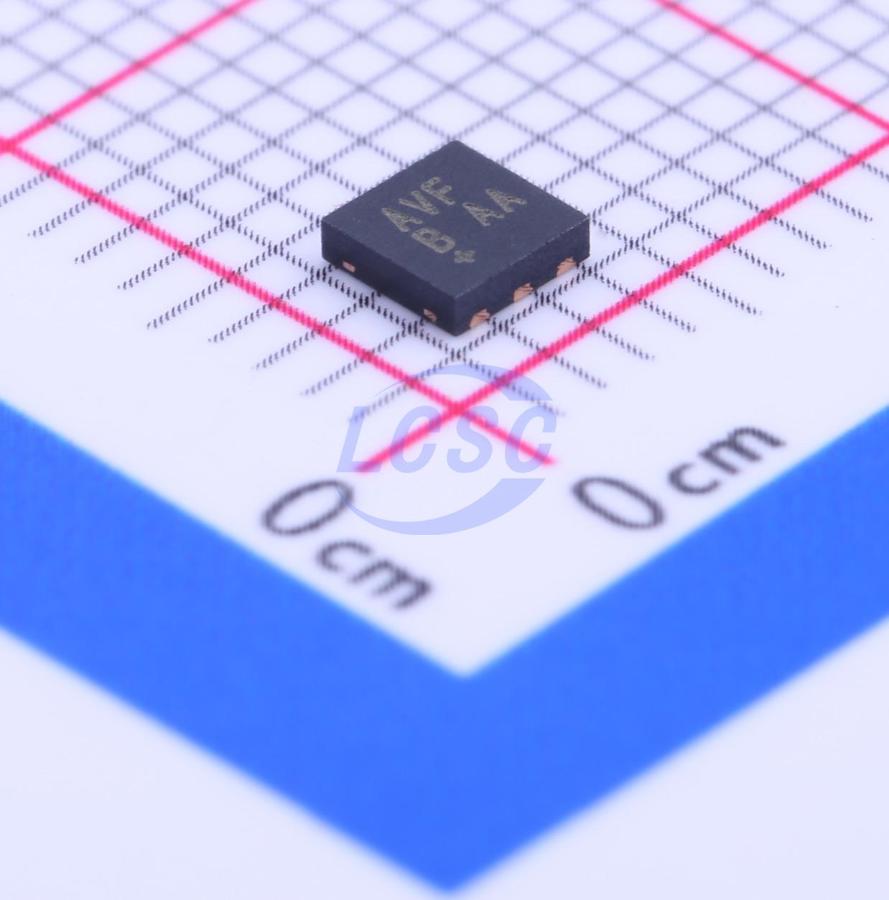

MAX14626ETT+T
DFN-6-EP(3x3) Sensor and Detector Interfaces RoHS
High-Voltage Reverse-lnput-Capable 4-20mA Current Loop Protector
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX14626ETT+T
- Store part #
- C143346
- Package / case
- DFN-6-EP(3x3)
- Category
- Sensor and Detector Interfaces
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,389 in stock
#C143346
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹457.92 | ₹457.92 |
| 10+ | ₹404.36 | ₹4,043.60 |
| 30+ | ₹370.76 | ₹11,122.80 |
| 100+ | ₹314.61 | ₹31,461.00 |
| 500+ | ₹299.00 | ₹1,49,500.00 |
| 1,000+ | ₹292.28 | ₹2,92,280.00 |
1 × ₹457.92
₹457.92
excl. GST
₹540.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX14626ETT+T
₹457.92 for 1 + GST
Specifications
- Supply Current (Iq)
- 40uA
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 2.3V~36V
- Number of Channels
- 1
- Resolution (Bits)
- -;-
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
The MAX14626 current loop protector features a current-limit switch to prevent damage to the sensor devices due to faulty current loop conditions. The current-limit switch features a 25Ω (typ) on-resistance and operates from a +2.3V to +36V input voltage range. The accurate current limit is set to 30mA, making the part ideal for protecting the sensor reading devices. The MAX14626 handles an overcurrent event in a continuous current-limit mode. Additional safety features include thermal shutdown to prevent overheating and reverse-input blocking to protect from being reverse connected into the sensor. The device is available in a tiny 6-pin (3mm × 3mm), TDFN exposed pad package and is specified over the -40°C to +85°C extended temperature range.
Applications
- Industrial Current Loop Control
Key features
- Low On-Resistance 25Ω (typ)
- Accurate ±10% Current Limit
- +2.3V to ±40V Wide Supply Voltage Range
- Low Operating Current
- Ultra-Low Temperature Coefficient
- Avoids Power Dissipation Issues Compared to Discrete Solutions
- Thermal Shutdown
- Reverse Input Protection
- Eliminates Need for Discrete PTC Poly Switch, Zener Diodes, and Resistors
- 3mm x 3mm, 6-Pin TDFN Package
