MAXIMDatasheet (PDF)

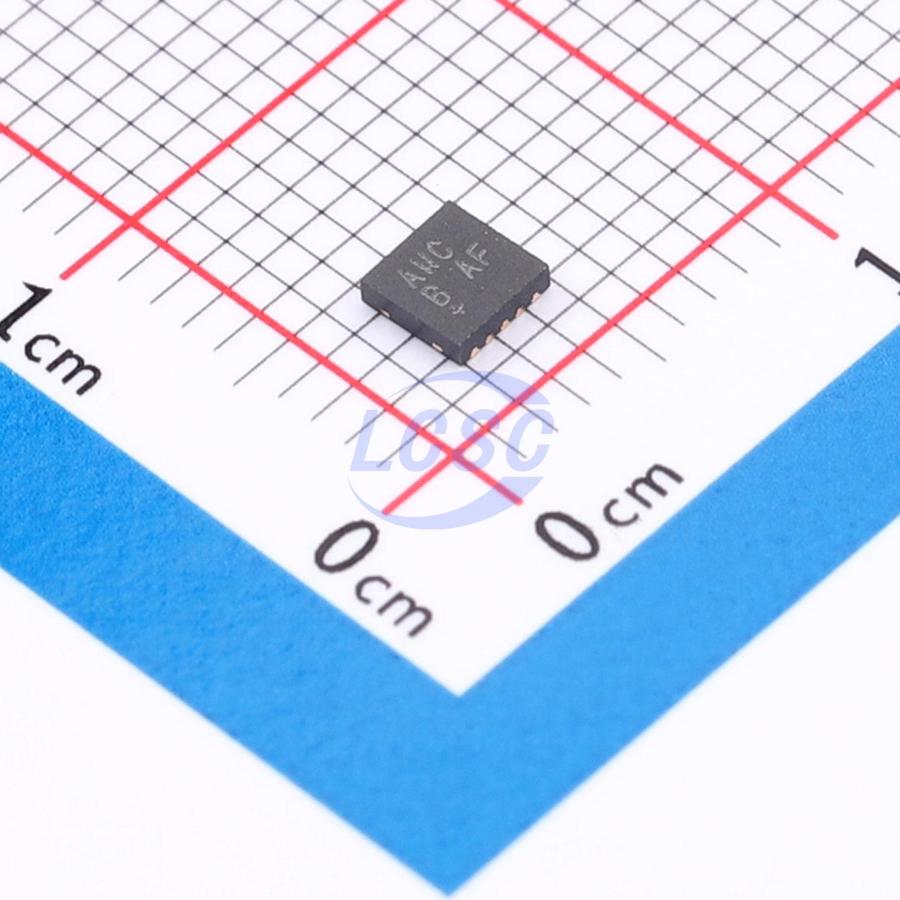

MAX15027ATB/V+T
500mV~3.3V Positive Adjustable TDFN-10-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TDFN-10-EP(3x3)ROHS3 CompliantActive
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX15027ATB/V+T
- Store part #
- C3747775
- Package / case
- TDFN-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C3747775
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹432.50 | ₹432.50 |
| 10+ | ₹423.04 | ₹4,230.40 |
| 30+ | ₹416.80 | ₹12,504.00 |
| 100+ | ₹410.55 | ₹41,055.00 |
1 × ₹432.50
₹432.50
excl. GST
₹510.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX15027ATB/V+T
₹432.50 for 1 + GST
Specifications
- Output Voltage
- 500mV~3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 275uA
- Output Configuration
- Positive
- Operating Voltage
- 3.6V
- Output Current
- 1A
- Features
- Enable control;Adjustable soft-start;Short Circuit Protection;Thermal shutdown;Input under-voltage protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
Applications
- Automotive (Dead-Man LDO)
- Servers
- Storage
- Networking Base Stations
- Optical Modules ATE
Key features
- 1.425V to 3.6V Input Voltage Range
- Output Voltage Programmable from 0.5V to VIN
- Guaranteed Maximum 225mV Dropout at 1A Output Current ±2% Output Accuracy Over Load, Line, and Temperature
- Stable with Ceramic Capacitors
- Fast Transient Response
- 60μA Operating Bias Supply Current (MAX15028)
- 1.2μA Shutdown Bias Supply Current (MAX15028)
- Short-Circuit and Thermal Protection
- -40°C to +125°C Operating Temperature Range
- Soft-Start Limits Inrush Current
- Thermally Enhanced 3mm x 3mm TDFN Package
- AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ISL80111IRAJZ#C6280407RENESAS · DFN-10(3x3) | RENESAS | DFN-10(3x3) | 2 | ₹313.01 · 2 in stock | View |
| ISL80111IRAJZ-T#C6644299RENESAS · DFN-10(3x3) | RENESAS | DFN-10(3x3) | 20 | ₹337.15 · 20 in stock | View | |
 | ISL80112IRAJZ-T#C3745665RENESAS · DFN-10(3x3) | RENESAS | DFN-10(3x3) | 19 | ₹247.61 · 19 in stock | View |
 | ISL80112IRAJZ#C7290673RENESAS · DFN-10(3x3) | RENESAS | DFN-10(3x3) | 5 | ₹463.59 · 5 in stock | View |
 | ISL80113IRAJZ-T#C6280409RENESAS · DFN-10(3x3) | RENESAS | DFN-10(3x3) | 3 | ₹307.48 · 3 in stock | View |
