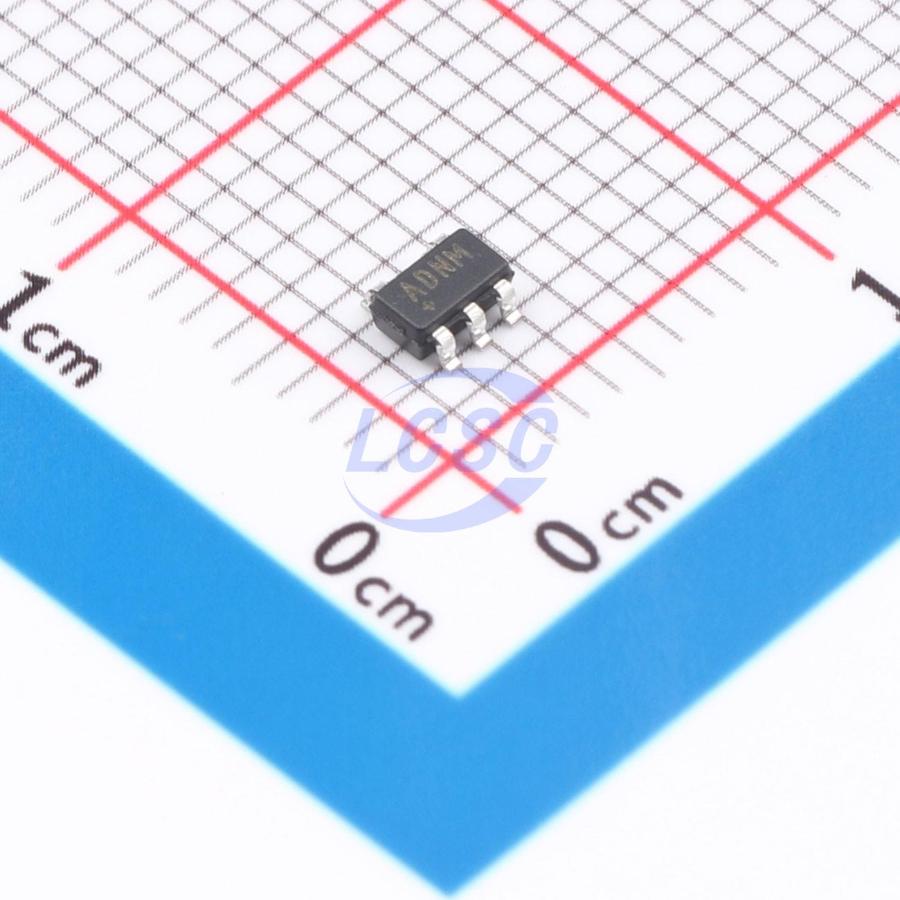

MAX1726EUK25+T

The MAX1725/MAX1726 are ultra-low supply current, low-dropout linear regulators intended for low-power applications that demand the longest possible battery life. Unlike inferior PNP-based designs, the MAX1725/ MAX1726s’ PMOS pass elements maintain an ultra-low 2μA supply current throughout their entire operating range and in dropout. Despite their ultra-low power consumption, the MAX1725/MAX1726 have tight output accuracy (1.5%) and require just 1μF output capacitance to achieve good load-transient response. These regulators have a wide input voltage range (+2.5V to +12V), making them excellent choices for systems powered from two lithium-ion (Li+) cells and 9V batteries. Other features include reverse-battery protection, short-circuit protection, and thermal protection. The MAX1725 provides an adjustable 1.5V to 5V output using an external resistor-divider. The MAX1726 provides factory preset 1.8V, 2.5V, 3.3V, or 5V output voltages. Both devices are available in a tiny 5-pin SOT23 package.

Applications

• Smoke Detectors
• Remote Transmitters
• Smart Battery Packs
• Industrial Control Systems
• Microcontroller Power
• Real-Time Clock Backup Power
• PDAs and Handy-Terminals
• Battery-Powered Alarms

Key features

• 2μA Supply Current
• Reverse-Battery Protection
• +2.5V to +12V Input Voltage Range
• Fixed 1.8V, 2.5V, 3.3V, and 5V Output Voltages (MAX1726)
• Adjustable 1.5V to 5V Output Voltages (MAX1725)
• 20mA Guaranteed Output Current
• 1.5% Output Voltage Accuracy
• Small 1μF Output Capacitor
• Short-Circuit Protection
• Thermal Protection
• Tiny 5-Pin SOT23 Package
