MAXIMDatasheet (PDF)

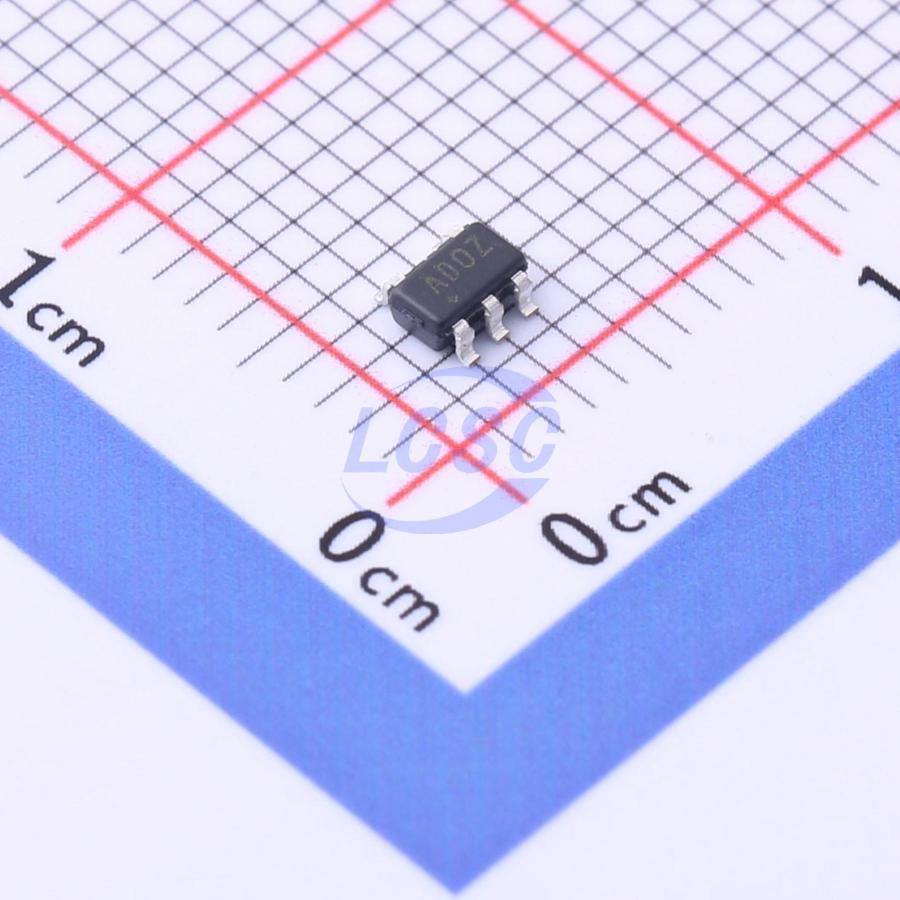

MAX1735EUK50+T
Negative SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
200mA Negative-Output, Low-Dropout Linear Regulator in SOT23
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX1735EUK50+T
- Store part #
- C2985076
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,301 in stock
#C2985076
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹226.56 | ₹226.56 |
| 10+ | ₹187.43 | ₹1,874.30 |
| 30+ | ₹166.12 | ₹4,983.60 |
| 100+ | ₹128.29 | ₹12,829.00 |
| 500+ | ₹117.42 | ₹58,710.00 |
| 1,000+ | ₹112.63 | ₹1,12,630.00 |
1 × ₹226.56
₹226.56
excl. GST
₹267.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX1735EUK50+T
₹226.56 for 1 + GST
Specifications
- Output Voltage
- 5V;1.25V~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 85uA
- Output Configuration
- Negative
- Output Current
- 200mA
- Operating Voltage
- 6.5V
- Output Type
- Fixed;Adjustable
- Features
- Enable control;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The MAX1735 negative-output, low-dropout linear regulator operates from a -2.5V to -6.5V input and delivers a guaranteed 200mA with a low 80mV dropout. The high-accuracy (±1%) output voltage is preset or can be adjusted from -1.25V to -5.5V with an external resistive voltage-divider. An internal N-channel MOSFET allows for a low 85μA quiescent current virtually independent of the load, making this device ideal for battery-powered portable equipment, such as PDAs, mobile phones, cordless phones, and wireless data modems. The device is available in several preset output voltage versions: -5.0V, -3.0V, and -2.5V. All versions offer a 1nA low-power shutdown mode, short-circuit protection, and thermal overload protection. The device is offered in a tiny 5-pin SOT23 package.
Applications
- Disk Drives
- Modems
- Instrumentation Amplifiers
- Notebook Computers
- Mobile and Cordless Telephones
- PCMCIA Cards
- GaAsFET Bias
- Mobile Wireless Data Modems
- PDAs and Palmtop Computers
Key features
- Guaranteed 200mA Output Current
- Low 80mV Dropout Voltage at 200mA
- Low 85μA Quiescent Supply Current
- Low 1nA Current Shutdown Mode
- Stable with 1μF COUT
- PSRR > 60dB at 100Hz
- Thermal Overload Protection
- Short-Circuit Protection
- -5.0V, -3.0V, or -2.5V Output Voltage or Adjustable (-1.25V to -5.5V)
- Tiny SOT23-5 Package
