MAXIMDatasheet (PDF)

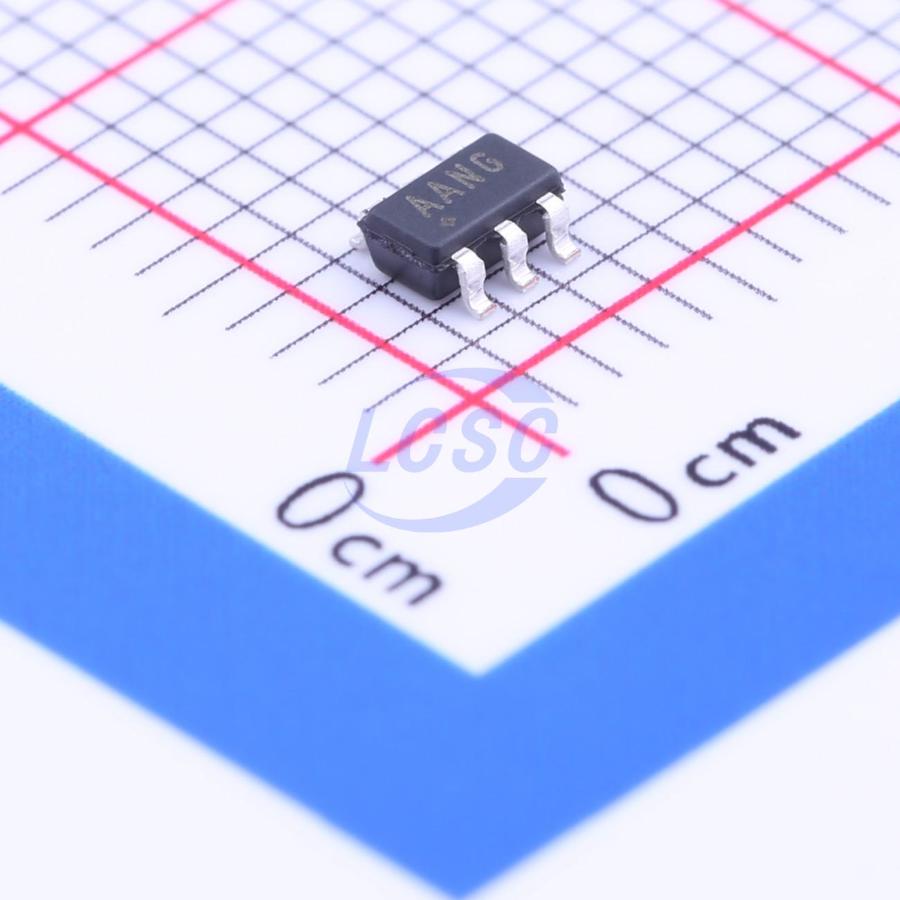

MAX1818EUT33+T
Positive SOT-23-6 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-6ROHS3 CompliantActive
500mA Low-Dropout Linear Regulator in SoT23
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX1818EUT33+T
- Store part #
- C8008
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C8008
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹441.31 | ₹441.31 |
| 10+ | ₹376.87 | ₹3,768.70 |
| 30+ | ₹338.56 | ₹10,156.80 |
| 100+ | ₹300.02 | ₹30,002.00 |
| 500+ | ₹282.17 | ₹1,41,085.00 |
| 1,000+ | ₹274.11 | ₹2,74,110.00 |
1 × ₹441.31
₹441.31
excl. GST
₹520.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX1818EUT33+T
₹441.31 for 1 + GST
Specifications
- Output Voltage
- 3.3V;1.25V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 125uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Operating status indication;Reset function;Short Circuit Protection;Thermal shutdown;Input under-voltage protection;Over Current Protection
- Output Type
- Adjustable;Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The MAX1818 low-dropout linear regulator operates from a +2.5V to +5.5V supply and delivers a guaranteed 500mA load current with low 120mV dropout. The high-accuracy (±1%) output voltage is preset at an internally trimmed voltage or can be adjusted from 1.25V to 5.0V with an external resistive divider. An internal PMOS pass transistor allows the low 125μA supply current to remain independent of load, making this device ideal for portable battery-operated equipment such as personal digital assistants (PDAs), cellular phones, cordless phones, base stations, and notebook computers. Other features include an active-low open-drain reset output that indicates when the output is out of regulation, a 0.1μA shutdown, short-circuit protection, and thermal shutdown protection. The device is available in a miniature 800mW 6-pin SOT23 package.
Applications
- Notebook Computers
- Cellular and Cordless Telephones
- Personal Digital Assistants (PDAs)
- Palmtop Computers
- Base Stations
- USB Hubs
- Docking Stations
Key features
- Guaranteed 500mA Output Current
- Low 120mV Dropout at 500mA
- ±1% Output Voltage Accuracy Preset at 1.5V, 1.8V, 2.0V, 2.5V, 3.3V, 5V Adjustable from 1.25V to 5.0V
- Power OK Output
- Low 125μA Ground Current
- 0.1μA Shutdown Current
- Thermal Overload Protection
- Output Current Limit
- Tiny 800mW 6-Pin SOT23 Package
