MAXIMDatasheet (PDF)

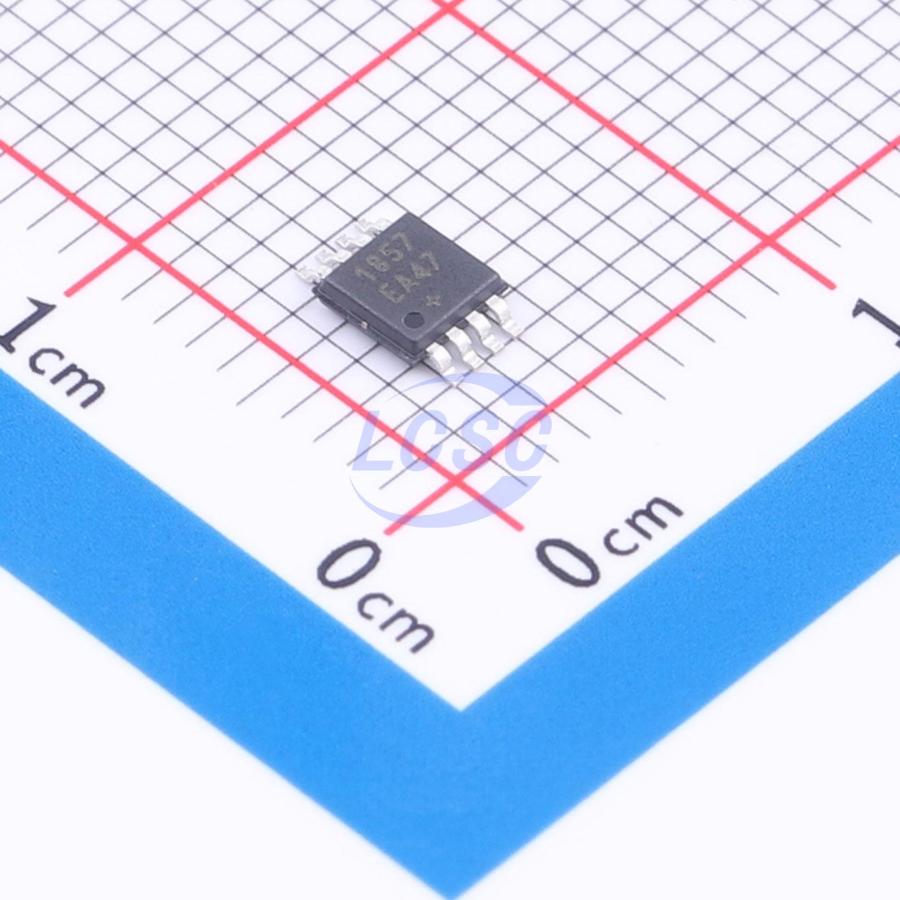

MAX1857EUA47+T
Positive uMAX-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
uMAX-8ROHS3 CompliantActive
IC REG LINEAR 4.75V 500mA uMAX-8
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX1857EUA47+T
- Store part #
- C7450972
- Package / case
- uMAX-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C7450972
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹778.12 | ₹778.12 |
| 10+ | ₹665.14 | ₹6,651.40 |
| 30+ | ₹596.22 | ₹17,886.60 |
| 100+ | ₹538.55 | ₹53,855.00 |
1 × ₹778.12
₹778.12
excl. GST
₹918.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX1857EUA47+T
₹778.12 for 1 + GST
Specifications
- Output Voltage
- 4.75V;1.25V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 135uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Output Type
- Adjustable;Fixed
- Features
- Reset function;Short Circuit Protection;Thermal shutdown;Input under-voltage protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.244 g
Overview
The MAX1857 is a low-dropout, low-quiescent-current ripple rejector designed primarily for audio and video applications. The device supplies loads up to 500mA and is available with a preset output voltage of 4.75V.
Applications
- Notebook Computers
- Cellular and Cordless Telephones
- PDAs
- Palmtop Computers
- Base Stations
- USB Hubs
- Docking Stations
Key features
- Guaranteed 500mA Output Current
- Low 120mV Dropout at 500mA
- Up to ±1% Output Voltage Accuracy Preset at 4.75V Adjustable from 1.25V to 5.0V
- Reset Output with 4.5ms Timeout Period
- Low 135µA Ground Current
- 0.1µA Shutdown Current
- Thermal Overload Protection
- Output Current Limit
- Tiny µMAX Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MAX1857EUA47+#C7457913MAXIM · uMAX-8 | MAXIM | uMAX-8 | On request | ₹511.66 · 0 in stock | View | |
