MAX3085
5V Transceiver 1Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive

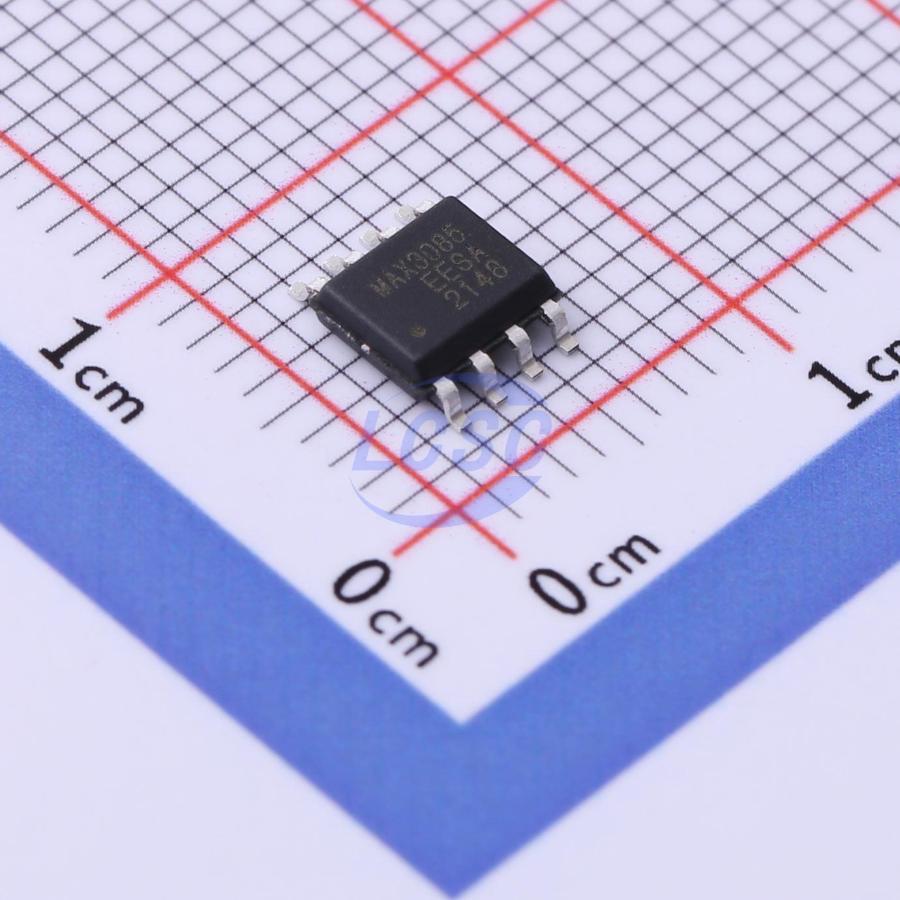

MAX3085 RS-485/RS-422 Transceiver
- Manufacturer
- Siproin
- Manufacturer part #
- MAX3085
- Store part #
- C3011513
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,160 in stock
#C3011513
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.00 | ₹120.00 |
| 50+ | ₹21.08 | ₹1,054.00 |
| 150+ | ₹19.82 | ₹2,973.00 |
| 500+ | ₹18.26 | ₹9,130.00 |
| 2,500+ | ₹16.42 | ₹41,050.00 |
| 4,000+ | ₹16.01 | ₹64,040.00 |
5 × ₹24.00
₹120.00
excl. GST
₹141.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MAX3085
₹120.00 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 480uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
The MAX3085 is a half-duplex high speed transceiver for RS - 485 and RS422 communication. IC contains one driver and one receiver. The MAX3085 has a fail-safe circuit, ensure logical high level of receiver output when receiver input is open or short. It can achieve error-free data transmission of up to 500kbps. The MAX3085 receiver has 1/8 unit load input impedance, allows up to 256 devices can be attached to the bus.
Applications
- RS-485/RS-422 transceiver
- Industrial process control
- Electric meter
- Industrial motor drive
- Automatic HVAC system
Key features
- ESD protection: +15kV HBM
- Fractional unit load allows up to 256 devices on the bus
- +5V operating voltage
- Data transmission up to 1Mbps
- Tri-state output
- SOP8 and DIP8 package
