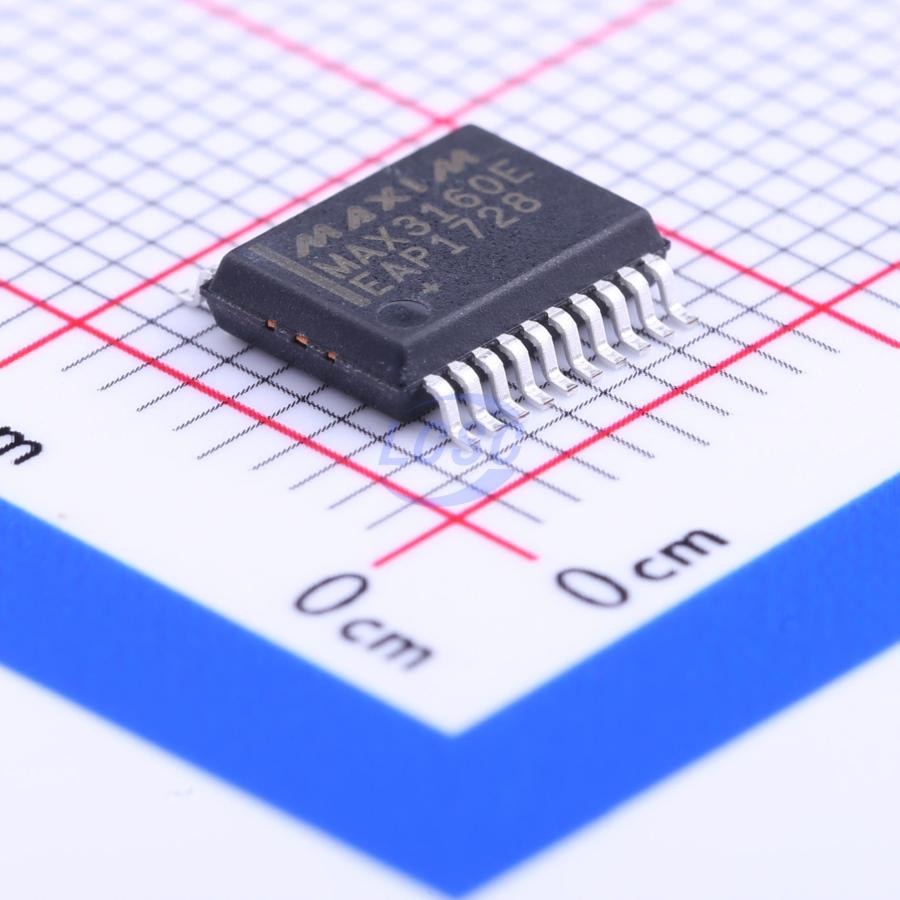

MAX3160EEAP+T

3V~5.5V SSOP-20-208mil Drivers, Receivers, Transceivers RoHS

SSOP-20-208milROHS3 CompliantActive

±15kV ESD-Protected, RS-232/RS-485/RS-422 Multiprotocol Transceivers

Manufacturer: MAXIM
Manufacturer part #: MAX3160EEAP+T
Store part #: C118484
Package / case: SSOP-20-208mil
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,312 in stock

#C118484

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹1,154.89	₹1,154.89
10+	₹995.74	₹9,957.40
30+	₹813.34	₹24,400.20
100+	₹732.03	₹73,203.00

Quantity (min 1)

1 × ₹1,154.89

₹1,154.89

excl. GST

₹1,362.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

MAX3160EEAP+T

₹1,154.89 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3V~5.5V
Data Rate: 250Kbps;1Mbps;10Mbps
Operating Temperature: -40℃~+85℃
Supply Current: 5.5mA
Quiescent Supply Current: 1uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.399 g

Overview

The MAX3160E/MAX3161E/MAX3162E are programmable RS- 232/RS- 485/RS- 422 multiprotocol transceivers. The MAX3160E/MAX3161E are pin programmable as a 2Tx/2Rx RS- 232 interface or a single RS- 485/RS- 422 transceiver. The MAX3162E is configured as a 2Tx/2Rx RS- 232 interface, and a single RS- 485/RS- 422 transceiver simultaneously. The MAX3160E/MAX3161E/MAX3162E feature enhanced electrostatic discharge (ESD) protection. All of the transmitter outputs and receiver inputs are protected to ± 15kV using the Human Body Model. All devices incorporate a proprietary low- dropout transmitter output stage, and an on- board dual charge pump to allow RS- 232- and RS- 485- /RS- 422- compliant performance from a +3V to +5.5V supply. These devices also feature pin- selectable transmitter slew rates for RS- 232 and RS- 485/RS- 422 modes. Slew- rate limiting minimizes EM and reduces reflections caused by improperly terminated cables, allowing error- free data transmission up to 250kbps. Disabling slew- rate limiting allows these devices to transmit at data rates up to 10Mbps in RS- 485/RS- 422 mode and up to 1Mbps in RS- 232 mode. The MAX3160E/MAX3162E offer a flow- through pinout that facilitates board layout. The MAX3160E/MAX3161E/MAX3162E are available in tiny SSOP packages and operate up to - 40℃ to +85℃ temperature ranges.

Applications

Point- of- Sales Equipment
Peripherals
Industrial Controls
Networking
RS- 232 to RS- 485
Security Systems
Interface Converters

Key features

Flexible Options for RS-232 and RS-422/485 Operation In One Package
Simultaneous 2Tx/2Rx RS-232 and Half-Duplex RS-485 Transceiver Operation (MAX3162E)
Pin-Programmable As Either 2Tx/2Rx RS-232 or Half/Full RS-485 Transceiver (MAX3160E, MAX3161E)
Integrated Protection Increases Robustness
High ± 15kV ESD HBM per JEDEC JS-001-2012
Transmitters and Receivers Protected Against Wiring Faults
True Fail-Safe Receiver Prevents False Transition on Receiver Input Short or Open
Short-Circuit Protection Over the Entire Common- Mode Voltage Range
Thermal Protection from Excessive Power Dissipation
Slew Rate Limiting Minimizes EM and Reduces Cable Reflections
Integrated Charge Pump Circuitry Saves Board Space
Eliminates the Need for a Bipolar ± 12V Supply
Enables Single Supply Operation From +3V to +5.5V Voltage Supply
1μA Shutdown Supply Current Saves Power
Allows Up To 256 Transceivers on the Bus
