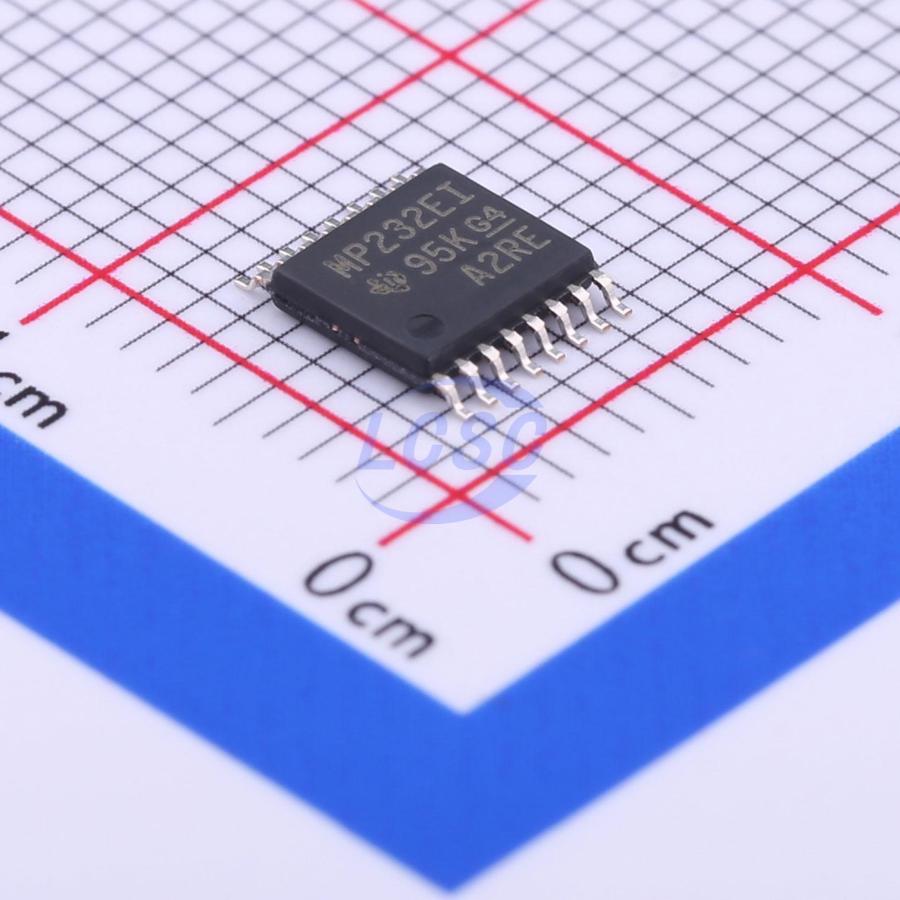

MAX3232EIPWR

Provides ESD protection for RS-232 bus pins. The MAX3232E device consists of two line drivers, two line receivers, and a dual charge pump circuit, featuring ±15kV IEC ESD protection pin-to-pin (serial port connection pins, including GND). The device meets TIA/EIA-232-F requirements and provides the electrical interface between asynchronous communication controllers and serial port connectors. The charge pump and four small external capacitors enable operation from a single 3V to 5.5V power supply. The device operates at data signaling rates up to 250kbit/s, with a maximum driver output slew rate of 30V/μs.

Applications

• Industrial PC
• Wired networking
• Data center and enterprise computing
• Battery-powered systems
• Laptops
• PDAs
• Handheld devices

Key features

• ESD protection for RS-232 bus pins
• ±15kV (HBM)
• ±8kV (IEC61000-4-2, Contact Discharge)
• ±15kV (IEC61000-4-2, Air-Gap Discharge)
• Meets or exceeds TIA/EIA-232-F and ITU V.28 requirements
• Powered by 3V to 5.5V VCC supply
• Data rate up to 250kbit/s
• Two drivers and two receivers
• Low supply current: 300 μA (typical)
• External capacitors: 4×0.1 μF
• Accepts 5V logic inputs with 3.3V supply
• Pin-compatible with alternative high-speed devices (1Mbit/s)
