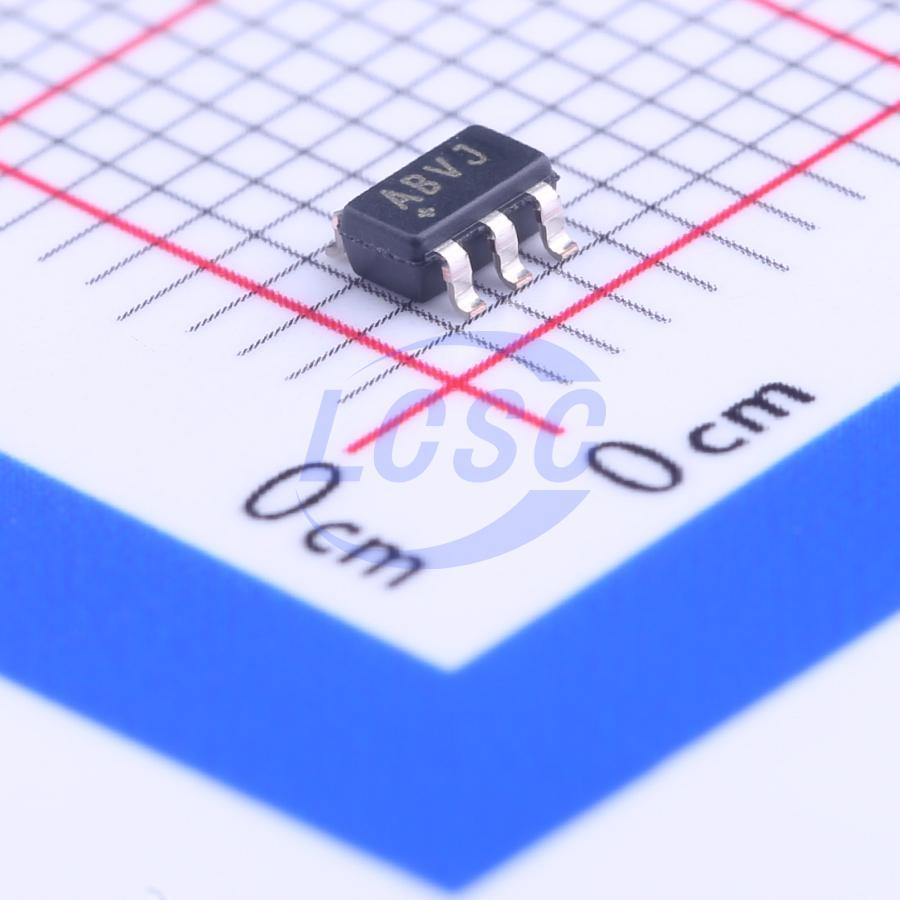

MAX3295AUT+T

The MAX3293/MAX3294/MAX3295 low- power, high- speed transmitters for RS- 485/RS- 422 communication operate from a single +3.3V power supply. These devices contain one differential transmitter. The MAX3295 transmitter operates at data rates up to 20Mbps, with an output skew of less than 5ns, and a guaranteed driver propagation delay below 25ns. The MAX3293 (250kbps) and MAX3294 (2.5Mbps) are slew- rate limited to minimize EMI and reduce reflections caused by improperly terminated cables. The MAX3293/MAX3294/MAX3295 output level is guaranteed at +1.5V with a standard 54Ω load, compliant with RS- 485 specifications. The transmitter draws 5mA of supply current when unloaded, and 1μA in low- power shutdown mode DE = GND Hot- swap circuitry eliminates false transitions on the data cable during circuit initialization or connection to a live backplane, and short- circuit current limiting and thermal- shutdown circuitry protect the driver against excessive power dissipation. The MAX3293/MAX3294/MAX3295 are offered in a 6- pin SOT23 package, and are specified over the automotive temperature range.

Applications

• RS- 485/RS- 422 Communications
• Clock Distribution
• Telecom Equipment
• Automotive Security Equipment
• Point- of- Sale Equipment
• Industrial Control

Key features

• Space- Saving 6- Pin SOT23 Package
• 250kbps/2.5Mbps/20Mbps Data Rates Available
• Operate from a Single +3.3V Supply
• ESD Protection ±9kV Human Body Model
• Slew- Rate Limited for Errorless Data Transmission (MAX3293/MAX3294)
• 1A Low- Current Shutdown Mode
• - 7V to +12V Common- Mode Input Voltage Range
• Current Limiting and Thermal Shutdown for Driver- Overload Protection
• Hot- Swap Inputs for Telecom Applications
• Automotive Temperature Range - 40°C to +125°C
