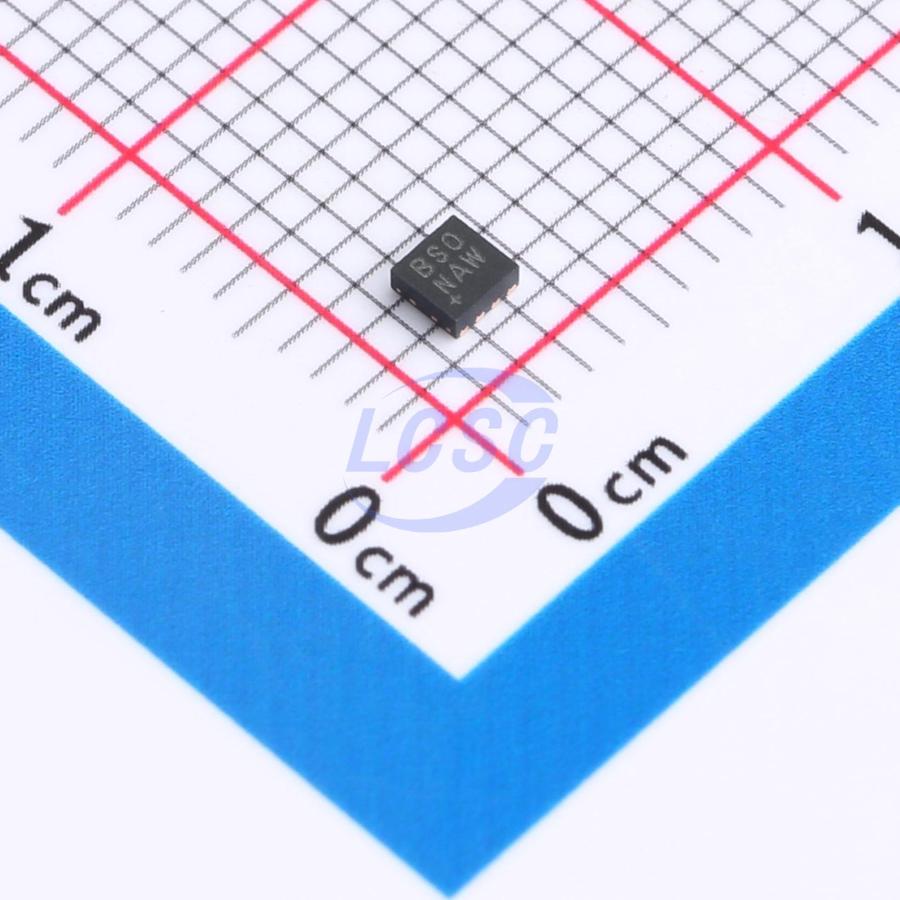

MAX38902BATA+T

The MAX38902A/B/C/D are low-noise, linear regulators that deliver up to 500 mA of output current with only 12 μV_RMS of output noise from 10 Hz to 100 kHz. These regulators maintain ±1% output accuracy over a wide input voltage range, requiring only 100 mV of input-to-output headroom at full load. The 365 μA no-load supply current is independent of drop-out voltage. The MAX38902A have nine, pin-selectable output voltages 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 4.0V, and 5V. The MAX38902B/C have a resistor adjustable output voltage in the range of 0.6V to 5.3V. The MAX38902B also includes an active-low POK output. The MAX38902D have factory-preset output voltages ranging from 0.7V to 5V. All versions include a programmable output soft-start rate, output overcurrent and thermal overload protection. The MAX38902A/B are offered in an 8-pin TDFN package, while the MAX38902C/D are offered in a 2×3, 0.4 mm wafer-level package (WLP).

Applications

• Communication Circuitry
• Audio Systems
• High-Resolution Data Acquisition Systems

Key features

• 1.7V to 5.5V Input Voltage Range
• 0.6V to 5.3V Output Voltage Range
• 12 μV RMS Output Noise, 10Hz to 100kHz
• 365 μA Operating Supply Current
• 70dB PSRR at 10kHz
• 500 mA Maximum Output Current
• ±1% DC Accuracy Over Load, Line, and Temperature
• 100 mV (Max) Dropout at 500 mA Load (3.6V_IN)
• <0.1 μA Shutdown Supply Current
• Stable with 2 μF (Min) Output Capacitance
• Programmable Soft-Start Rate
• Overcurrent and Overtemperature Protection
• Output-to-Input Reversed Current Protection
• POK Output
• Pin-to-Pin compatible with MAX8902 (TDFN)
• 1.22 mm×0.82 mm, 2×3 Bump, 0.4 mm Pitch WLP, or 2 mm×2 mm 8-pin TDFN Package
