MAXIM

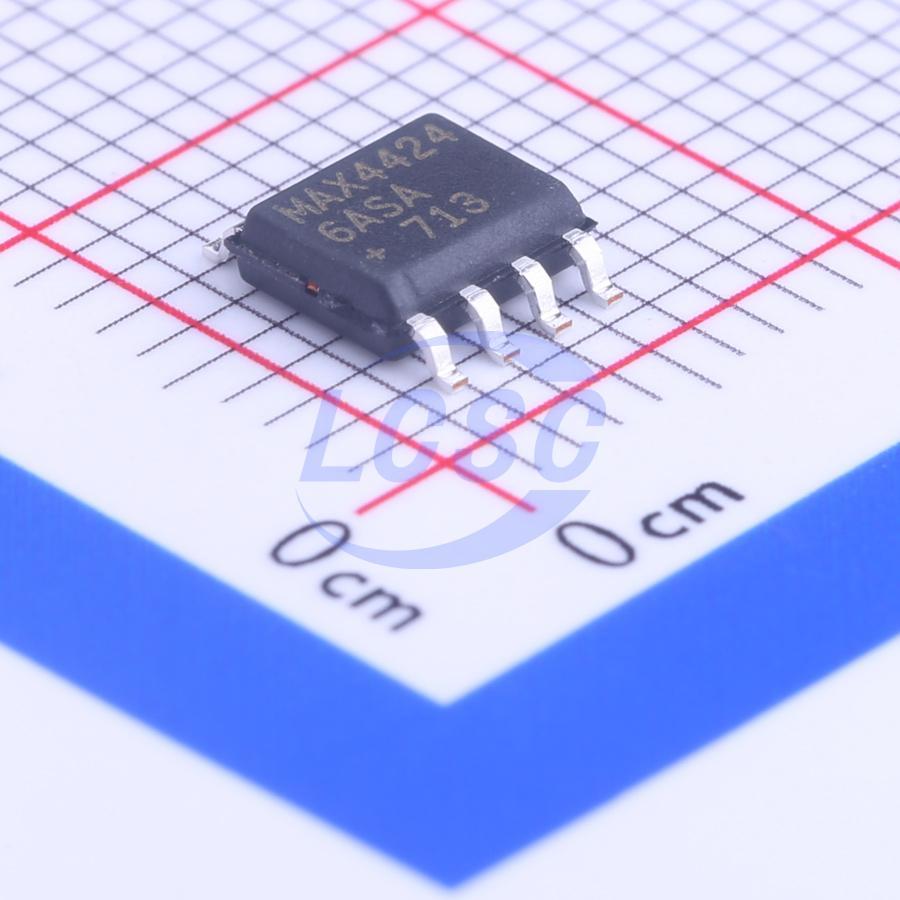

MAX44246ASA+T

40mA 2 5uV 3.8V/us 166dB 300pA 420uA 5MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

36V, Low-Noise, Precision, Single/Quad/Dual Op Amps

Manufacturer: MAXIM
Manufacturer part #: MAX44246ASA+T
Store part #: C108692
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,210 in stock

#C108692

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹187.55	₹187.55
10+	₹160.45	₹1,604.50
30+	₹145.70	₹4,371.00
100+	₹128.79	₹12,879.00
500+	₹116.00	₹58,000.00
1,000+	₹112.75	₹1,12,750.00

Quantity (min 1)

1 × ₹187.55

₹187.55

excl. GST

₹221.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX44246ASA+T

₹187.55 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 5uV
Slew Rate: 3.8V/us
Input Offset Current(Ios): 1.2nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 166dB
Ib - Input Bias Current: 300pA
Input Offset Voltage Drift(Vos TC): 20nV/℃
Quiescent Current: 420uA
Gain Bandwidth Product: 5MHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 9nV/√Hz@1kHz
Dual Supply: -18V~-1.35V;1.35V~18V
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.219 g

Overview

The MAX44241/MAX44243/MAX44246 are 36V, ultraprecision, low-noise, low-drift, single/quad/dual operational amplifiers that offer near-zero DC offset and drift through the use of patented chopper stabilized and auto-zeroing techniques. This method constantly measures and compensates the input offset, eliminating drift over time and temperature and the effect of 1/f noise. These single/quad/dual devices feature rail-to-rail outputs, operate from a single 2.7V to 36V supply or dual ±1.35V to ±18V supplies, and consume only 0.42mA per channel, with only 9nV/√Hz input-referred voltage noise. The ICs are available in 8-pin μMAX or SO packages and are rated over the -40°C to +125°C temperature range.

Applications

Reduces Noise-Sensitive Precision Applications
Eliminates Cost of Calibration with Increased Accuracy and Patented Auto-Zero Circuitry
Low 0.55mA Per Channel (max) Quiescent Current
Wide Supply for High-Voltage Front-Ends
Rail-to-Rail Output

Key features

Near-zero DC offset and drift through patented chopper stabilized and auto-zeroing techniques
Rail-to-rail outputs
Operate from a single 2.7V to 36V supply or dual ±1.35V to ±18V supplies
Consume only 0.42mA per channel
9nV/√Hz input-referred voltage noise
Available in 8-pin μMAX or SO packages
Rated over the -40°C to +125°C temperature range
