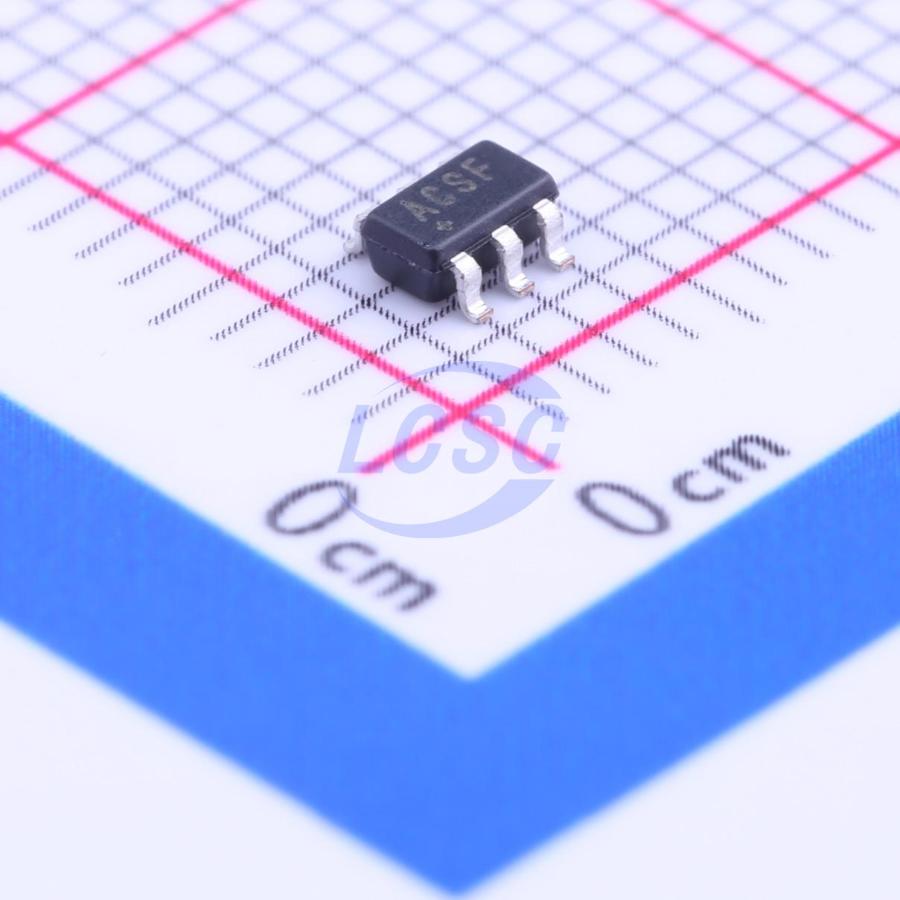

36V, Input Common-Mode, High-Precision, Low-Power Current-Sense Amplifier

Manufacturer: MAXIM
Manufacturer part #: MAX44284FAUT+T
Store part #: C143475
Package / case: SOT-23-6
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,718 in stock

#C143475

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹244.79	₹244.79
10+	₹206.85	₹2,068.50
30+	₹185.82	₹5,574.60
100+	₹162.40	₹16,240.00
500+	₹142.24	₹71,120.00
1,000+	₹137.47	₹1,37,470.00

Quantity (min 1)

1 × ₹244.79

₹244.79

excl. GST

₹288.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX44284FAUT+T

₹244.79 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Vcm - Common Mode Voltage: -100mV~36V
Vos - Input Offset Voltage: 2uV
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 140dB
Ib - Input Bias Current: 2nA
Input Offset Voltage Drift(Vos TC): 50nV/℃
-3dB Bandwidth: 3kHz
Quiescent Current: 21uA
Gain: 50V/V
Features: High-side detection;Low-side detection;Bidirectional detection;Input filter;Enable/shutdown function;Zero drift / auto-zero
Input Voltage Noise Density: 150nV/√Hz@1kHz
Differential Voltage: ±40V
Single Supply: 1.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

The MAX44284 is a high-side, current-sense amplifier that operates with a 1.7V to 5.5V single supply and is optimized for very low power operation with only 21μA of quiescent current. The MAX44284 offers precision accuracy specifications of 2μV VOS and gain error of 0.05%. The device features an input common-mode voltage range from -0.1V to +36V. This current-sense amplifier has a voltage output and is offered in four different gain versions. The MAX44284 is offered in small 6-bump, 0.4mm-pitch WLP (1.3mm×0.9mm) and 6-pin SOT23 packages and is specified for operation over the -40°C to +125°C automotive temperature range.

Applications

Smartphones and Tablets
Notebook Computers
DC-DC Current Sensing in Power Management
Portable-/Battery-Powered Systems
Medical Pulse Oximeters and Infusion Pumps
Base-Stations

Key features

Supports Use of Small Current-Sense Resistors to Improve Power-Supply Conversion Efficiency and Measurement Accuracy
Input Bias Current of 80nA (max)
Very Low 2μV Input Offset Voltage (MAX44284F/H)
Extremely Low 50nV/°C Input Offset Tempco Coefficient
-0.1V to +36V Wide Input Common-Mode Range
Low 0.05% Gain Error
Extends Battery Life
Low Supply Current of 21μA
1.7V to 5.5V Single Supply
Shutdown Input (Independent of VDD)
Four Fixed Gain Options Simplify Design
