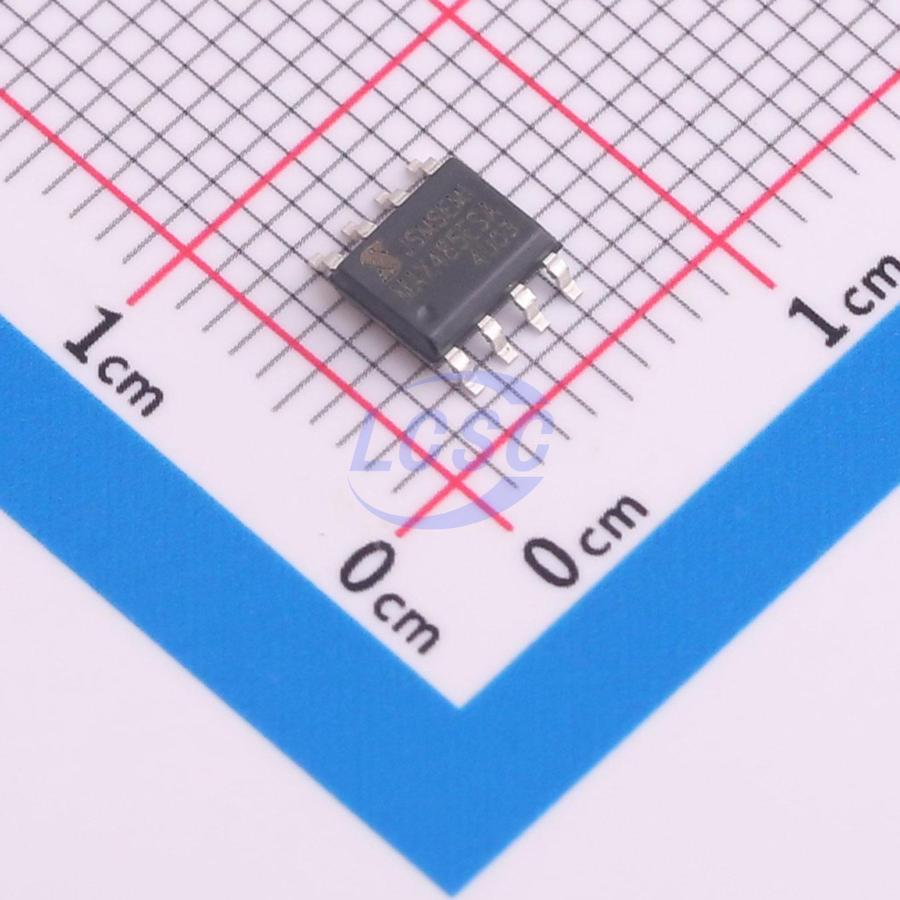

max485ESA-JSM
5V Transceiver 2.5Mbps 32 SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
Low-Power Slew-Rate-Limited RS-485/RS-422 Transceivers
- Manufacturer
- JSMSEMI
- Manufacturer part #
- max485ESA-JSM
- Store part #
- C2687394
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,380 in stock
#C2687394
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.51 | ₹162.55 |
| 50+ | ₹25.43 | ₹1,271.50 |
| 150+ | ₹22.39 | ₹3,358.50 |
| 500+ | ₹18.34 | ₹9,170.00 |
| 2,500+ | ₹16.64 | ₹41,600.00 |
| 5,000+ | ₹15.64 | ₹78,200.00 |
5 × ₹32.51
₹162.55
excl. GST
₹191.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
max485ESA-JSM
₹162.55 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Number of Nodes
- 32
- Operating Temperature
- 0℃~+70℃
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 900uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.232 g
Overview
The JSM-MAX485 is low-power transceivers for RS-485 and RS422 communication. IC contains one driver and one receiver. The driver slew rates of the JSM-MAX485 is not limited, allowing them to transmit up to 2.5Mbps. These transceivers draw between 120μA and 500μA of supply current when unloaded or fully loaded with disabled drivers. All parts operate from a single 5V supply. Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit. The JSM-MAX485 is designed for half-duplex applications.
Key features
- Low Quiescent Current: 300μμ
- -7V to +12V Common-Mode Input Voltage Range
- Three-State Outputs
- 30ns Propagation Delays, 5ns Skew
- Full-Duplex and Half-Duplex Versions Available
- Allows up to 32 Transceivers on the Bus
- Data rate: 2.5 Mbps
- Current-Limiting and Thermal Shutdown for Driver Overload Protection
