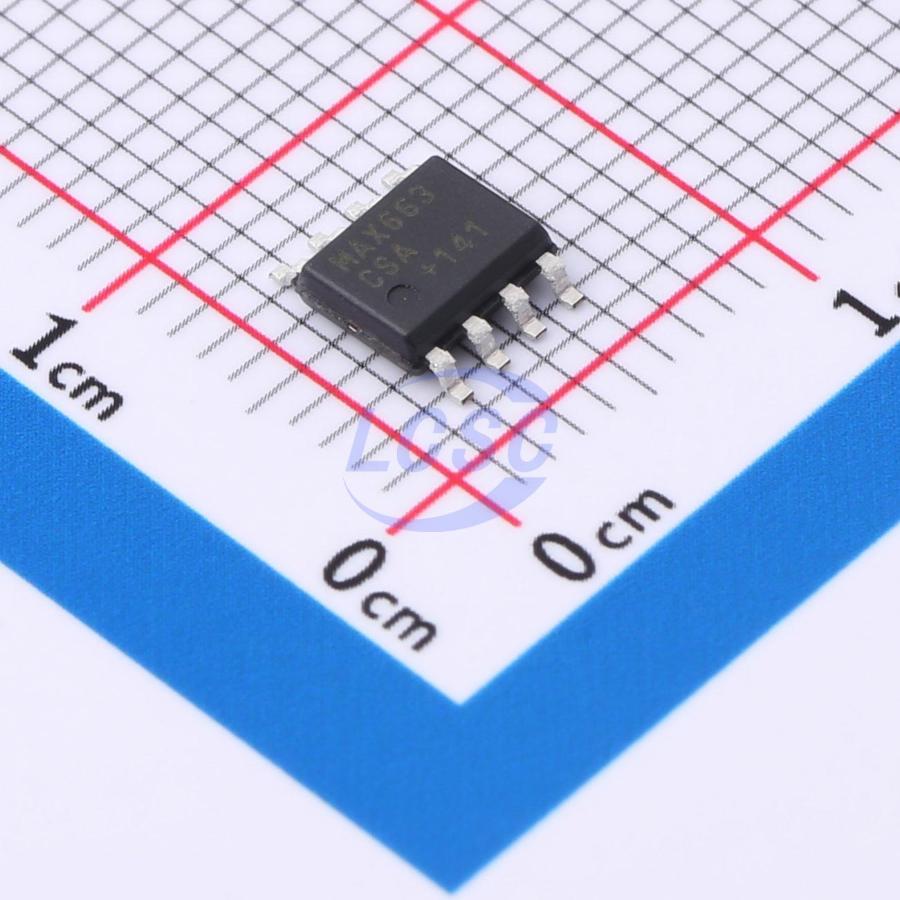

MAX663CSA+

The MAx663/664/666 CM0S voltage regulators have a maximum quiescent current of 12μA. They can be used either as 5 volt, fixed output regulators with no additional components, or can be adjusted from 1.3V to 16V using two external resistors. Fixed or adjustable operation is automatically selected via the V_SET input. The MAx66X series, ideally suited for battery powered systems, has an input voltage range of 2 to 46.5V, an output current capability of 40mA, and can operate with low input-output differentials. Other features include curent limiting and low power shut down. The MAx663 positive regulator and MAx664 negative regulator are both pin and electrically compatible with the ICL7663 and ICL7664 and can plug-in replace these devices, improving performance and eliminating the need for external resistors in 5V applications. The MAx666 has a positive output and includes on-chip low-battery detection circuitry.

Applications

• Handheld Instruments
• LCD Display Systems
• Pagers
• Remote Data Acquisition and Telemetry
• Radio Controlled Devices
• Long-life Battery Powered Systems

Key features

• Dual Mode Operation: Fixed +5V or Adjustable from +1.3V to +16V
• Low Power CMos: 12μA Max Quiescent Current
• 40mA Output Current, with Current Limiting
• Pin-Compatible Upgrade of ICL7663 and ICL7664
• +2V to +16.5V Operating Range
• Low Battery Detector (MAX666)
• No Output Over-Shoot on Power Up
