GRDatasheet (PDF)

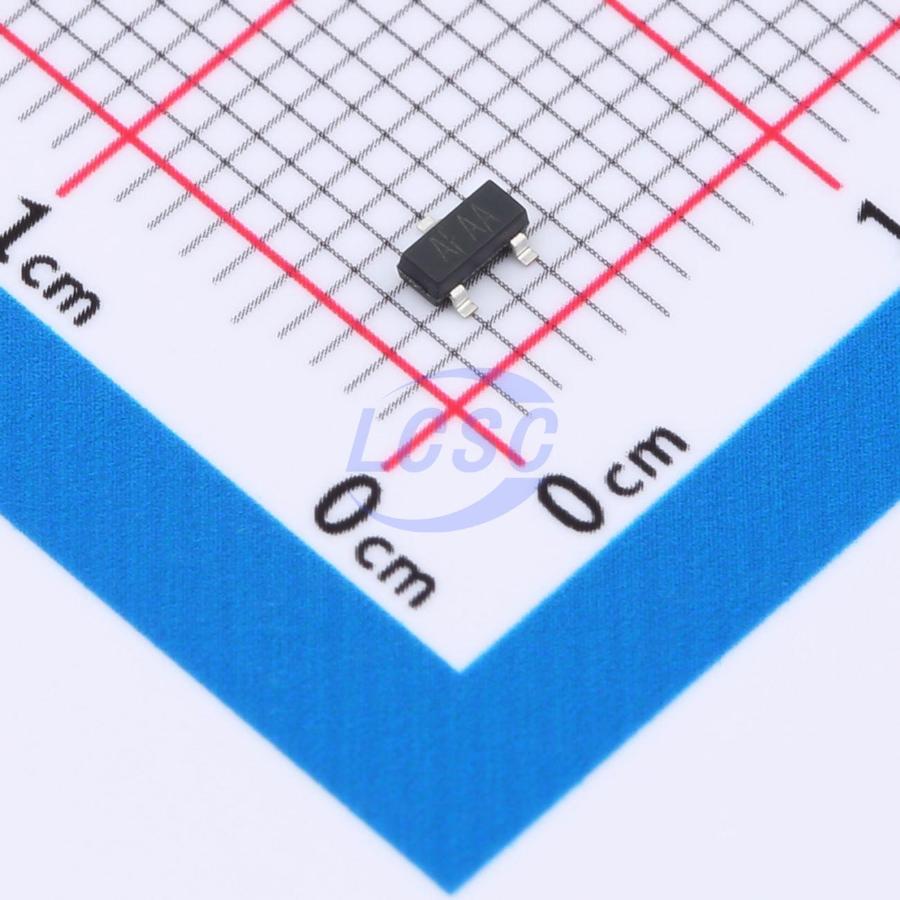

MAX809R
Supervisor Push-Pull 1 Channel SOT-23
SOT-23RoHSActive
Low-Voltage Reset Detector
- Manufacturer
- GR
- Manufacturer part #
- MAX809R
- Store part #
- C19631717
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,720 in stock
#C19631717
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.40 | ₹54.00 |
| 100+ | ₹4.25 | ₹425.00 |
| 300+ | ₹3.68 | ₹1,104.00 |
| 3,000+ | ₹3.24 | ₹9,720.00 |
| 6,000+ | ₹2.90 | ₹17,400.00 |
| 9,000+ | ₹2.73 | ₹24,570.00 |
10 × ₹5.40
₹54.00
excl. GST
₹63.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX809R
₹54.00 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Push-pull
- Reset Timeout
- 500ms
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The MAX809xx series is a three-terminal low-voltage reset detection monitor implemented using digital system circuit design technology, providing a reset monitoring signal for the host processor. This series of reset detection monitors can monitor fixed voltages from 1.0V to 5.0V, with simple application requiring no external components.
Applications
- Battery-powered devices
- Non-volatile RAM signal storage protector
- Power failure detector
- Critical MP power supply monitoring
- Computers and microprocessor systems
- Embedded systems
Key features
- Low power consumption: 2uA (typical)
- Wide operating voltage range: 1V~6.0V
- VCC transient noise immunity
- No external components required
- Built-in reset delay time: 500ms (typical)
- High accuracy reset voltage: ±2.5%
- Compact package: SOT23
