MSKSEMIDatasheet (PDF)

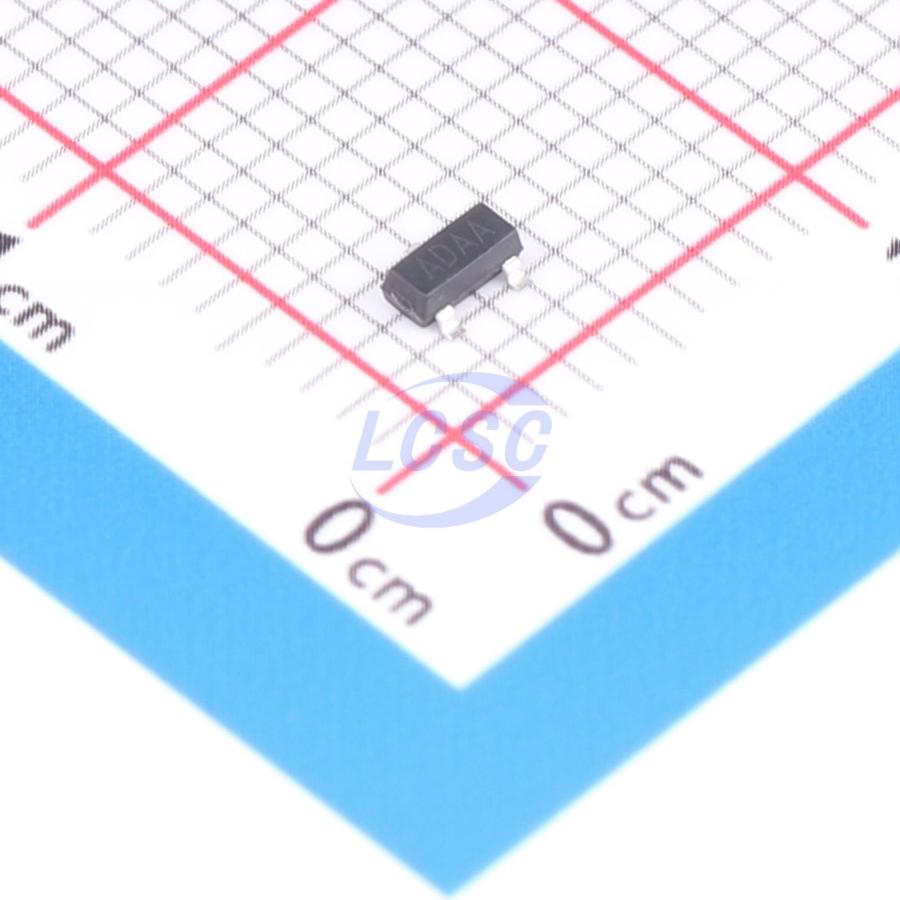

MAX809SEUR+MSK
1V~6V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MAX809SEUR+MSK
- Store part #
- C50385408
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,885 in stock
#C50385408
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.48 | ₹87.40 |
| 50+ | ₹13.89 | ₹694.50 |
| 150+ | ₹12.09 | ₹1,813.50 |
| 500+ | ₹10.74 | ₹5,370.00 |
| 3,000+ | ₹9.67 | ₹29,010.00 |
| 6,000+ | ₹9.13 | ₹54,780.00 |
5 × ₹17.48
₹87.40
excl. GST
₹103.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX809SEUR+MSK
₹87.40 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- standby current
- 500nA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 4.367 g
Overview
The MAX809xEUR+MSK series is a three-pin low-voltage reset detection monitor implemented using digital system circuit design technology, providing reset supervisory signals for host processors. This series monitors fixed voltages from 1.0V to 5.0V, is simple to use, and requires no external components.
Applications
- Battery-powered devices
- Power failure detectors
- Computers and microprocessors
- Non-volatile RAM signal storage protectors
- Critical MP power supply monitoring
- Embedded systems
Key features
- Low power consumption: 5.5μA @ VCC=6V (typical)
- Wide operating voltage range: 1V ~ 6.0V
- VCC transient noise immunity
- No external components required
- Built-in reset delay time: 200ms (typical)
- High-accuracy reset voltage: ±2.5%
- Compact package: SOT-23
