MAXIMDatasheet (PDF)

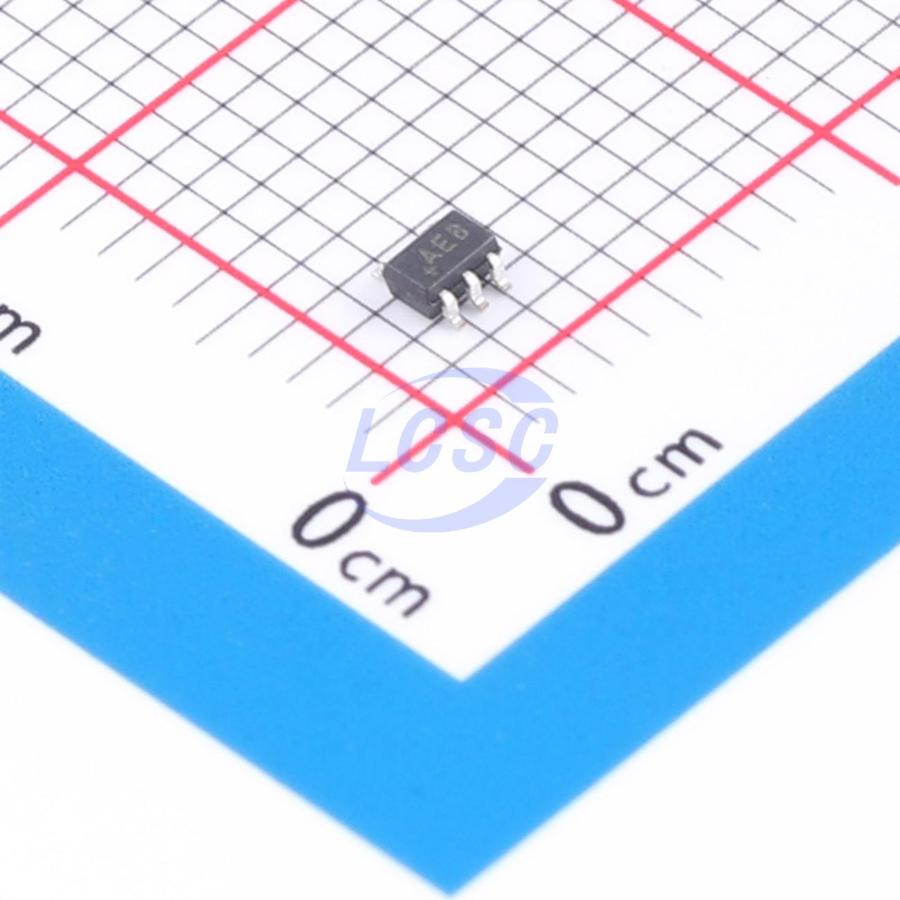

MAX8510EXK25+T
Positive Fixed SC70-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SC70-5ROHS3 CompliantActive
Ultra-Low-Noise, High PSRR, Low-Dropout, 120mA Linear Regulators
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX8510EXK25+T
- Store part #
- C489784
- Package / case
- SC70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C489784
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹175.85 | ₹175.85 |
| 10+ | ₹171.30 | ₹1,713.00 |
| 30+ | ₹168.48 | ₹5,054.40 |
| 100+ | ₹165.45 | ₹16,545.00 |
1 × ₹175.85
₹175.85
excl. GST
₹207.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX8510EXK25+T
₹175.85 for 1 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 120mA
- Operating Voltage
- 6V
- Features
- Enable control;Noise bypass terminal;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
The MAX8510/MAX8511/MAX8512 ultra-low-noise, low dropout (LDO) linear regulators are designed to deliver up to 120mA continuous output current. These regulators achieve a low 120mV dropout for 120mA load current. The MAX8510 uses an advanced architecture to achieve ultra-low output voltage noise of 11μV RMS and PSRR of 54dB at 100kHz. The MAX8511 does not require a bypass capacitor, hence achieving the smallest PC board area. The MAX8512’s output voltage can be adjusted with an external divider. The MAX8510/MAX8511 are preset to a variety of voltag es in the 1.5V to 4.5V range. Designed with a P-channel MOSFET series pass transistor, the MAX8510/MAX8511/ MAX8512 maintain very low ground current (40μA). The regulators are designed and optimized to work with low-value, low-cost ceramic capacitors. The MAX8510 requires only 1μF (typ) of output capacitance for stability with any load. When disabled, current consumption drops to below 1μA. Package options include a 5-pin SC70 and a tiny 2mm x 2mm x 0.8mm TDFN package.
Applications
- Cellular and Cordless Phones
- PDA and Palmtop Computers
- Base Stations
- Bluetooth Portable Radios and Accessories
- Wireless LANs
- Digital Cameras
- Personal Stereos
- Portable and Battery-Powered Equipment
Key features
- Space-Saving SC70 and TDFN (2mm×2mm) Packages
- 11μVRMS Output Noise at 100Hz to 100kHz Bandwidth (MAX8510)
- 78dB PSRR at 1kHz (MAX8510)
- 120mV Dropout at 120mA Load
- Stable with 1μF Ceramic Capacitor for Any Load
- Guaranteed 120mA Output
- Only Need Input and Output Capacitors (MAX8511)
- Output Voltages: 1.5V, 1.8V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3V, 3.3V, 4.5V (MAX8510/MAX8511) and Adjustable (MAX8512)
- Low 40μA Ground Current
- Excellent Load/Line Transient
- Overcurrent and Thermal Protection
