MAXIMDatasheet (PDF)

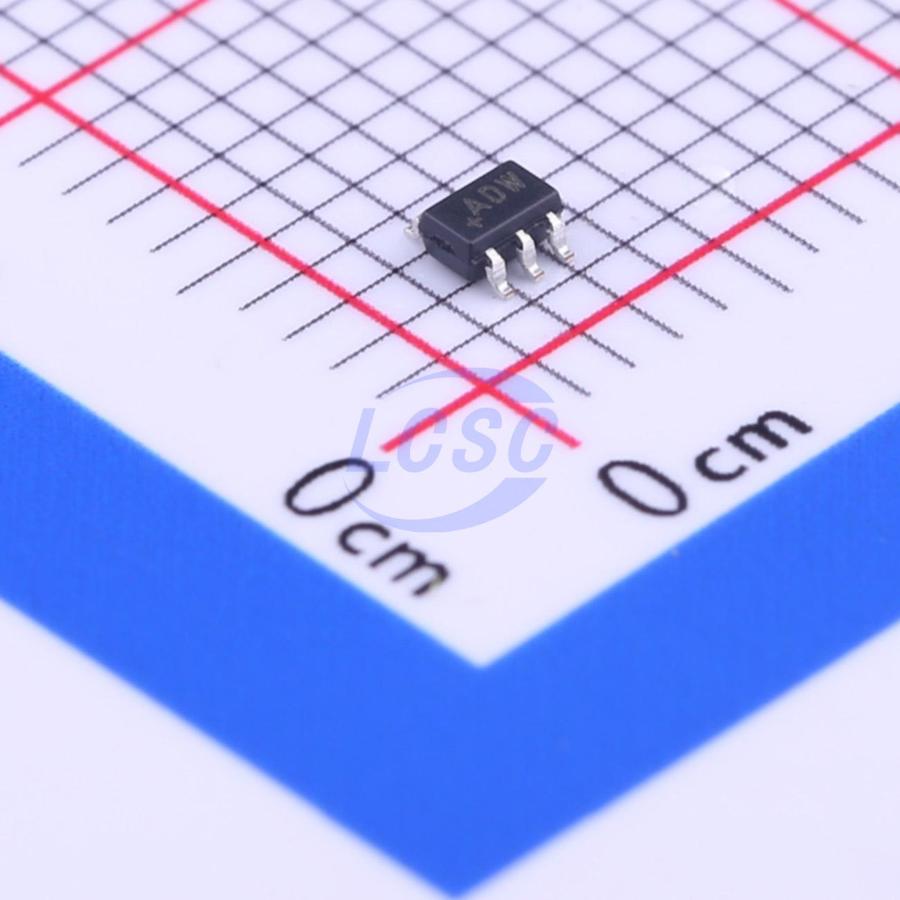

MAX8512EXK+T
1.5V~4.5V Positive Adjustable SC70-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SC70-5ROHS3 CompliantActive
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX8512EXK+T
- Store part #
- C242520
- Package / case
- SC70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
43 in stock
#C242520
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹234.90 | ₹234.90 |
| 10+ | ₹229.91 | ₹2,299.10 |
| 30+ | ₹226.43 | ₹6,792.90 |
| 100+ | ₹205.79 | ₹20,579.00 |
1 × ₹234.90
₹234.90
excl. GST
₹277.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX8512EXK+T
₹234.90 for 1 + GST
Specifications
- Output Voltage
- 1.5V~4.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 220uA
- Output Configuration
- Positive
- Output Current
- 120mA
- Operating Voltage
- 6V
- Features
- Enable control;Noise bypass terminal;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
Applications
- Cellular and Cordless Phones
- PDA and Palmtop Computers
- Base Stations
- Bluetooth Portable Radios and Accessories
- Wireless LANs
- Digital Cameras
- Personal Stereos
- Portable and Battery-Powered Equipment
Key features
- Ultra-low-noise, low-dropout (LDO) linear regulators designed to deliver up to 120mA continuous output current
- Achieve a low 120mV dropout for 120mA load current
- The MAX8510 uses an advanced architecture to achieve ultra-low output voltage noise of 11µVRMS and PSRR of 54dB at 100kHz
- The MAX8511 does not require a bypass capacitor, achieving the smallest PC board area
- The MAX8512’s output voltage can be adjusted with an external divider
- The MAX8510/MAX8511 are preset to a variety of voltages in the 1.5V to 4.5V range
- Designed with a P-channel MOSFET series pass transistor, maintain very low ground current (40µA)
- Designed and optimized to work with low-value, low-cost ceramic capacitors
- The MAX8510 requires only 1µF (typ) of output capacitance for stability with any load
- When disabled, current consumption drops to below 1µA
- Package options include a 5-pin SC70 and a tiny 2mm x 2mm x 0.8mm TDFN package
- 11µVRMS Output Noise at 100Hz to 100kHz Bandwidth (MAX8510)
- 78dB PSRR at 1kHz (MAX8510)
- Stable with 1µF Ceramic Capacitor for Any Load
- Guaranteed 120mA Output
- Only Need Input and Output Capacitors (MAX8511)
- Output Voltages: 1.5V, 1.8V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3V, 3.3V, 4.5V (MAX8510/MAX8511) and Adjustable (MAX8512)
- Low 40µA Ground Current
- Excellent Load/Line Transient
- Overcurrent and Thermal Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX8892EXK+T#C3745773MAXIM · SC70-5 | MAXIM | SC70-5 | On request | ₹460.99 · 0 in stock | View |
