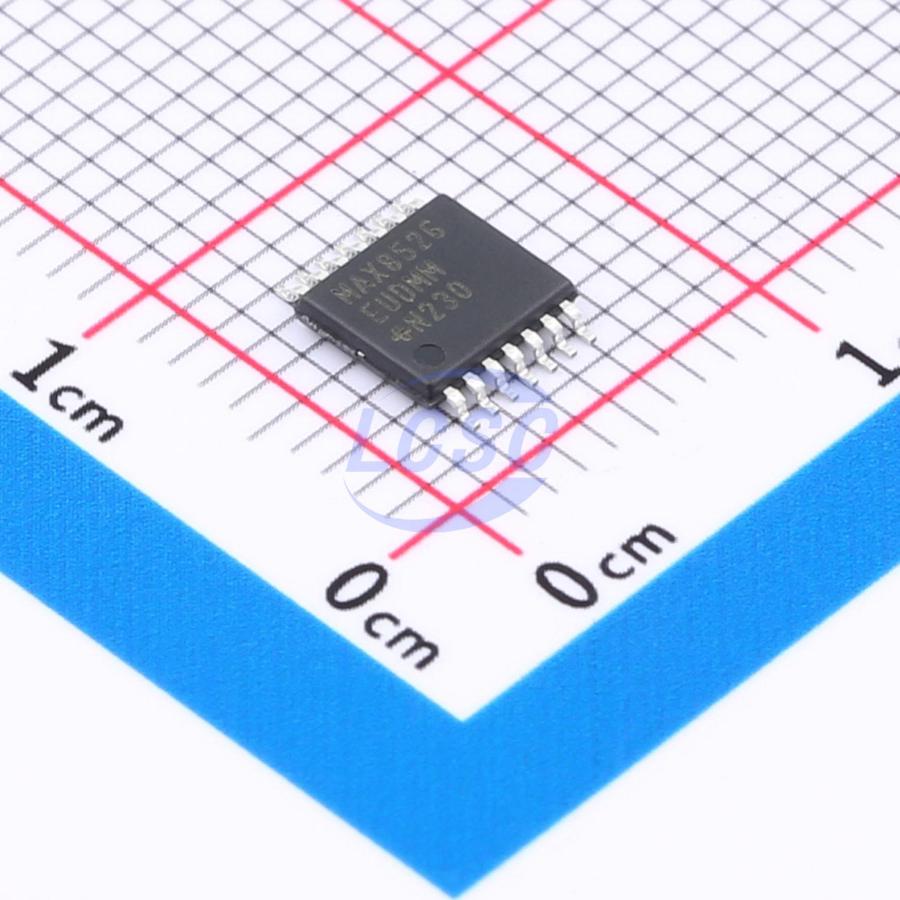

MAX8526EUD+

The MAX8526/MAX8527/MAX8528 low-dropout linear regulators operate from input voltages as low as 1.425V and are able to deliver up to 2A of continuous output current with a maximum dropout voltage of only 200mV. The output voltage can be set from 0.5V to (VIN - 0.2V) and is 1.4% accurate over load and line variations, from 0°C to +85°C. These regulators use small, 2.2μF ceramic input capacitors and 10μF ceramic output capacitors to deliver 2A output current. High bandwidth provides excellent transient response and limits the output voltage deviation to 45mV for a 20mA to 2A load step, with only a 10μF ceramic output capacitor, and the voltage deviations can be reduced further by increasing the output capacitor. Designed with an internal p-channel MOSFET pass transistor, the MAX8526/MAX8527/MAX8528 feature low 500μA typical supply current during dropout conditions. Soft-start reduces inrush current. Other features include a logic-controlled shutdown mode, short-circuit protection, and thermal-overload protection. The MAX8527 features a power-OK (POK) output that transitions high when the regulator output is within ±10% of its nominal output voltage. The MAX8528 features a 150ms power-on reset (POR) output. The parts are packaged in a 14-pin TSSOP package, which includes an exposed pad for optimal power dissipation. The MAX8526/MAX8527/MAX8528 are low-input, lowdropout, PMOS regulators capable of delivering up to 2A of output current with as little as 200mV of headroom from input to output. The PMOS output stage can be driven from input voltages down to +1.425V without sacrificing stability or transient performance. Since this regulator has a PMOS output device, supply current is not a significant function of load or input headroom.

Applications

• Servers
• Networking
• Storage
• Base Stations
• Optical Modules
• Post Regulators
• Notebooks
• PDAs
• ATE

Key features

• 1.425V to 3.6V Input Voltage Range
• Guaranteed 200mV Dropout at 2A Output Current
• ±0.6% Initial Accuracy
• ±1.4% Output Accuracy over Load/Line/Temperature (0°C to +85°C)
• Compatible with Ceramic Capacitors
• Fast Transient Response
• 440μA Operating Supply Current
• <50μA Shutdown Supply Current
• Short-Circuit Protection
• Thermal-Overload Protection
• Soft-Start Limits Inrush Current
• 5mm x 6.4mm Footprint, 1.1mm Profile
