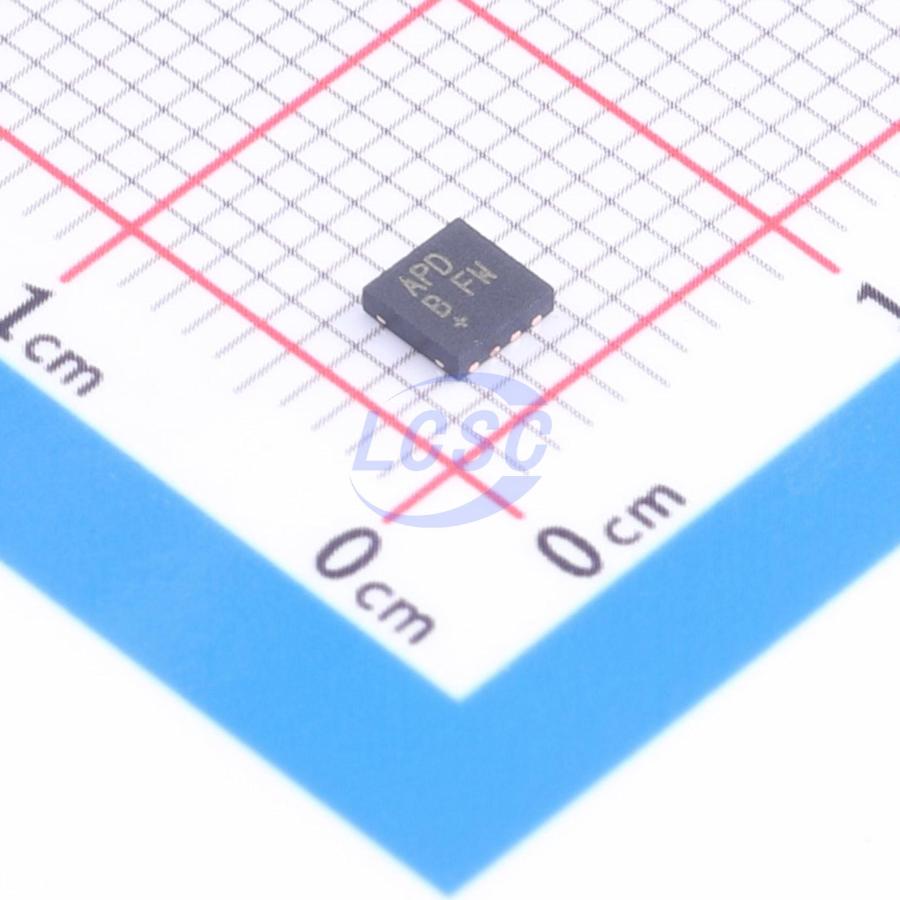

MAX8559ETAAA+T

Positive Fixed TDFN-8-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TDFN-8-EP(3x3)ROHS3 CompliantActive

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C3747885

Stock & price checked 3 days ago

Quantity (min 1)

1 × ₹599.28

₹599.28

excl. GST

₹707.15 incl. 18% GST

MAX8559ETAAA+T

₹599.28 for 1 + GST

Specifications

Output Voltage: 3.3V;3.3V
Number of Outputs: 2
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 180uA
Output Configuration: Positive
Output Current: 300mA;300mA
Operating Voltage: 6.5V
Features: Enable control;Short Circuit Protection;Thermal shutdown;Input under-voltage protection;Output discharge;Noise bypass terminal;Over Current Protection
Output Type: Fixed

The MAX8559 dual, low-noise, low-dropout (LDO) linear regulator operates from a 2.5V to 6.5V input voltage and delivers at least 300mA of continuous output current.
It offers low output noise and low dropout of only 60mV at 100mA.
Typical output noise for this device is 32µVRMS, and PSRR is 70dB at 10kHz.
Designed with an internal P-channel MOSFET pass transistor, the MAX8559 maintains a low 115µA supply current per LDO, independent of the load current and dropout voltage.
Other features include short-circuit protection and thermal-shutdown protection.
The MAX8559 includes two independent logic-controlled shutdown inputs and is capable of operating without a bypass capacitor to further reduce total solution size.
The MAX8559 is available in a miniature 8-bump UCSP (2mm×1mm) or 8-pin TDFN (3mm×3mm) package.
Two Low-Dropout-Voltage Regulators
Low 32µVRMS Output Noise
300mA Output Current for Each LDO
70dB PSRR at 10kHz
Independent Shutdown Controls
Low 60mV Dropout at 100mA Load
115µA Operating Supply Current per LDO
1.5V to 3.3V Factory-Preset Output
Small Ceramic Output Capacitors
Output Current Limit
Thermal-Overload and Short-Circuit Protection
1.95W Power-Dissipation Capability (TDFN)
2mm² Footprint (UCSP)
