MAXIMDatasheet (PDF)

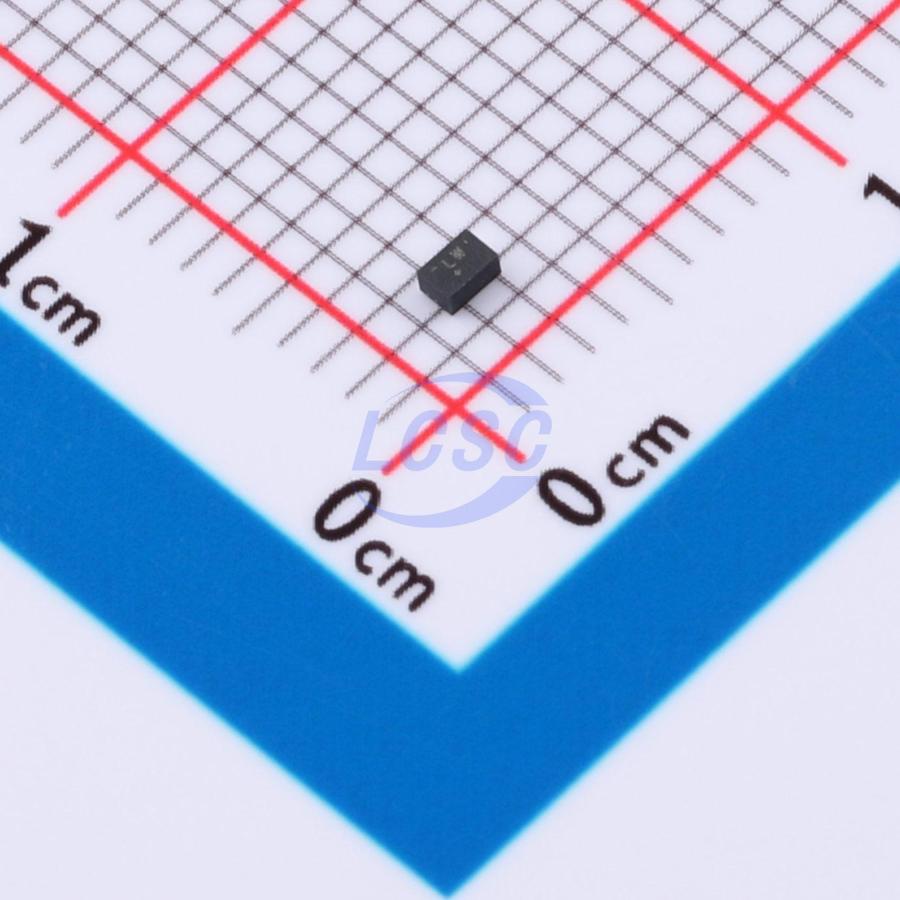

MAX8840ELT29+T
2.85V Positive Fixed UDFN-6(1x1.5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
UDFN-6(1x1.5)ROHS3 CompliantActive
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX8840ELT29+T
- Store part #
- C3751556
- Package / case
- UDFN-6(1x1.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C3751556
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹392.86 | ₹392.86 |
| 10+ | ₹383.86 | ₹3,838.60 |
| 30+ | ₹377.85 | ₹11,335.50 |
| 100+ | ₹371.83 | ₹37,183.00 |
1 × ₹392.86
₹392.86
excl. GST
₹463.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX8840ELT29+T
₹392.86 for 1 + GST
Specifications
- Output Voltage
- 2.85V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 6V
- Features
- Enable control;Noise bypass terminal;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
The MAX8840/MAX8841/MAX8842 are ultra-low-noise, low-dropout, low-quiescent current linear regulators designed for space-restricted applications. The parts are available with preset output voltages ranging from 1.5V to 4.5V. These devices can supply loads up to 150mA.
Applications
- Cellular and Cordless Phones
- PDA and Palmtop Computers
- Base Stations
- Bluetooth Portable Radios and Accessories
- Wireless LANs
- Digital Cameras
- Personal Stereos
- Portable and Battery-Powered Equipment
Key features
- The MAX8840/MAX8841/MAX8842 ultra-low-noise, lowdropout (LDO) linear regulators are designed to deliver up to 150mA continuous output current.
- These regulators achieve a low 120mV dropout for 120mA load current.
- The MAX8840 uses an advanced architecture to achieve ultra-low output voltage noise of 11µVRMS and PSRR of 54dB at 100kHz.
- The MAX8841 does not require a bypass capacitor, hence achieving the smallest PC board area.
- The MAX8842 output voltage can be adjusted with an external divider.
- The MAX8840/MAX8841 are preset to a variety of voltages in the 1.5V to 4.5V range.
- Designed with a p-channel MOSFET series pass transistor, the MAX8840/MAX8841/MAX8842 maintain very low ground current (40µA).
- The regulators are designed and optimized to work with low-value, low-cost ceramic capacitors.
- The MAX8840 requires only 1µF (typ) of output capacitance for stability with any load.
- When disabled, current consumption drops to below 1µA.
- The MAX8840/MAX8841/MAX8842 are available in a tiny 1.0mm×1.5mm×0.8mm µDFN.
