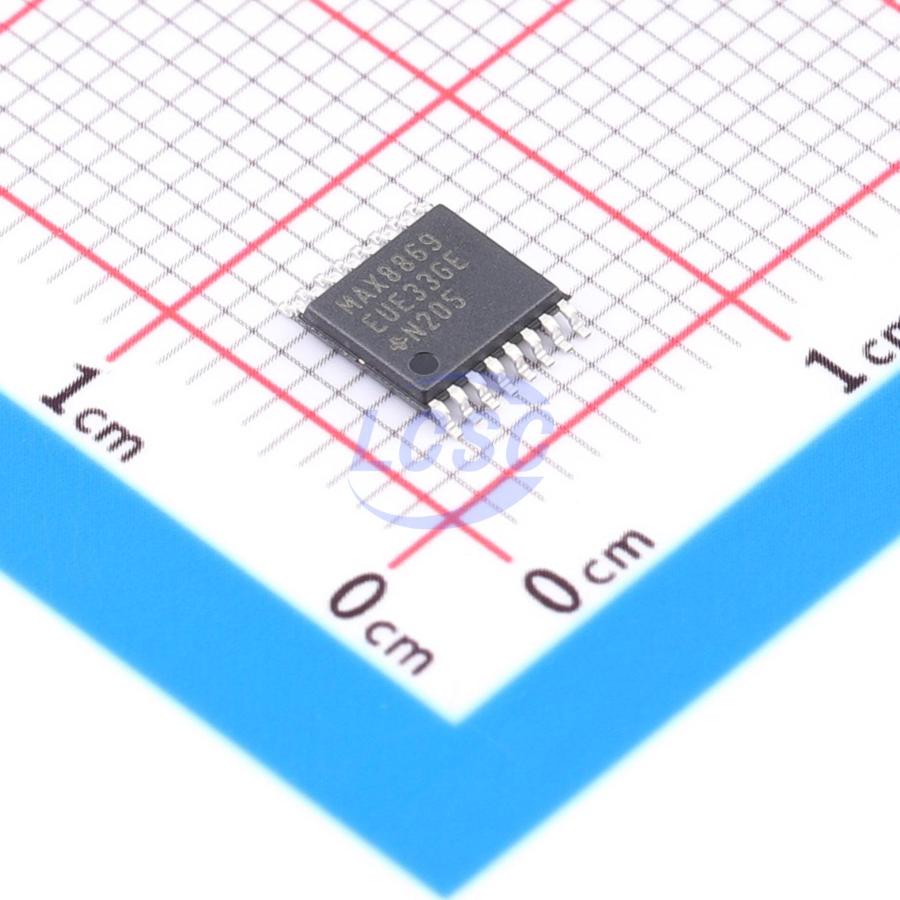

MAX8869EUE33+T

The MAX8869 low-dropout linear regulator operates from a +2.7V to +5.5V input and delivers a guaranteed 1A load current with a low 200mV dropout. The high-accuracy (±1%) output voltage is preset at +5V, +3.3V, +2.5V, +1.8V, or +1.0V or is adjustable from +0.8V to +5V with an external resistor-divider. The MAX8869 uses Microcap technology and requires only a small 1μF output capacitor for guaranteed stability. An internal PMOS pass transistor allows low 500μA supply current, making this regulator useful for networking and telecom hardware as well as battery-operated equipment. Other features include softstart, low-power shutdown, short-circuit protection, and thermal shutdown protection. The MAX8869 features Dual Mode operation, allowing a fixed output of +5V, +3.3V, +2.5V, +1.8V, or +1.0V, or adjustable output from +0.8V to +5.0V. The regulators are guaranteed to supply 1A of continuous output current with only 1μF of output capacitance.

Applications

• Telecom Hardware
• Network Equipment
• Mobile Phone Base Stations
• Personal Computers
• Notebook Computers

Key features

• Guaranteed 1A Output Current
• Stable with C OUT = 1μF
• Low 200mV Dropout at 1A
• ±1% Output Voltage Accuracy Preset at +5V, +3.3V, +2.5V, +1.8V, or +1.0V and Adjustable from +0.8V to +5.0V
• 54dB PSRR at 100kHz
• Adjustable Soft-Start
• 3ms Reset Output
• Foldback Output Current Limit
• Thermal Overload Protection
• High-Power 16-Pin TSSOP Package (1.5W) 30% Smaller than SOT223 (Only 1.1mm High)
