MAXIMDatasheet (PDF)

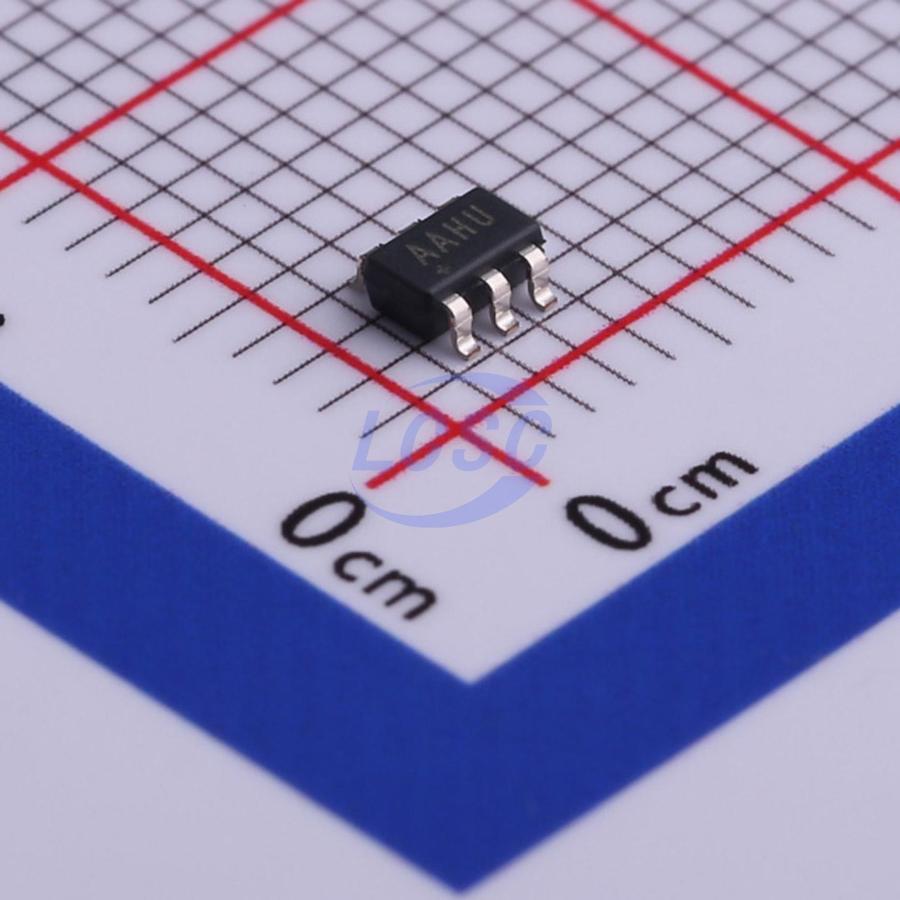

MAX8881EUT33+T
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-6
SOT-23-6ROHS3 CompliantActive
12V ultra-low lQ low-dropout linear regulator with Power OK (PoK)
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX8881EUT33+T
- Store part #
- C489626
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,953 in stock
#C489626
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.14 | ₹153.14 |
| 10+ | ₹125.74 | ₹1,257.40 |
| 30+ | ₹110.72 | ₹3,321.60 |
| 100+ | ₹93.76 | ₹9,376.00 |
| 500+ | ₹86.14 | ₹43,070.00 |
| 1,000+ | ₹82.66 | ₹82,660.00 |
1 × ₹153.14
₹153.14
excl. GST
₹180.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX8881EUT33+T
₹153.14 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 12V
- Features
- Enable control;Reverse polarity voltage protection;Short Circuit Protection;Thermal shutdown;Operating status indication;Input under-voltage protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.027 g
Overview
The MAX8880/MAX8881 are ultra-low supply current, low-dropout linear regulators, capable of delivering up to 200mA. They are designed for battery-powered applications where reverse battery protection and long battery life are critical.
Applications
- Smoke Detectors
- PDAs
- Battery-Powered Alarms
- Handy Terminals
- Remote Transmitters
- CMOS Backup Power
- Smart Battery Packs
- Real-Time Clocks
Key features
- 3.5μA Supply Current at 12V
- Reverse Battery Protection
- 2.5V to 12V Input Voltage Range
- ±1.5% Output Voltage Accuracy
- 200mA max Output Current
- 2Ω PMOS Output Device
- Short-Circuit and Thermal Overload Protection
- POK Output for Out-of-Regulation Indicator
- Fixed 1.8V, 2.5V, 3.3V, and 5V (MAX8881) Adjustable from 1.25V to 5V (MAX8880)
- Tiny 6-Pin SOT23 Package
- Thin 6-Pin TDFN Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADP3330ARTZ3.3-RL7#C116155ADI · SOT-23-6 | ADI | SOT-23-6 | On request | ₹309.33 · 0 in stock | View |
