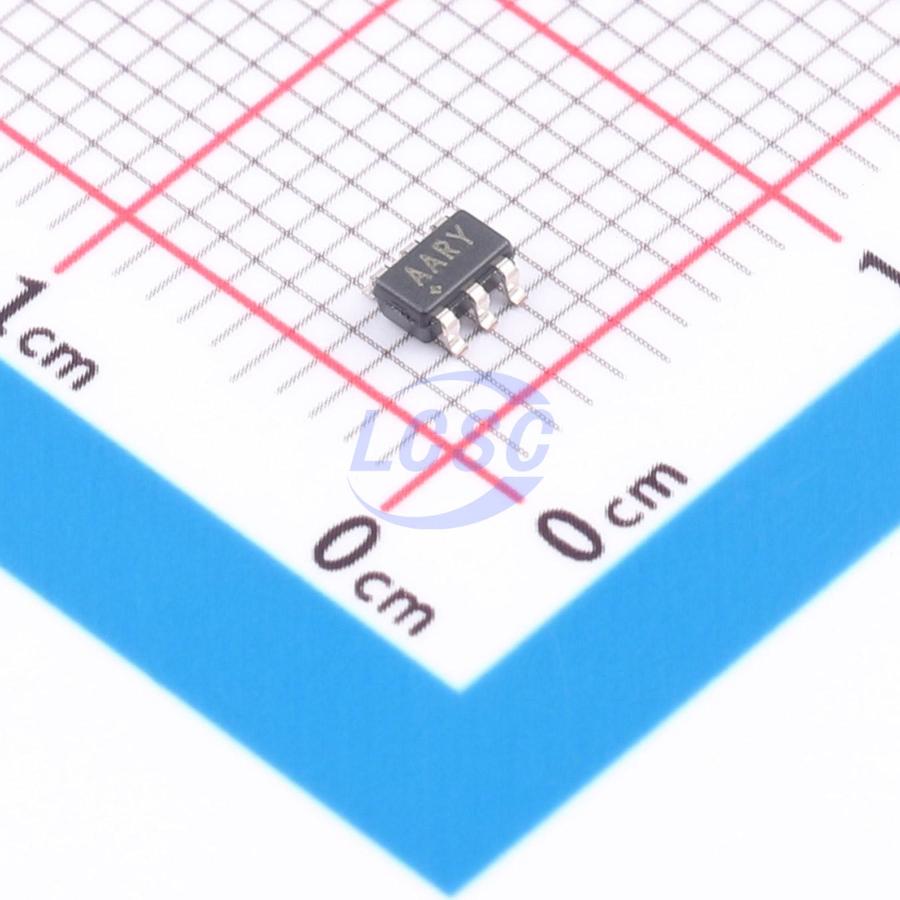

MAX8882EUTA5+T

The MAX8882/MAX8883 dual, low-noise, low-dropout linear regulators operate from a +2.5V to +6.5V input and deliver up to 160mA each of continuous current. Both versions offer low output noise and low dropout of only 72mV at 80mA. Designed with an internal P-channel MOSFET pass transistor, the MAX8882/MAX8883 maintain a low 165μA supply current (both LDOs on), independent of the load current and dropout voltage. Other features include short-circuit protection and thermal-shutdown protection. The MAX8882 has a single shutdown input and provides an external reference bypass pin to improve noise performance. The MAX8883 includes two independent logic-controlled shutdown inputs. The MAX8882/MAX8883 are both available in a miniature 6-pin SOT23 package.

Applications

• μP/DSP Core/IO Power
• Cellular and PCS Telephones
• PDAs and Palmtop Computers
• Notebook Computers
• Digital Cameras
• Hand-Held Instruments

Key features

• Two LDOs in Tiny SOT23
• Up to 160mA Output Current (each LDO)
• 40μV RMS Output Noise (MAX8882)
• 72mV Dropout at 80mA Load
• Low 165μA Operating Supply Current
• 62dB PSRR (greater than 56dB to 100kHz)
• Independent Low-Power Shutdown Controls (MAX8883)
• Thermal-Overload and Short-Circuit Protection
• Output Current Limit
