MAXIM

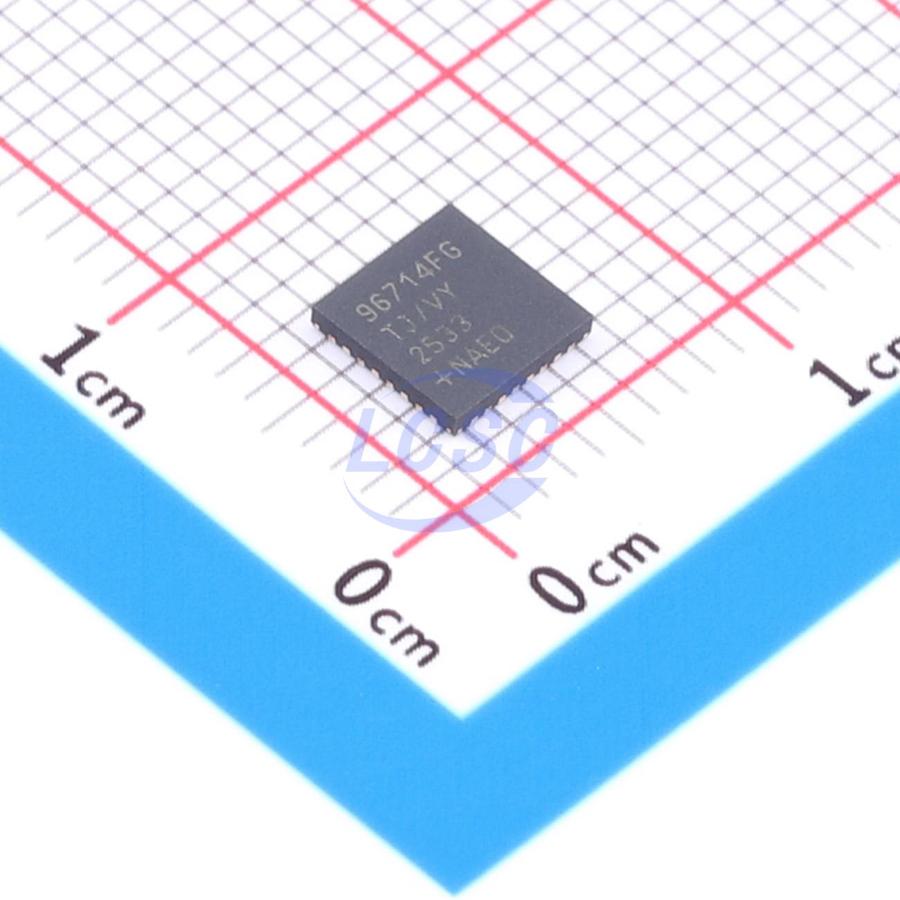

MAX96714FGTJ/VY+T

1MHz 3Gbps Deserializer 1 TQFN-32-EP(5x5) Serializers, Deserializers RoHS

TQFN-32-EP(5x5)ROHS3 CompliantActive

Manufacturer: MAXIM
Manufacturer part #: MAX96714FGTJ/VY+T
Store part #: C25969261
Package / case: TQFN-32-EP(5x5)
Category: Serializers, Deserializers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,087 in stock

#C25969261

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹1,112.42	₹1,112.42
10+	₹951.24	₹9,512.40
30+	₹853.14	₹25,594.20
100+	₹770.91	₹77,091.00

Quantity (min 1)

1 × ₹1,112.42

₹1,112.42

excl. GST

₹1,312.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX96714FGTJ/VY+T

₹1,112.42 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clock Frequency: 1MHz
Output: CSI-2
Input: GMSL
Data Rate: 3Gbps
Type: Deserializer
Number of ports: 1
Voltage - Supply: 1.14V~1.26V;1.7V~1.9V;1.7V~3.6V;950mV~1.05V
Parallel Bit Count Per Channel: 4
Features: Adaptive receive equalization;Link status monitoring
Operating Temperature: -40℃~+105℃
Control Interface: I2C

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The MAX96714/F/R deserializers convert a GMSL™2/1 input to MIPI CSI-2 output. The devices allow a simultaneously transmit bidirectional control channel while forward video transmissions are in progress. The MAX96714/F/R operate at a fixed rate of 3Gbps or 6Gbps in the forward direction and 187.5Mbps in the reverse direction. Data can be transmitted over low-cost 50Ω Coax or 100Ω STP cables that meet the GMSL2 channel specifications.

Applications

Advanced Driver Assistance Systems (ADAS)
Forward Vision Camera Systems (FVC)
Rear View Camera (RVC)
Driver-Monitor Systems (DMS)

Key features

Automotive Grade High-Speed Link
-18dB at 3GHz (6Gbps) Max Insertion Loss
-19.5dB at 1.5GHz (3Gbps) Max Insertion Loss
Auto Adapt for Changes in Channel Conditions
Operates -40°C to +105°C Ambient
Single GMSL Input Can Support up to 8MP Imagers
6/3Gbps in GMSL2 Forward Link-Rates
3.12Gbps in GMSL1 Forward Link-Rates
187.5Mbps/1Mbps (GMSL2/1) Reverse Link-Rates
High-Speed 1x4-lane MIPI Output Port, CSI-2 v1.3
MIPI D-PHY v1.2 Rated at 2.5Gbps/Lane
Polarity Flip and Data-Lane Reassignment
Supports 16 Virtual Channels
Bidirectional Reverse Channel Supports
Nine Configurable GPIOs
1 x I2C/UART Ports, up to 1MHz
2 x Pass-Through I2C/UART
Reduces BOM and Space Savings
Tiny 5mm x 5mm TQFN Standard and SideWettable
Industry’s Smallest Power over Coax (PoC) RoR for Crystal-Free Operation on Serializers
ASIL-B Compliant in GMSL2 Mode (MAX96714/F)
Supports ASIL-B(D) Decomposition (MAX96714/F)
