onsemiDatasheet (PDF)

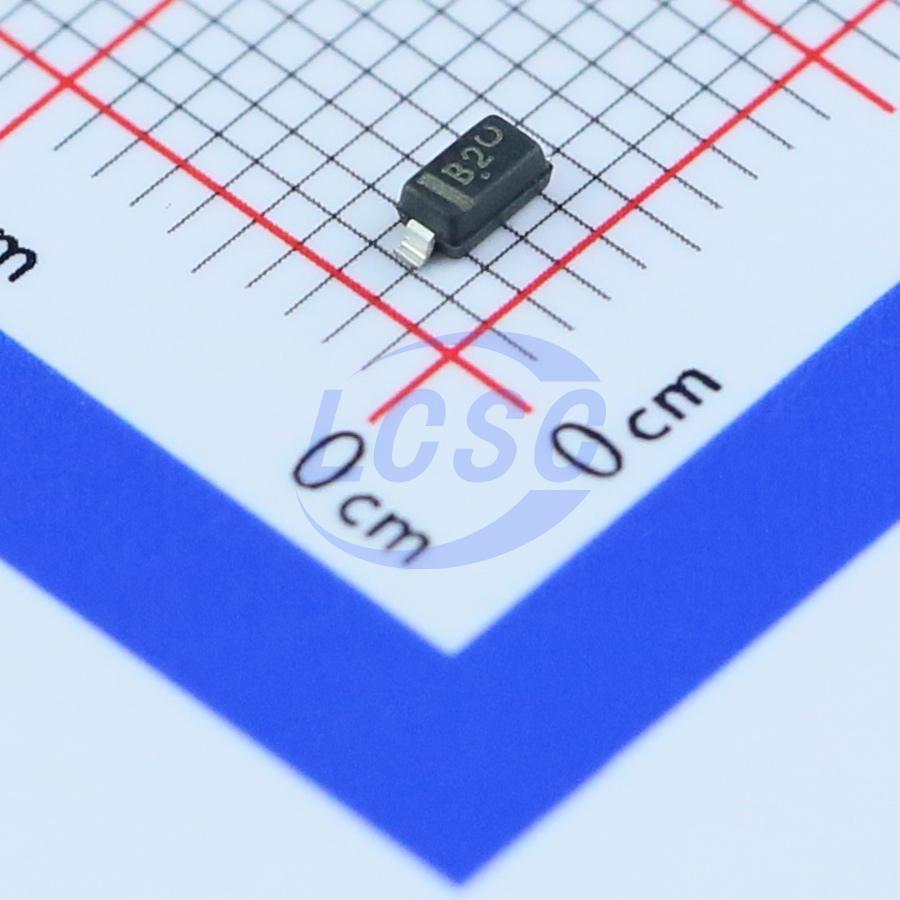

MBR0520LT1G
Diode 20V 500mA Surface Mount SOD-123
PopularSOD-123ROHS3 CompliantActive
DIODE SCHOTTKY 20V SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MBR0520LT1G
- Store part #
- C23848
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,48,585 in stock
#C23848
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.10 | ₹65.50 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹9.67 | ₹1,450.50 |
| 500+ | ₹6.34 | ₹3,170.00 |
| 3,000+ | ₹5.99 | ₹17,970.00 |
| 6,000+ | ₹5.77 | ₹34,620.00 |
5 × ₹13.10
₹65.50
excl. GST
₹77.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MBR0520LT1G
₹65.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 385mV@500mA
- Reverse Leakage Current (Ir)
- 250uA@20V
- Non-Repetitive Peak Forward Surge Current
- 5.5A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop - reverse current tradeoff. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package provides an alternative to the leadless 34 MELF style package.
Key features
- Guardring for Stress Protection
- Very Low Forward Voltage (0.38 V Max @ 0.5 A, 25℃)
- 125℃ Operating Junction Temperature
- Epoxy Meets UL 94 V - 0 @ 0.125 in
- Package Designed for Optimal Automated Board Assembly
- AEC - Q101 Qualified and PPAP Capable
- SBR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- All Packages are Pb - Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBR80520LT1G#C150065onsemi · SOD-123 | onsemi | SOD-123 | 3,105 | ₹19.12 · 3,105 in stock | View |
 | B0520LW-7-F#C155367DIODES · SOD-123 | DIODES | SOD-123 | 49,925 | ₹18.73 · 49,925 in stock | View |
 | MBR0520LT3G#C165467onsemi · SOD-123 | onsemi | SOD-123 | 5,770 | ₹17.93 · 5,770 in stock | View |
 | B0520W#C7428000NH · SOD-123 | NH | SOD-123 | 1,760 | ₹3.55 · 1,760 in stock | View |
 | LMBR0520T1G#C78289LRC · SOD-123 | LRC | SOD-123 | 5,980 | ₹8.68 · 5,980 in stock | View |
