onsemiDatasheet (PDF)

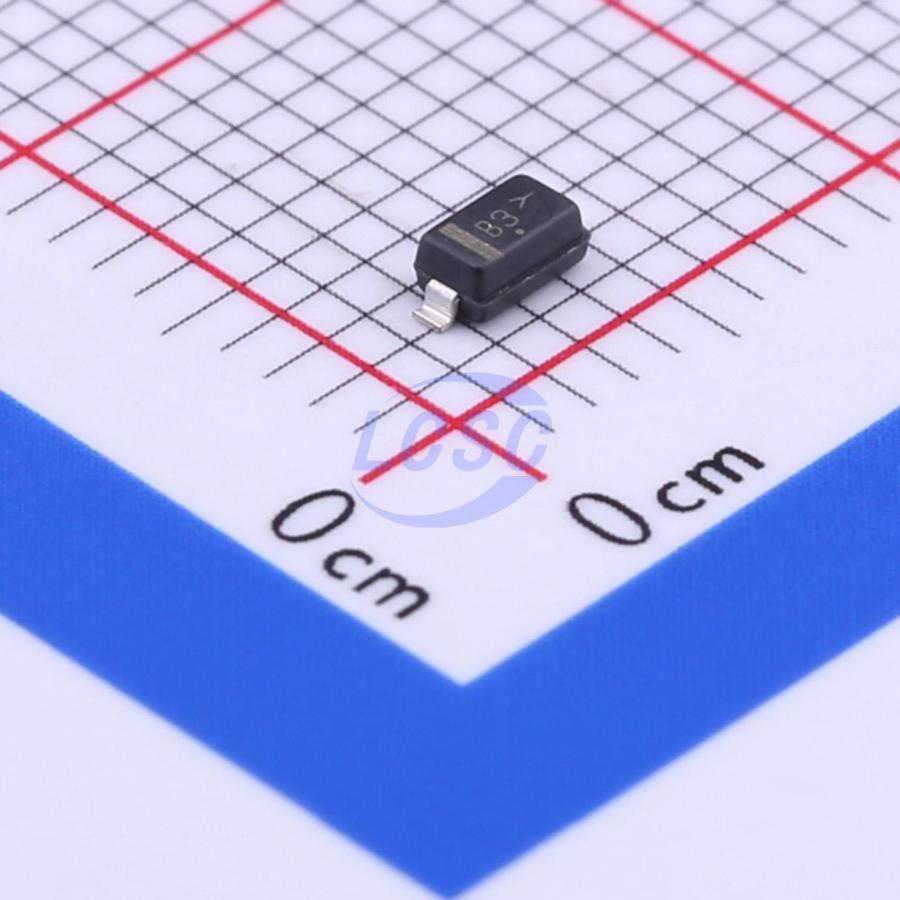

MBR0530T1G
Diode 30V 500mA Surface Mount SOD-123
PopularSOD-123ROHS3 CompliantActive
DIODE SCHOTTKY 30V SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MBR0530T1G
- Store part #
- C82046
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,25,010 in stock
#C82046
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.17 | ₹91.70 |
| 100+ | ₹7.18 | ₹718.00 |
| 300+ | ₹6.19 | ₹1,857.00 |
| 3,000+ | ₹5.32 | ₹15,960.00 |
| 6,000+ | ₹4.72 | ₹28,320.00 |
| 9,000+ | ₹4.43 | ₹39,870.00 |
10 × ₹9.17
₹91.70
excl. GST
₹108.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MBR0530T1G
₹91.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 430mV@500mA
- Reverse Leakage Current (Ir)
- 130uA@30V
- Non-Repetitive Peak Forward Surge Current
- 5.5A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The MBR0530 uses the Schottky Barrier principle with a large area metal-to-silicon power diode. Ideally suited for low voltage, high frequency rectification or as-free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package also provides an easy-to-work with alternative to leadless 34 package style.
Key features
- Guardring for Stress Protection
- Low Forward Voltage
- 125℃ Operating Junction Temperature
- Epoxy Meets UL 94, V-0 @ 0.125 in
- Package Designed for Optimal Automated Board Assembly
- NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
- These Devices are Pb-Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBR0530T3G#C236079onsemi · SOD-123 | onsemi | SOD-123 | 6,490 | ₹11.77 · 6,490 in stock | View |
 | NRVB0530T1G#C513043onsemi · SOD-123 | onsemi | SOD-123 | 60 | ₹35.96 · 60 in stock | View |
 | PMEG3005EGWXF#C52747980FUXINSEMI · SOD-123 | FUXINSEMI | SOD-123 | 2,220 | ₹3.55 · 2,220 in stock | View |
 | B0530WA#C53100354TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 3,000 | ₹2.00 · 3,000 in stock | View |
 | B0530W#C53100355TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,350 | ₹1.98 · 2,350 in stock | View |
