HXY MOSFETDatasheet (PDF)

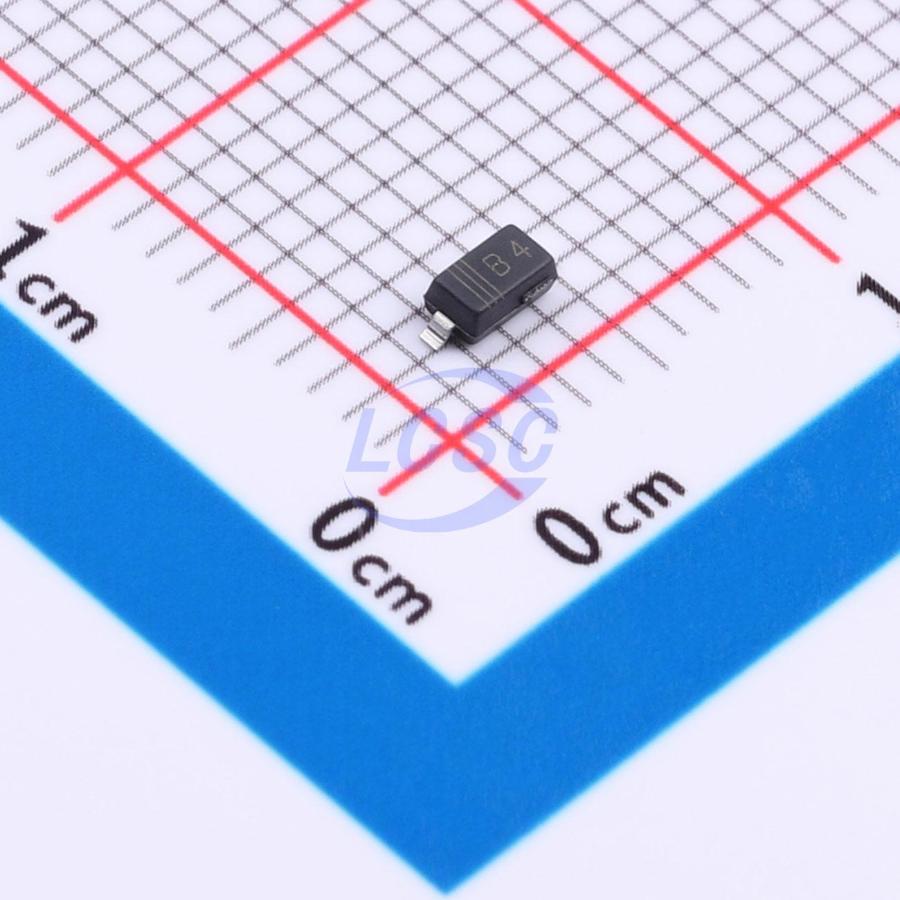

MBR0540-HXY
40V 1 Independent 550mV@500mA 500mA SOD-123 Single Diodes
SOD-123RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- MBR0540-HXY
- Store part #
- C52754441
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C52754441
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.92 | ₹58.40 |
| 200+ | ₹2.32 | ₹464.00 |
| 600+ | ₹1.98 | ₹1,188.00 |
| 3,000+ | ₹1.79 | ₹5,370.00 |
| 9,000+ | ₹1.61 | ₹14,490.00 |
| 21,000+ | ₹1.51 | ₹31,710.00 |
20 × ₹2.92
₹58.40
excl. GST
₹68.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MBR0540-HXY
₹58.40 for 20 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+125℃
- Voltage - Forward(Vf@If)
- 550mV@500mA
- Reverse Leakage Current (Ir)
- 80uA@40V
- Non-Repetitive Peak Forward Surge Current
- 5.5A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Key features
- Average rectified output current: I_O = 500 mA
- Power dissipation: 410 mW
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NRVB0540T1G-HXY#C52754442HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 175 | ₹14.83 · 175 in stock | View |
 | STPS0540Z-HXY#C52754443HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 170 | ₹7.42 · 170 in stock | View |
 | CMHSH5-4-HXY#C52754569HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 40 | ₹31.00 · 40 in stock | View |
 | NRVB0540T3G-HXY#C52754570HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 180 | ₹23.39 · 180 in stock | View |
 | MBR140ESFT1G-HXY#C52754445HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 175 | ₹19.66 · 175 in stock | View |
