onsemiDatasheet (PDF)

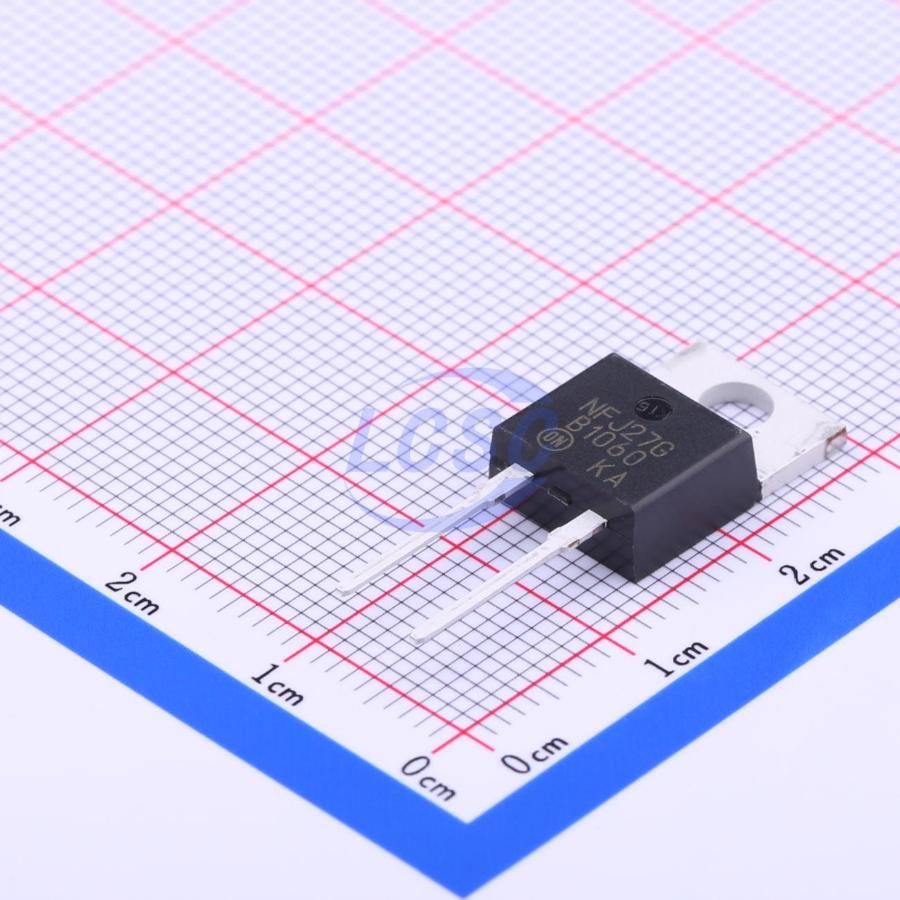

MBR1060G
Diode 60V 10A Through Hole TO-220AC-2
TO-220AC-2ROHS3 CompliantActive
DIODE SCHOTTKY 60V TO-220AC-2
- Manufacturer
- onsemi
- Manufacturer part #
- MBR1060G
- Store part #
- C89052
- Package / case
- TO-220AC-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C89052
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.76 | ₹162.76 |
| 10+ | ₹134.95 | ₹1,349.50 |
| 50+ | ₹119.52 | ₹5,976.00 |
| 100+ | ₹102.14 | ₹10,214.00 |
| 500+ | ₹94.53 | ₹47,265.00 |
| 1,000+ | ₹91.05 | ₹91,050.00 |
1 × ₹162.76
₹162.76
excl. GST
₹192.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MBR1060G
₹162.76 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 800mV@10A
- Reverse Leakage Current (Ir)
- 100uA@60V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
Key features
- Guard-Ring for Stress Protection
- Low Forward Voltage
- 175℃ Operating Junction Temperature
- Epoxy Meets UL 94 V-0 @ 0.125 in
- Low Power Loss/High Efficiency
- High Surge Capacity
- Low Stored Charge Majority Carrier Conduction
- Pb-Free Packages are Available*
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MBR10100G#C26327onsemi · TO-220AC-2 | onsemi | TO-220AC-2 | 88 | ₹167.33 · 88 in stock | View | |
 | MBR10100-E3/4W#C5767963VISHAY · TO-220AC | VISHAY | TO-220AC | 6 | ₹143.43 · 6 in stock | View |
 | MBR10200L#C5375274XCH · TO-220AC | XCH | TO-220AC | 100 | ₹33.86 · 100 in stock | View |
 | MBR1060#C260256SMC · TO-220AC-2 | SMC | TO-220AC-2 | 95 | ₹56.07 · 95 in stock | View |
 | SB1060_T0_00001#C2962204PANJIT · TO-220AC | PANJIT | TO-220AC | 67 | ₹73.24 · 67 in stock | View |
