onsemiDatasheet (PDF)

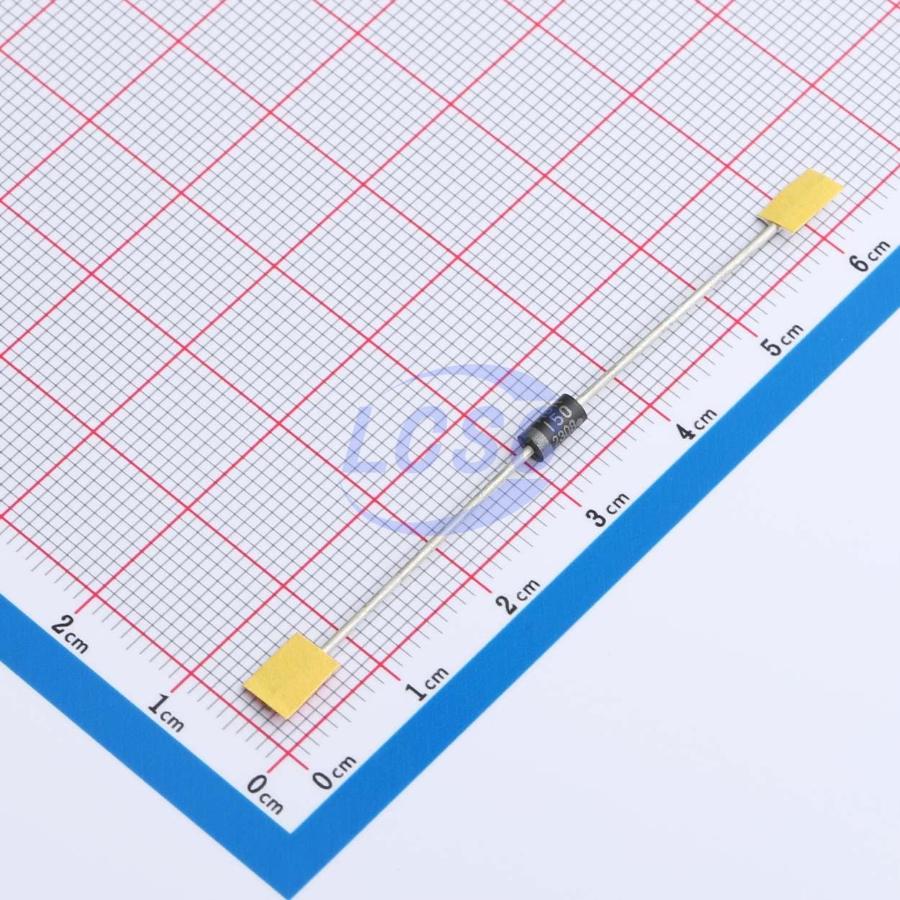

MBR150RLG
Diode 50V 1A Through Hole DO-41
DO-41ROHS3 CompliantActive
DIODE SCHOTTKY 50V DO-41
- Manufacturer
- onsemi
- Manufacturer part #
- MBR150RLG
- Store part #
- C895484
- Package / case
- DO-41
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C895484
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹37.39 | ₹37.39 |
| 10+ | ₹36.51 | ₹365.10 |
| 30+ | ₹36.08 | ₹1,082.40 |
| 100+ | ₹35.43 | ₹3,543.00 |
1 × ₹37.39
₹37.39
excl. GST
₹44.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
MBR150RLG
₹37.39 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1V@3A
- Reverse Leakage Current (Ir)
- 500uA@50V
- Non-Repetitive Peak Forward Surge Current
- 25A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.389 g
Overview
The MBR150/160 series employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlap contact. Ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free wheeling diodes, and polarity protection diodes.
Applications
- low-voltage, high-frequency inverters
- free wheeling diodes
- polarity protection diodes
Key features
- Low Reverse Current
- Low Stored Charge, Majority Carrier Conduction
- Low Power Loss/High Efficiency
- Highly Stable Oxide Passivated Junction
- These are Pb-Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SB190-T#C7071210DIODES · DO-41 | DIODES | DO-41 | 20 | ₹18.11 · 20 in stock | View |
 | MBR160G#C480777onsemi · DO-204AL | onsemi | DO-204AL | 200 | ₹58.98 · 200 in stock | View |
 | SR1150#C216111FMS(Formosa Microsemi) · DO-41 | FMS(Formosa Microsemi) | DO-41 | 40 | ₹3.94 · 40 in stock | View |
 | SR160#C7544977LangJie · DO-41 | LangJie | DO-41 | 5,080 | ₹4.00 · 5,080 in stock | View |
 | SR1150#C5122120LGE · DO-41 | LGE | DO-41 | 940 | ₹5.60 · 940 in stock | View |
